Philips 43PUS6412/05 - Page 27

6.4 Front-End Analogue and DVB-T, DVB-C, DVB-S;ISDB-T reception
6.4.1 DVB-C part
The Front-End for analogue tuner consist of the following key components:
• TUNER EUROPE TDSY-G480D
• TUNER EUROPE TDQS-A701F
• SCALER MT5596UGIJ HSFBGA-899

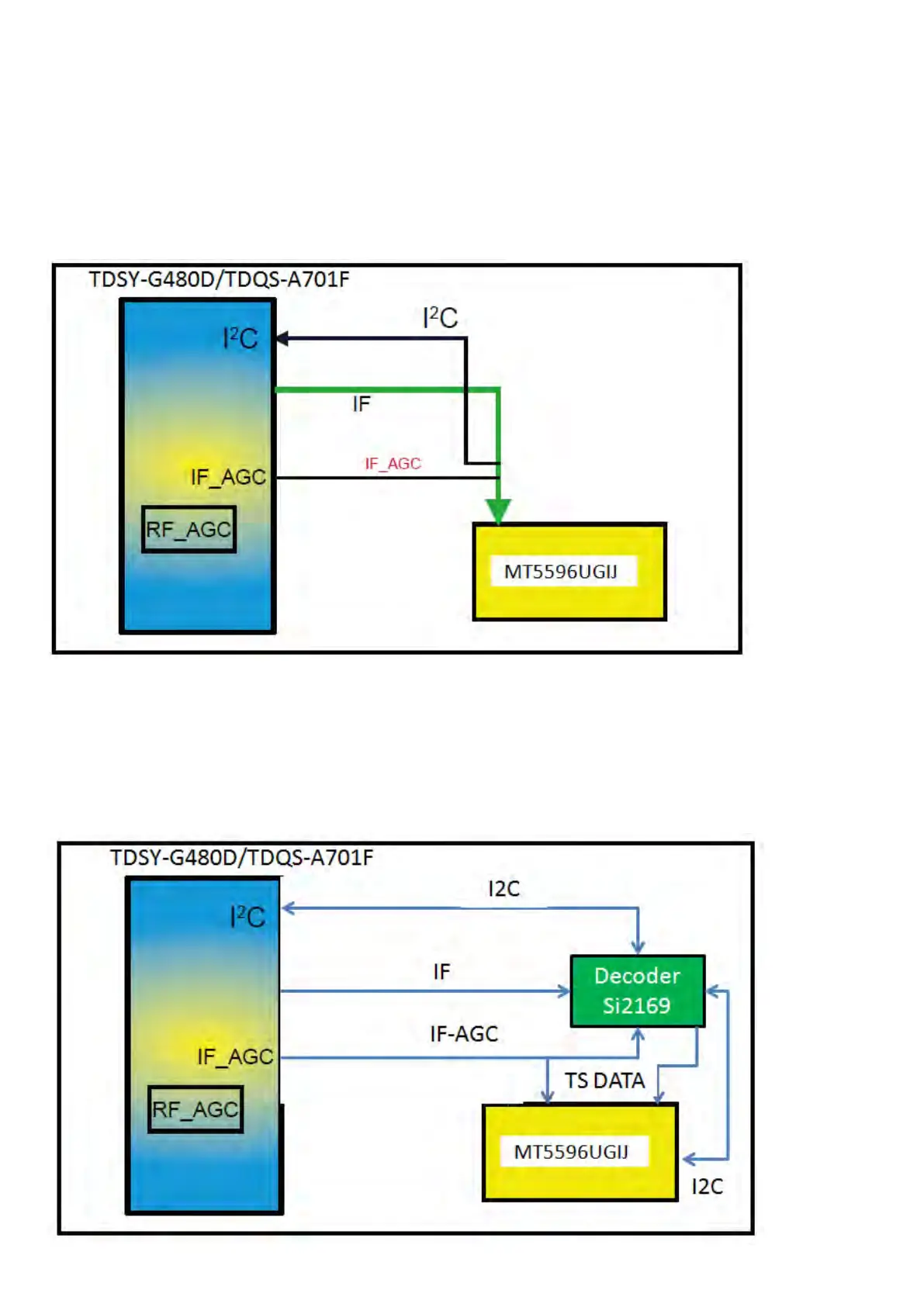

Below find a block diagram of the front-end application for DVB-C part.
6.4.2 DTB-T/T2 part
The Front-End for DVT part consist of the following key components:
• TUNER EUROPE TDSY-G480D
• TUNER EUROPE TDQS-A701F
• SCALER MT5596UGIJ HSFBGA-899
• DEMODULATOR Si2169-C60-GMR QFN-48
Below find a block diagram of the front-end application for DTV part.
