6.4.3 DTB-S2 part
The Front-End for DVT part consist of the following key components:
• TUNER EUROPE TDSY-G480D
• TUNER EUROPE TDQS-A701F
• SCALER MT5596UGIJ HSFBGA-899
• DEMODULATOR Si2169-C60-GMR QFN-48

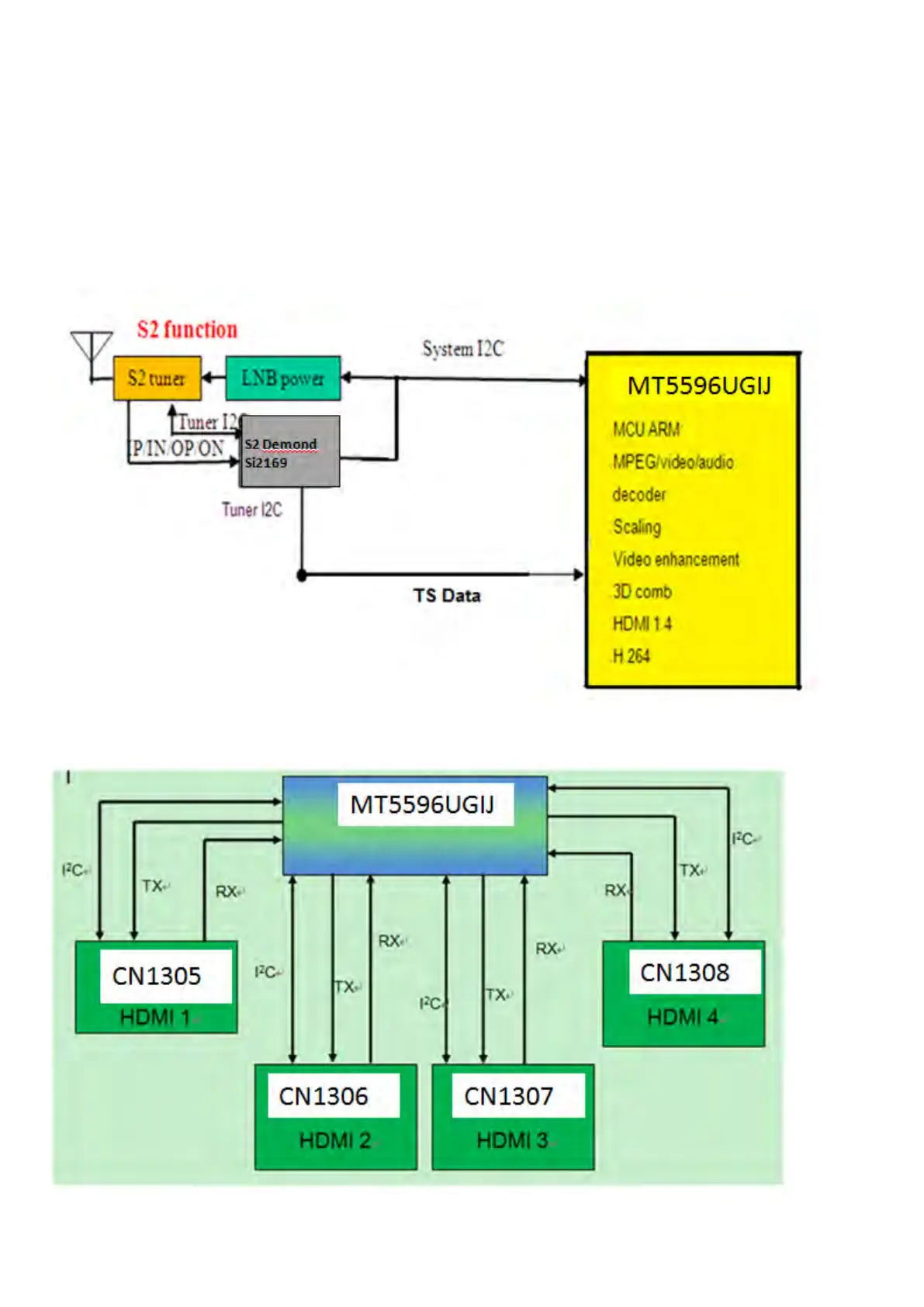

Below find a block diagram of the front-end application for DTV part.
6.5 HDMI
Refer to below for the application.
