26
g AV3 S-VIDEO (back): S-Video (back) input connector to be used
with Audio L/R connectors for camcorder, game console, etc.
When you use the S-Video (back) for video signals, do not use
Composite video (back) for video signals.
h HDMI 1/2/3: Digital audio and video input from high defi nition
digital devices such as Blu-ray players.
Side connectors
a Stereo audio output to headphones or earphones.
b Composite video: Video input for analog devices such as DVD,
camcorder, game console, etc. To be used with audio input.
c S-Video (side) to be used with Audio L/R connectors for
camcorder, game console, etc. When you use the S-Video (side)
for video signals, do not use the Composite video (side) input for
video signals.
d HDMI (side): Digital audio and video input from high defi nition
digital devices such as Blu-ray players.
e Data input from USB storage devices.
HDMI 4
S-VIDEO
VIDEO
L
AUDIO
R
USB
1
2
3
4
5
9 Connect devices
This section describes how to connect various devices with different
connectors and supplements examples provided in the Quick Start.
Caution
• Disconnect the power cord before connecting devices.
Note
• Different types of connectors may be used to connect a device to your TV, depending
on availability and your needs.

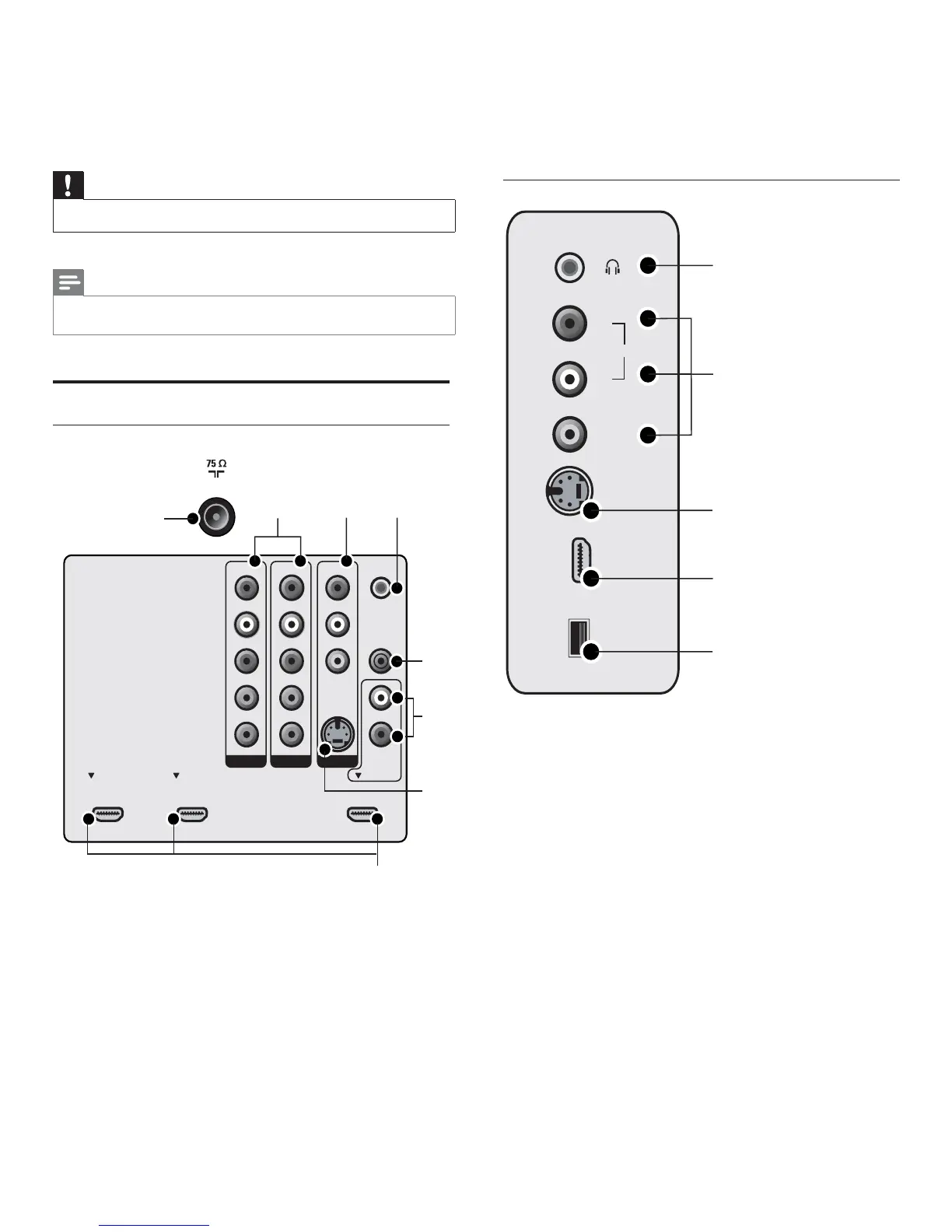

Connection overview
Back connectors
a Signal input from an antenna, cable or satellite.
b AV1 and AV2 : Video input from analog devices such as DVD,
receiver, game console, etc. This connector is used with audio
input.
c AV3 Composite video (back): Video input for analog devices such
as DVD, camcorder, game console, etc. To be used with audio
input.
d For use by service personnel only.
e Digital audio output to home theaters and other digital audio
systems.
f Audio input for HDMI3.
SERV. U
SPDIF
OUT
VIDEO
S-VIDEO
DVI AUDIO
IN
HDMI 3HDMI 1 HDMI 2
AV 3AV 1 AV 2
Y
Pb
Pr
L
R
L
R
L
R
Y
Pb
Pr
L
R
TV ANTENNA
5
6
7
234
1
8
EN
