8. Connect devices

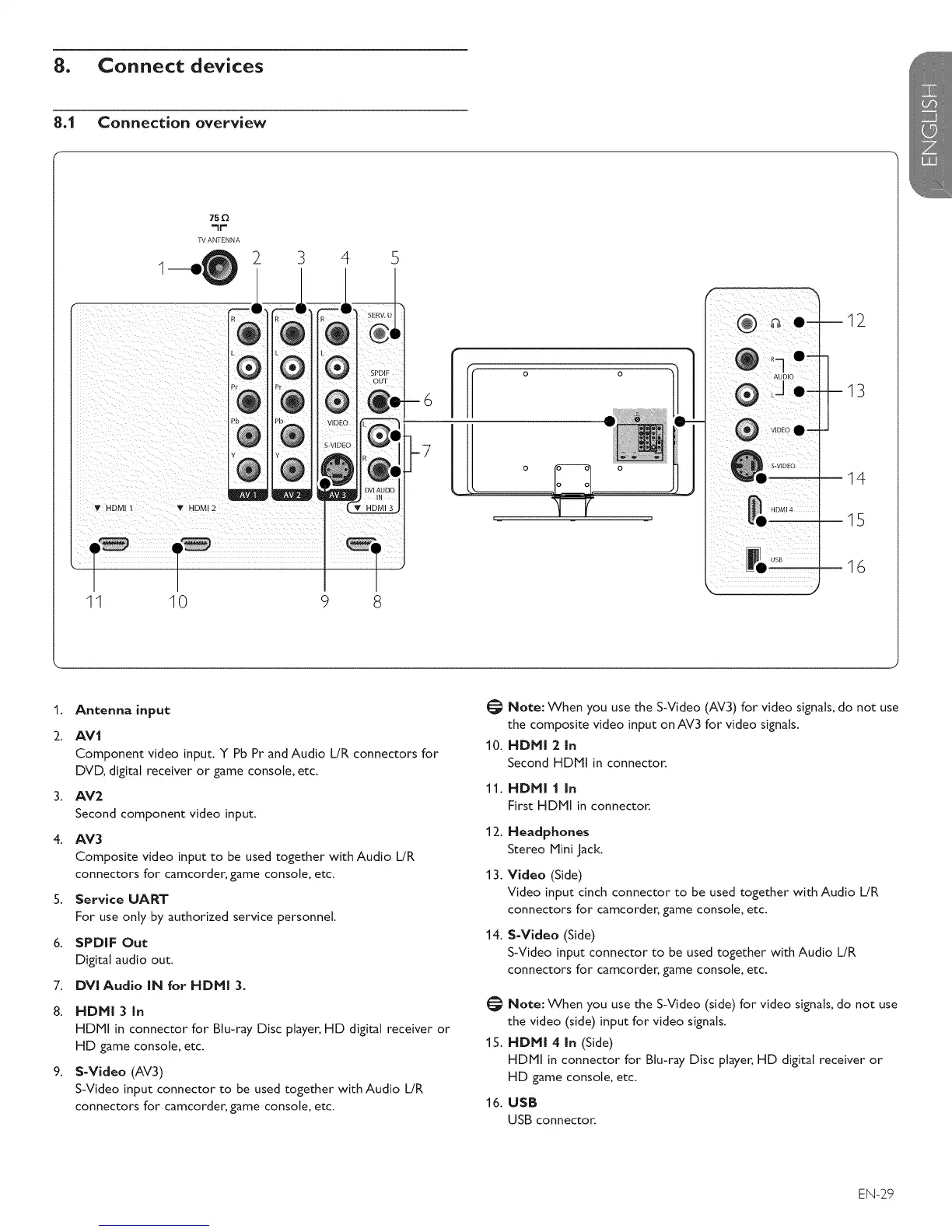

8.1 Connection overview
f
V HDMI 1
75Q
IV ANTENNA
1_ 0 2
@
|
HDMI 2
=qlq
LO
Eg
11 10
5
19_
13
14
15
16
1. Antenna input
2. AV1
Component video input. Y Pb Pr and Audio L/P, connectors for
DVD, digital receiver or game console, etc.
3. AV2
Second component video input.
4. AV3
Composite video input to be used together with Audio UP,
connectors for camcorder, game console, etc.
5. Service UART
For use only by authorized service personnel.
6. SPDIF Out
Digital audio out.
7. DV! Audio IN for HDM! 3.
8. HDMI 3 In
HDMI in connector for Blu-ray Disc player, HD digital receiver or
HD game console, etc.
9. S-Video (AV3)
S-Video input connector to be used together with Audio L/P,
connectors for camcorder, game console, etc.
@ Note: When you use the S-Video (AV3) for video signals, do not use
the composite video input on AV3 for video signals.
10. HDM| 2 in
Second HDbll in connector.
11. HDMil In
First HDbll in connector.
12.
13.
14.
Headphones
Stereo Mini Jack.
Video (Side)
Video input cinch connector to be used together with Audio L/P,
connectors for camcorder, game console, etc.
S-Video (Side)
S-Video input connector to be used together with Audio L/P,
connectors for camcorder, game console, etc.
Note: When you use the S-Video (side) for video signals, do not use
the video (side) input for video signals.
15. HDMI 4 In (Side)
HDMI in connector for Blu-ray Disc player, HD digital receiver or
HD game console, etc.
16. USB
USB connector.
