Circuit Descriptions
EN 22 TPS15.3A LA7.
2015-Oct-23
back to
div.table
7.5 HDMI
Refer to figures 7-7 HDMI input configuration for the
application.

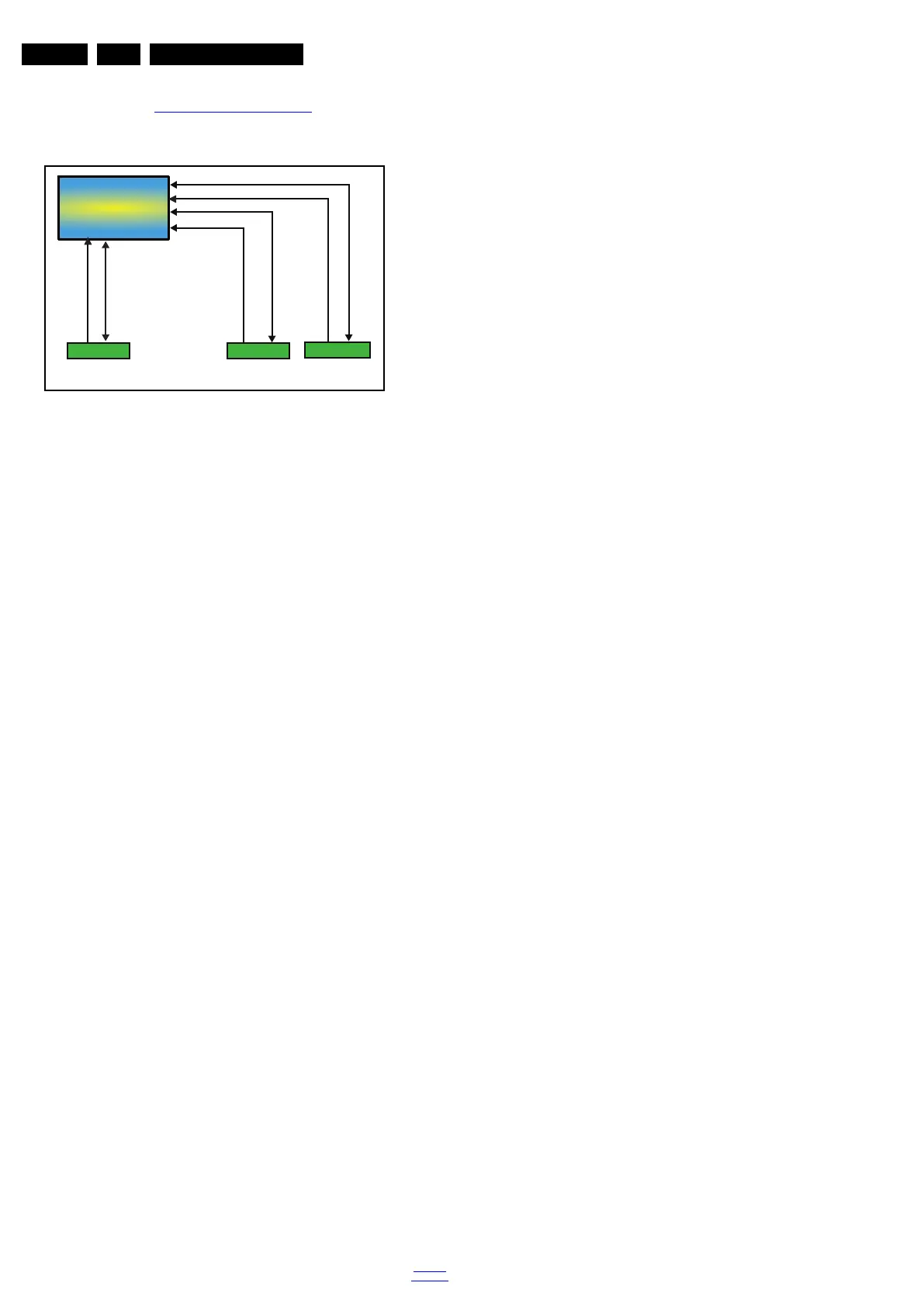

Figure 7-7 HDMI input configuration
The HDMI connector has the following specifications:
• +5V detection mechanism
• Stable clock detection mechanism
• Integrated EDID
• HPD control
• Sync detection
• TMDS output control
7.6 Video and Audio Processing - MSD8590QV
The MSD8590QV is the main audio and video processor (or
System-on-Chip) for this platform. It has the following features:
• High performance Multi-core CPU and GPU
• DVB-T/ DVB-C Front-End Demodulator
• Built-in Frame Rate Converter
• 3D Formatter Engine
• A Multi-Standard A/V Format Decoder
• The MACE-PROUC Video Processor
• Home Theater Sound Processor
• Internet and Variety of Connectivity Support
• Peripheral and Power Management
The MSD8590QV combines front-end video processing
functions, such as NTSC/PAL/SECAM Video Decoder.
MSD8590QV is a Powerful ARM-based Smart TV solution that
supports dual 8/10bit LVDS output, channel decoding, MPEG
decoding, 3D formatter, and media-center functionality
enabled by a high performance AV CODEC and CPU. The
MSD8590QV hosts the most advanced picture processing
engine, MStarACE-PROUC, for all the Experts in various TV
video quality tuning fields to develop the state-of-the-art TV and
DTV system. By the use of AV decoder capable of decoding a
plethora of high definition content with Ethernet, USB 2.0
connectivity and a powerful CPU, an MSD8590QV based
system can provide a high quality media-center experience.
19980_206.eps
MSD8590QV
HDMI1
HDMI SIDE
HDMI SIDE
CN501
CN507
CN506
RX
RX
I2C
I2C
I2C
RX
To Next Page
