3.3.4 AmbiLight Panel
1. Gently release the clamps and unplug the two connectors [5] that secure the ambilight panels. Release the clips from the FFC connector that connect
with the keyboard [4].
2. Lift the AmbiLight panel from the rear cover. Make sure that wires and flat foils are not damaged while lifting the ambilight panel from the rear cover.

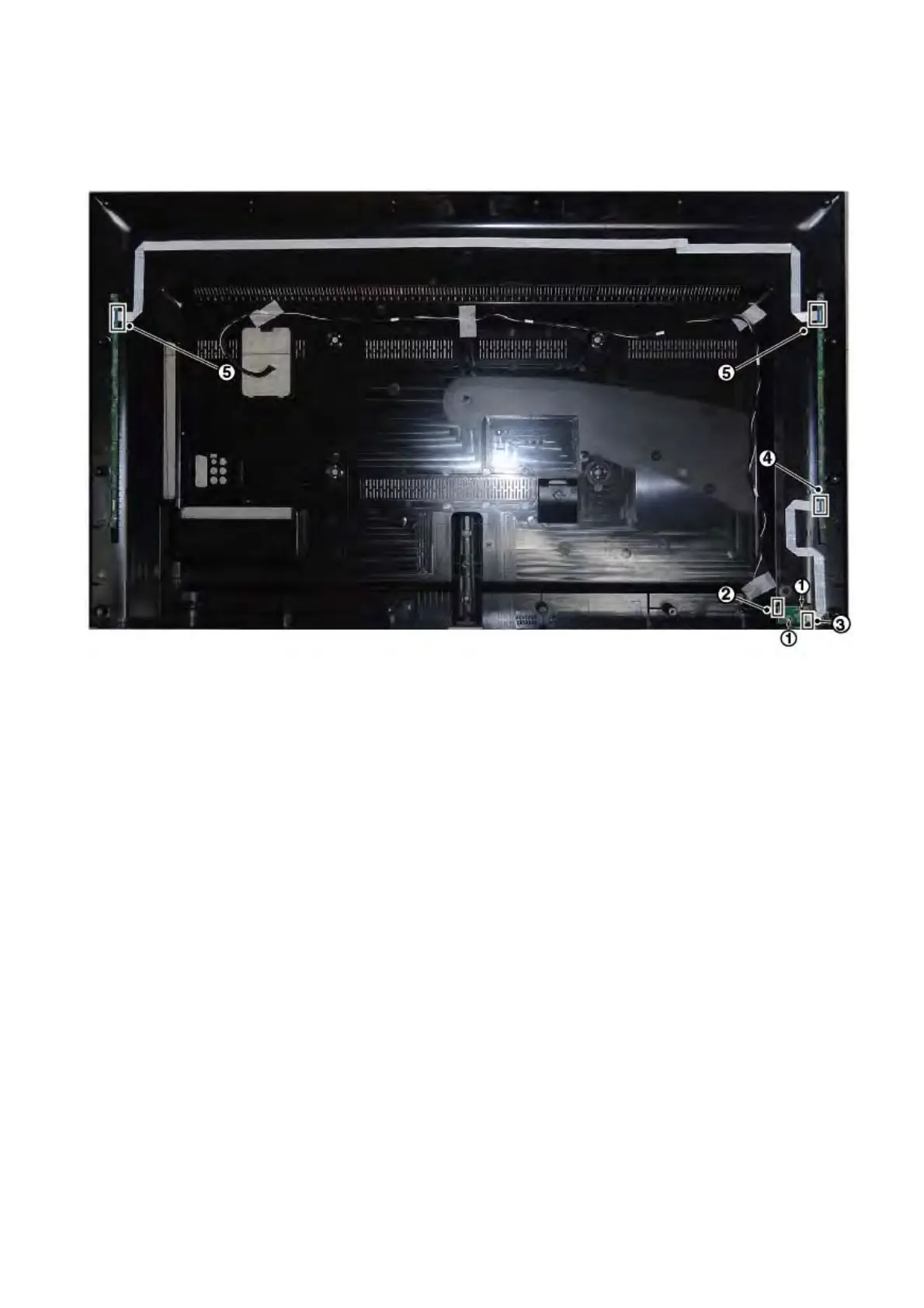

Ambilight and Keyboard removal
3.3.5 Keyboard Control Unit
1. Release the connectors [2] and [3] from the keyboard control panel.
2. Remove all the fixation screws from the keyboard control panel [1] and take it out from the Back cover.
When defective, replace the whole unit.
3.3.6 Small Signal Board (SSB)
Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the
SSB.
1. Release the clips from the LVDS connector that connect with the SSB[1].
Caution: be careful, as these are very fragile connectors!
4. Unplug all other connectors [2] .
3. Remove all the fixation screws from the SSB [3].
4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket.
