3.3.7 Power Supply Unit (PSU)
Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the
PSU.

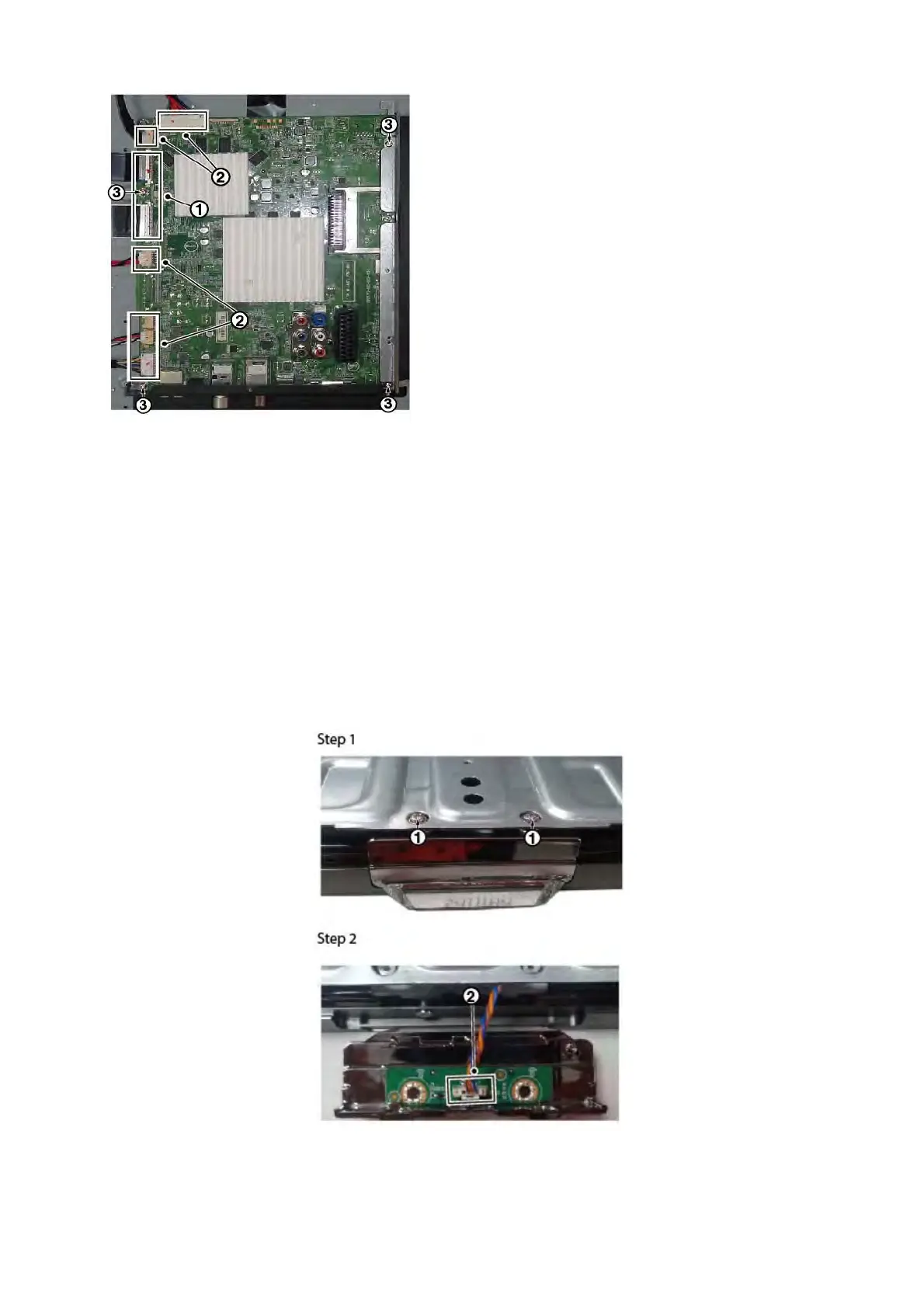

1. Gently unplug all connectors from the PSU.
5. Remove all fixation screws from the PSU.
3. The PSU can be taken out of the set now.
3.3.8 LED Logo Board
1. Remove the fixation screws [1] from the bracket, pull out the assy from the set.
2. Carefully Releas the cover secured by clips, then unplug the connector [2] from the LED Logo board. The LED Logo board can now be lifted and taken
out from the cover.
