MXL661
6.5 HDMI

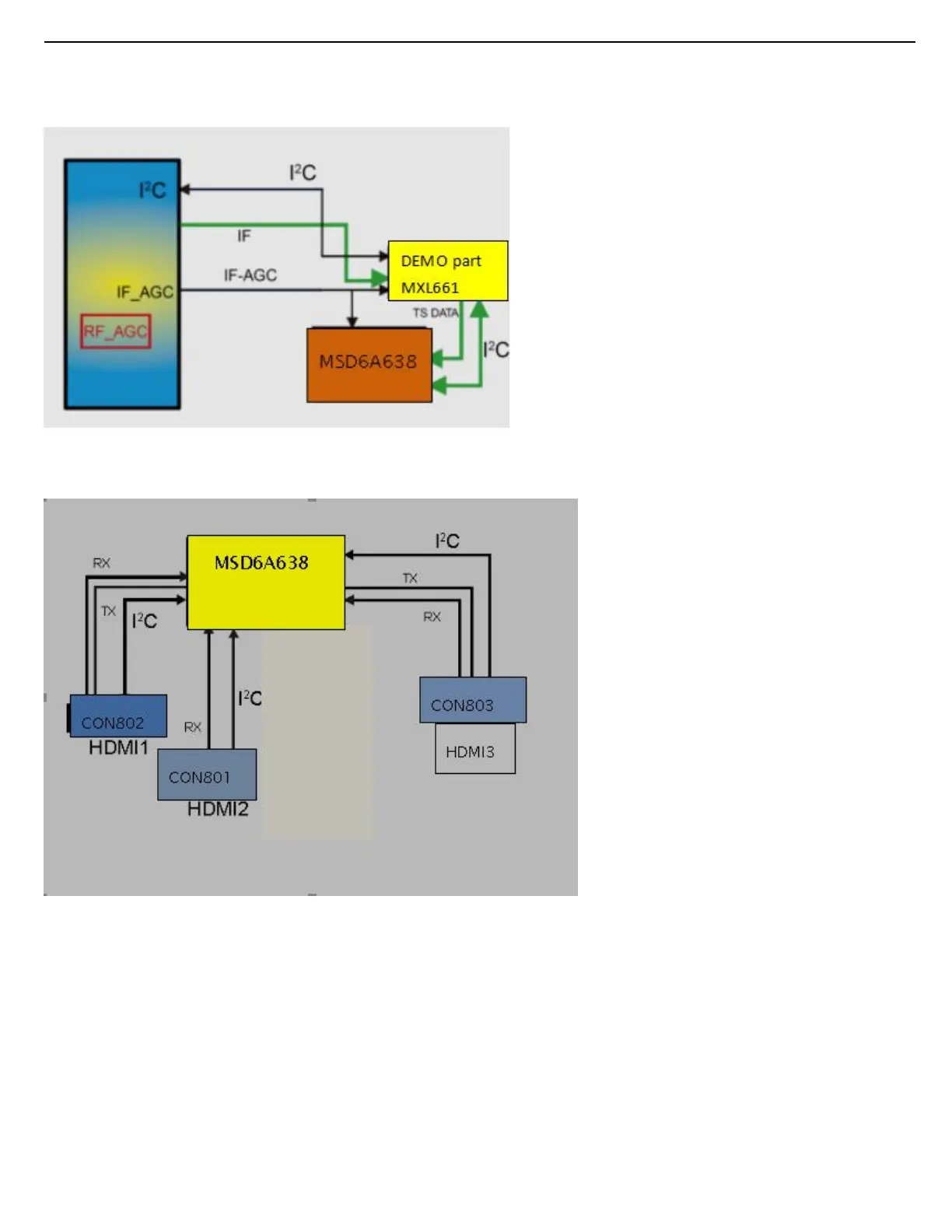

Refer to below for the application.
The following HDMI connector can be used:
• HDMI 1: HDMI input ( TV digital interface support
• HDMI 2: HDMI input ( TV digital interface support HDCP)
HDMI3/HDCP1.3) with digital audio/PC DVI input/MHL/CEC
with digital audio/PC DVI input/CEC
• +5V detection mechanism
• Stable clock detection mechanism
• HPD control
• Sync detection
• TMDS output control
• CEC control
• ARC control
• MHL control
