6. Circuit Descriptions
6.1 The 6002S is a new chassis launched in AP in 2016. The whole range is covered by MSD6A638 platform. The major deltas versus its
predecessor support DVB-C; DVB-T2, with also USB3.0,WIFI/multi-media, Video out
The 6002S chassis comes with the following stylings:
 series 43PUT6002 /56
6.1.1 Implementation
Key components of this chassis are:
 SCALER MSD6A638
 EMMC THGBMDG5D1LBAIT 4GB FBGA
 TUNER EUROPE MXL661

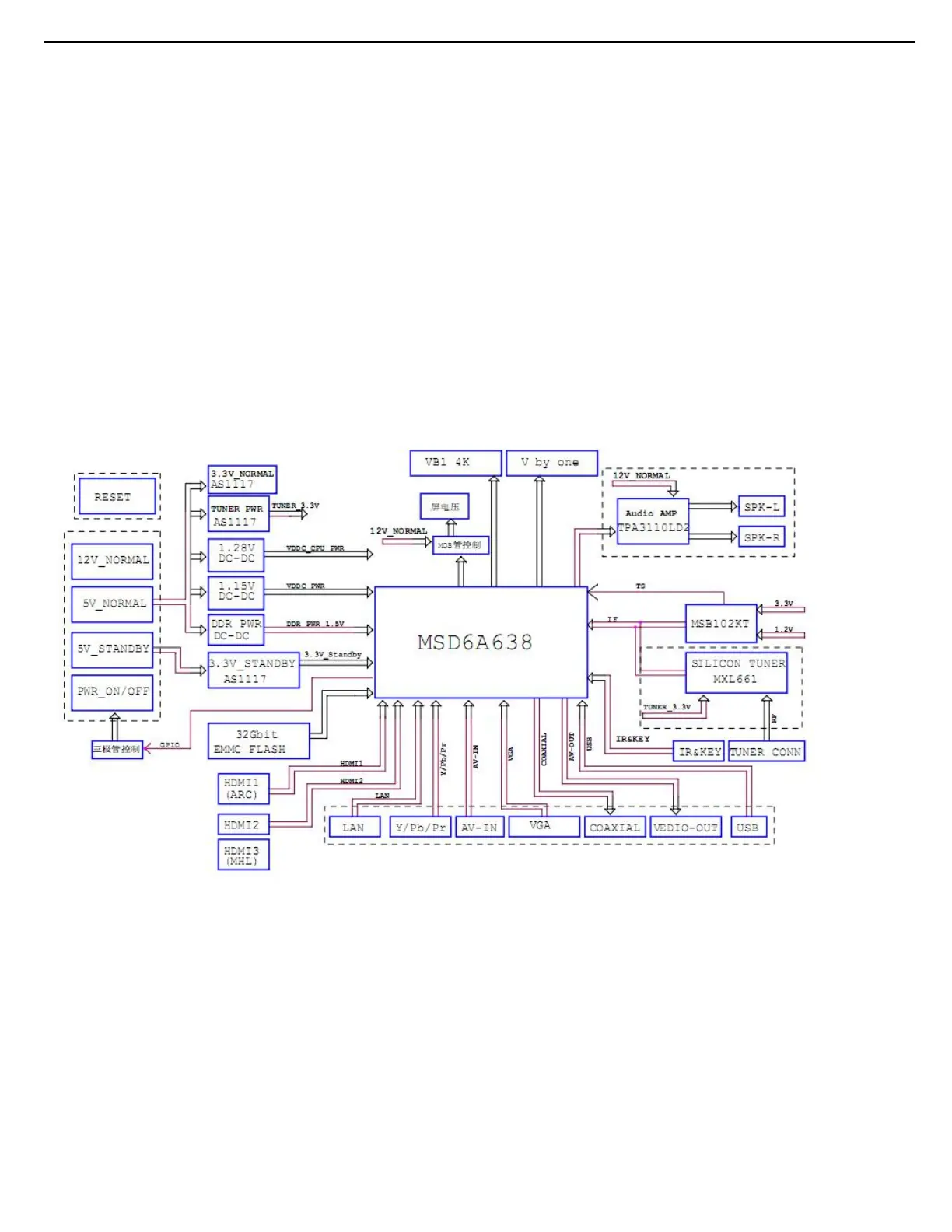

6.1.2 Block diagram
