3. Mechanical Instructions
3.1 Cable dressing
Serial no part description function
1 Back light wire Connect to CN3
2 Power wire Connect to PCN1
3 LVDS wire J455 to T-CON board (CN2)
4 Speaker wire CON203 to speaker (yellow black wire)
5 Speaker wire C0N201 to speaker (red black wire)
6 two-terminal wire CN103 to IR board&LED
7 Three port line
C0N5、CN1、CN102 to control back light
8 Supply line
CON4、CN101 to supply main board
9 WIFI line CN207 to WIFI board

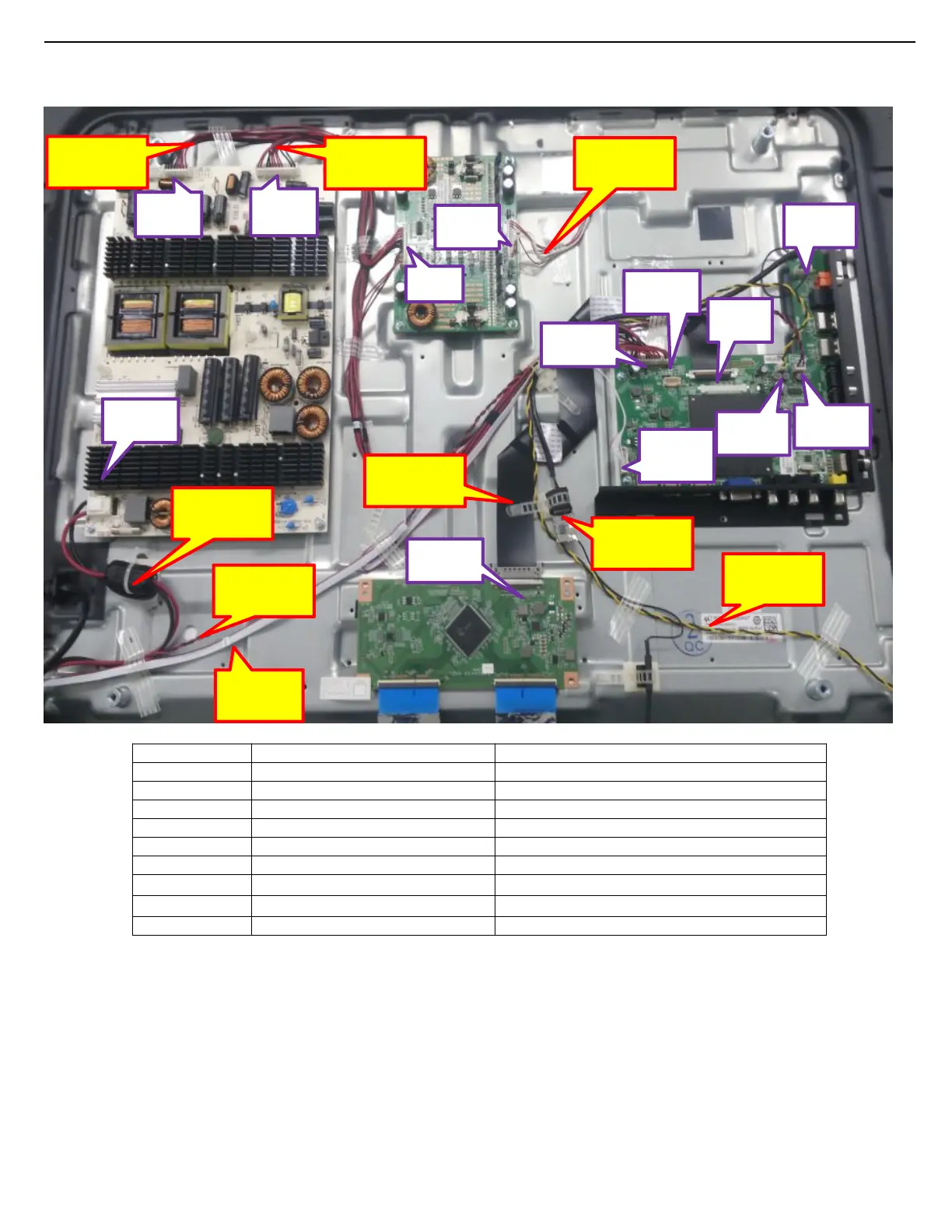

Cable dressing( 43" 6002 series)
3.2 Assembly/Panel Removal
3.2.1 Stand removal
1. Remove the fixation screws [1] 4pcs, that secure the stand
2. Take the stand bracket out from the set.
2
6
CN101
8
PCN1
J455
5
CN1
7
4
1
CN207
3
C0N4
CN103
9
CN201
CN203
CN2
CN3
CON5
CN102
