3.2.2 Disassemble back cover

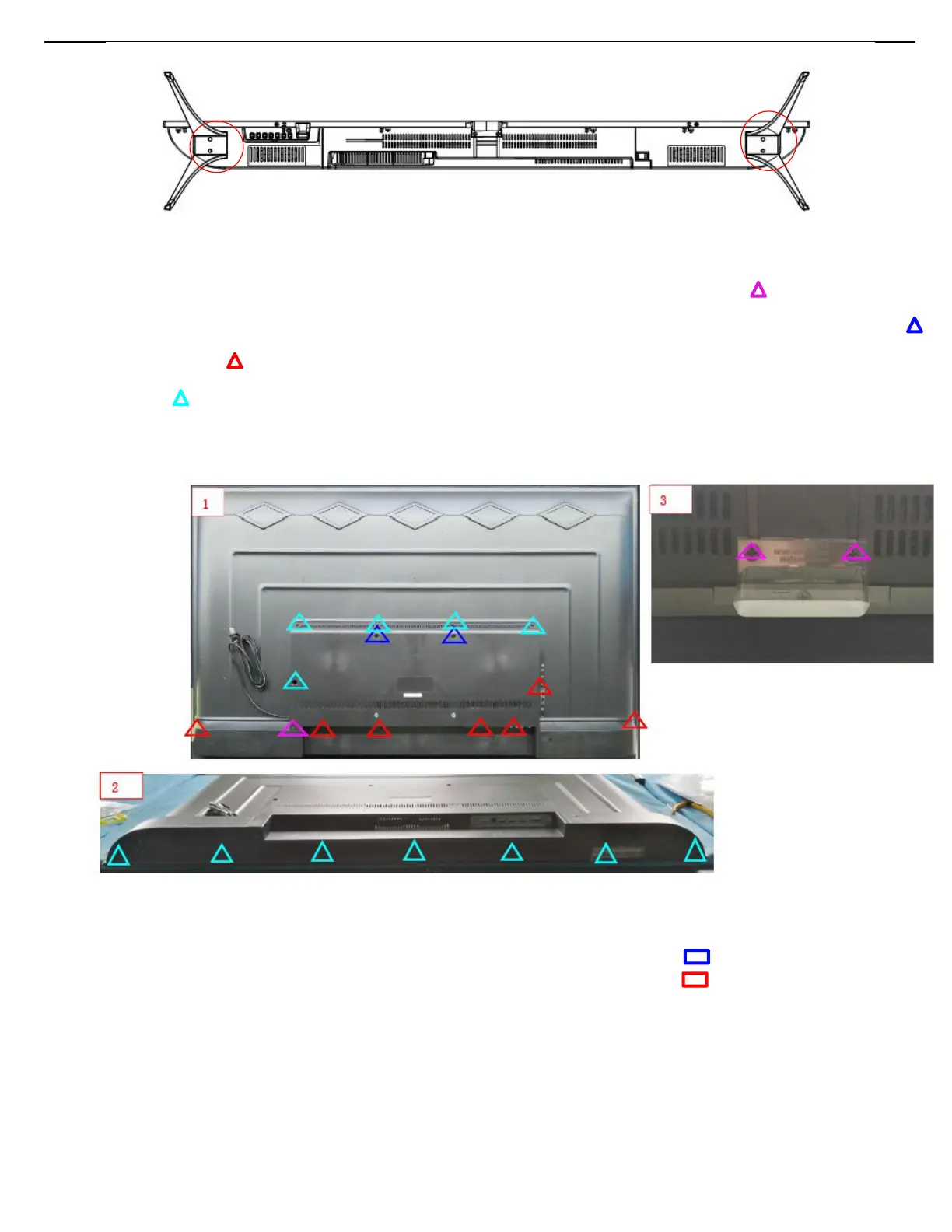

1. Use electric screwdriver to disassemble Ф3×10mm screw,and put it at appointed position. Figure 1/3
2. Put removed decorative part at the appointed position
3. Use electric screwdriver to dismantle M6*25 P head black zinc plating machine screw,and put it at appointed position. Figure 1
4. Use electric screwdriver to disassembleΦ3×6 countersunk head black zinc plating machine screw, and put it at appointed
position. Figure 1
5. Use electric screwdriver to dismantle Ф3×5mm flat head black zinc plating machine screw,and put it at appointed position.
Figure 1
6. When dismantle back cover-M,dismantle the side with M/B interface firstly,prevent interface damaged
7. Put removed back cover-M at appointed position.After self-check OK,flow it into next station by foot switch
.
3.2.3 Disassemble tape/ aluminum foil
1. Tear off fiber tapes from the back plate and put them at appointed position,as Figure show.
2. Tear off aluminum foil from the back plate and put it at appointed position,as Figure show.
3. After self-check OK,flow it into next station by foot switch
