13 October, 2017
Antumbra 15 Installation

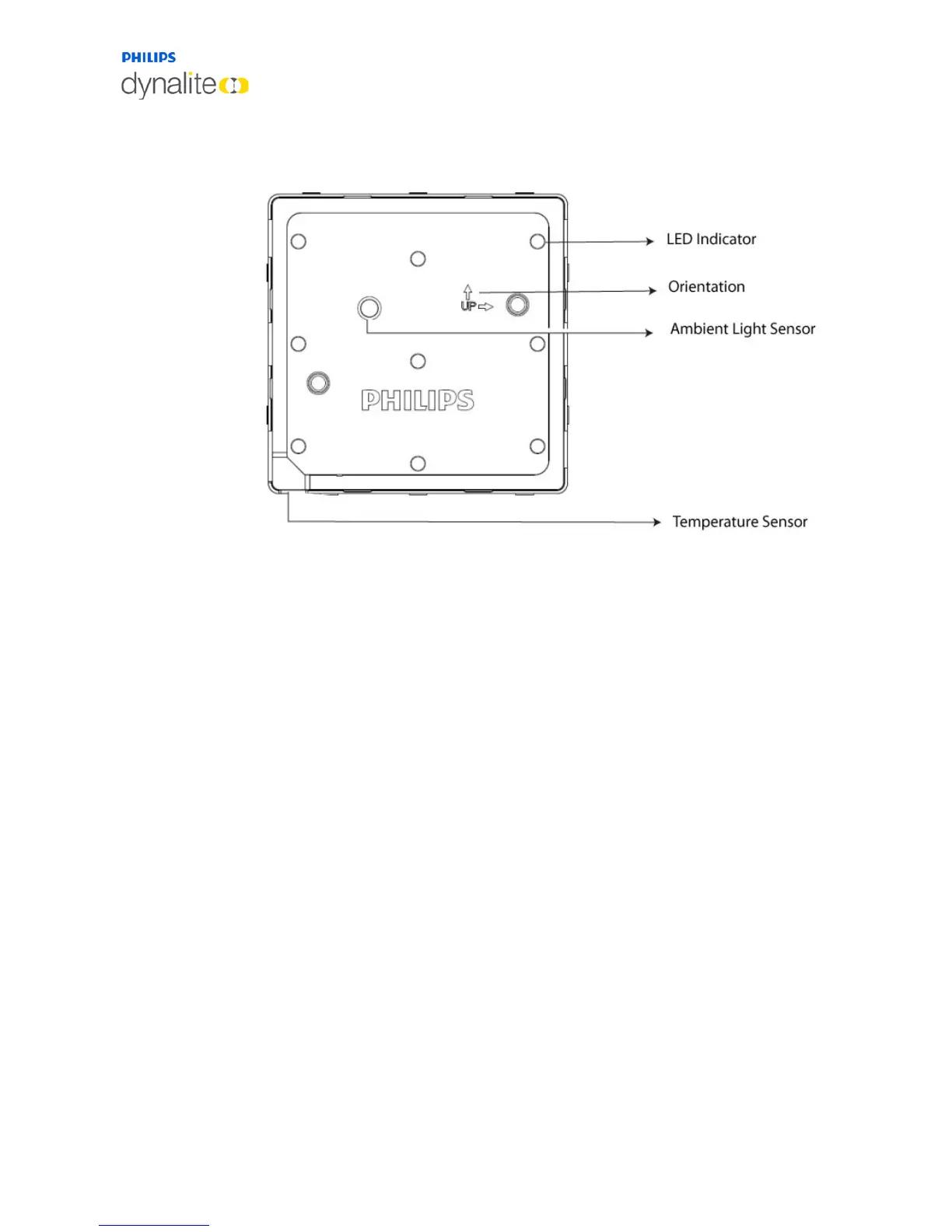

1.5.4 AntumbraTouch Base Unit
The AntumbraTouch Application Module has six configurable touch points, LED indicators, a
temperature sensor, a daylight sensor and a proximity sensor.
The panel can be mounted in both portrait and landscape orientations. Ensure the holes on
the rim are positioned over the temperature sensor to allow airflow. The arrows indicate
the side that has to be at the top when the panel is mounted.
