Antumbra 16 Installation
2 Installation
2.1 Network termination
NOTE: Never connect network devices to a live network. Power down all load controllers
and network power supplies before connecting devices or adjusting the DyNet network.

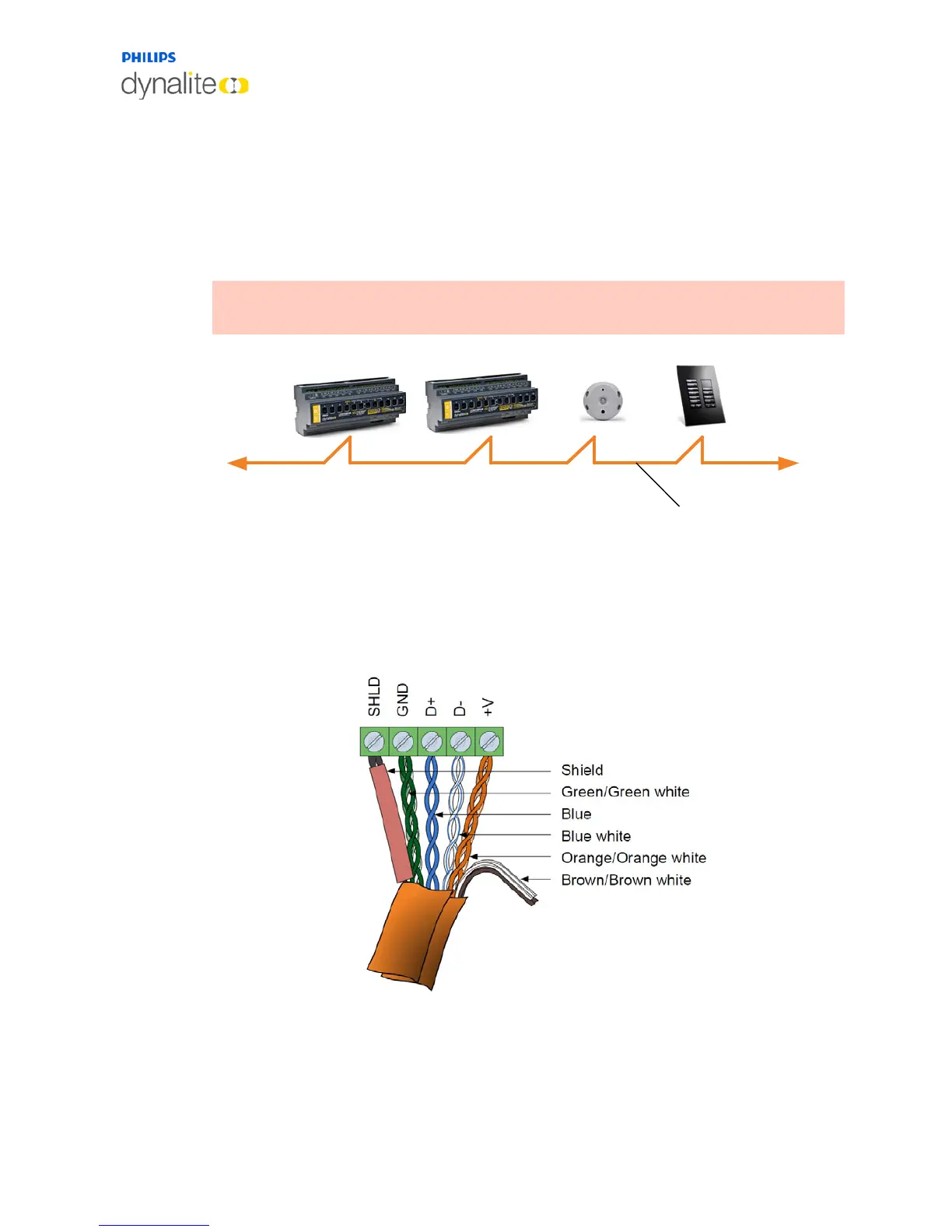

Unplug the five way screw socket on the back of the Communication module. Terminate the
network cable following the diagram below. All devices must be terminated correctly as
shown.
DyNet Network
DyNet RS
485
3 Twisted Pair
& Overall
Screen
