Antumbra 19 Installation

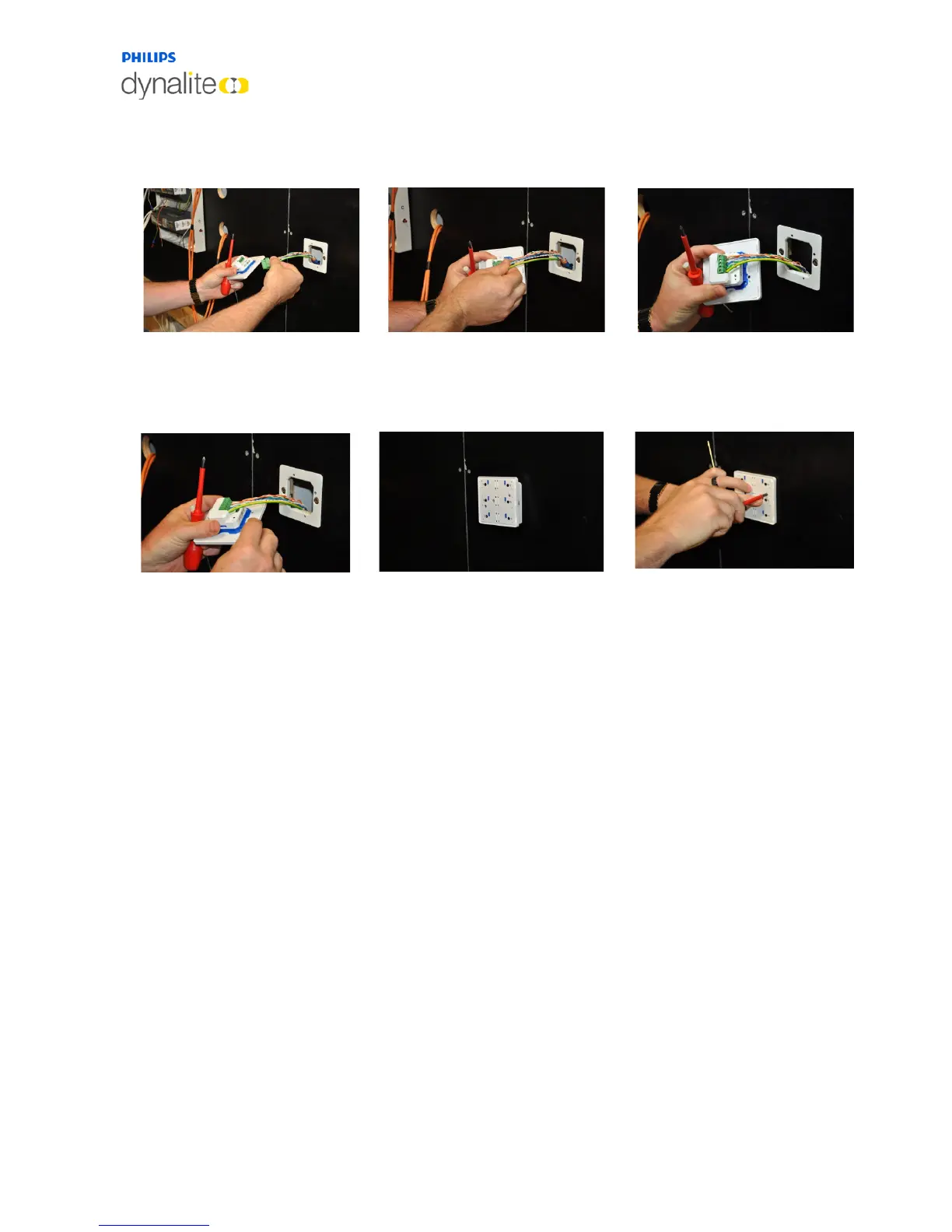

5. Once the mounting plate is secured, plug the phoenix connector into the
communication module. If the communication module is not already attached to the
application module, attach it now.
6. Push the panel assembly into the mounting bracket. Locate and fix the application unit to
the mounting bracket using the two smaller screws through the mounting holes.
Recheck the level of the panel and adjust if required
