Philips CD911 - Service Position; Loader Assy

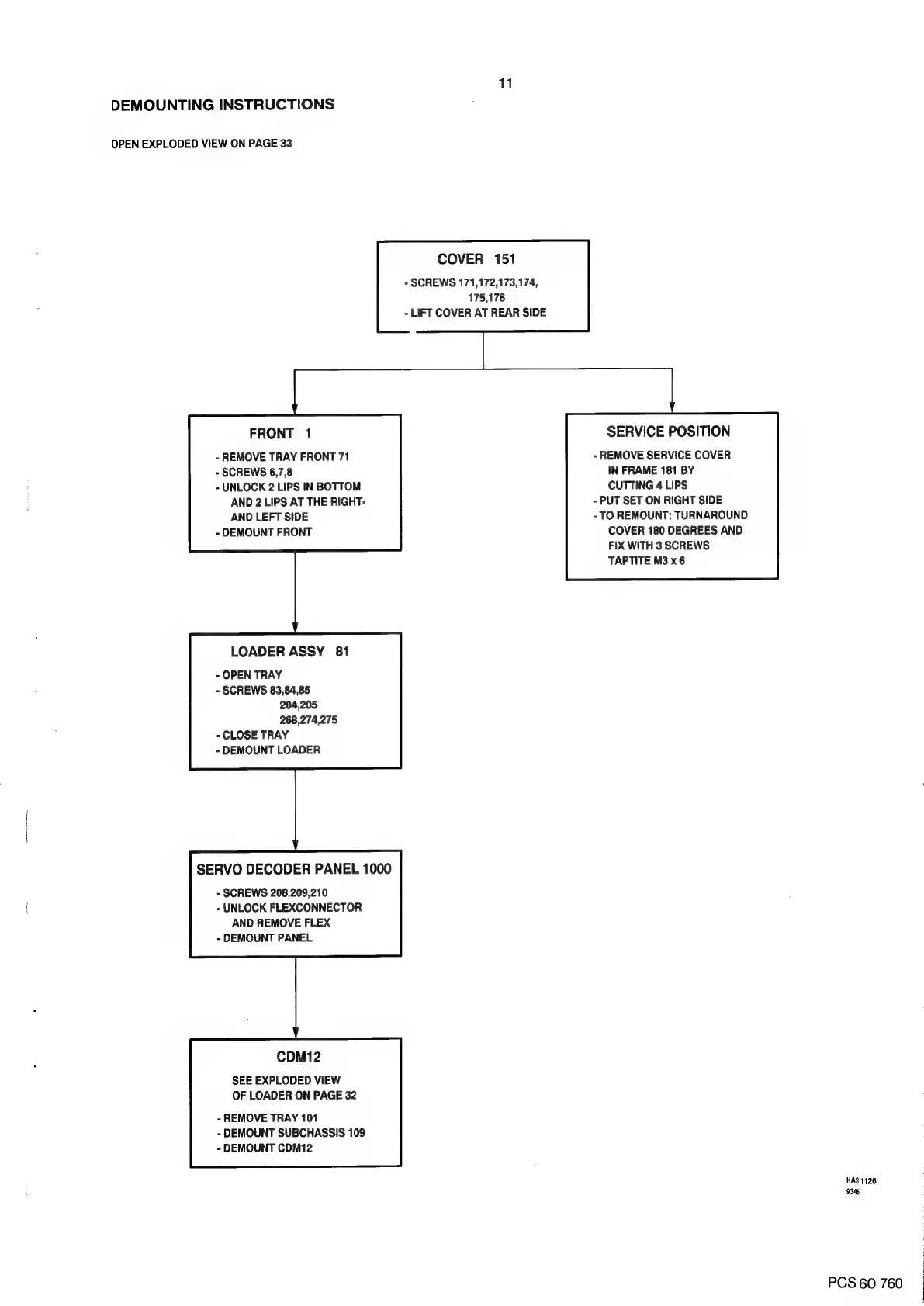

DEMOUNTING INSTRUCTIONS
OPEN EXPLODED VIEW ON PAGE 33
FRONT 1
- REMOVE TRAY FRONT 71
- SCREWS 6,7,8
- UNLOCK 2 LIPS IN BOTTOM
AND 2 LIPS AT THE RIGHT-
AND LEFT SIDE
- DEMOUNT FRONT
LOADER ASSY 81
- OPEN TRAY
- SCREWS 83,84,85
204,205
268,274,275
- CLOSE TRAY
- DEMOUNT LOADER
SERVO DECODER PANEL 1000
- SCREWS 208,209,210
- UNLOCK FLEXCONNECTOR
AND REMOVE FLEX
- DEMOUNT PANEL
CDM12
SEE EXPLODED VIEW
OF LOADER ON PAGE 32
- REMOVE TRAY 101
- DEMOUNT SUBCHASSIS 109
- DEMOUNT CDM12
11
COVER 151
- SCREWS 171,172,173,174,
175,176
- LIFT COVER AT REAR SIDE
SERVICE POSITION
- REMOVE SERVICE COVER
IN FRAME 181 BY
CUTTING 4 LIPS
- PUT SET ON RIGHT SIDE
- TO REMOUNT: TURNAROUND
COVER 180 DEGREES AND
FIX WITH 3 SCREWS
TAPTITE M3 x6
HAS 1126
9345
PCS 60 760
