Philips CD911 - CDM12 Start up Diagram

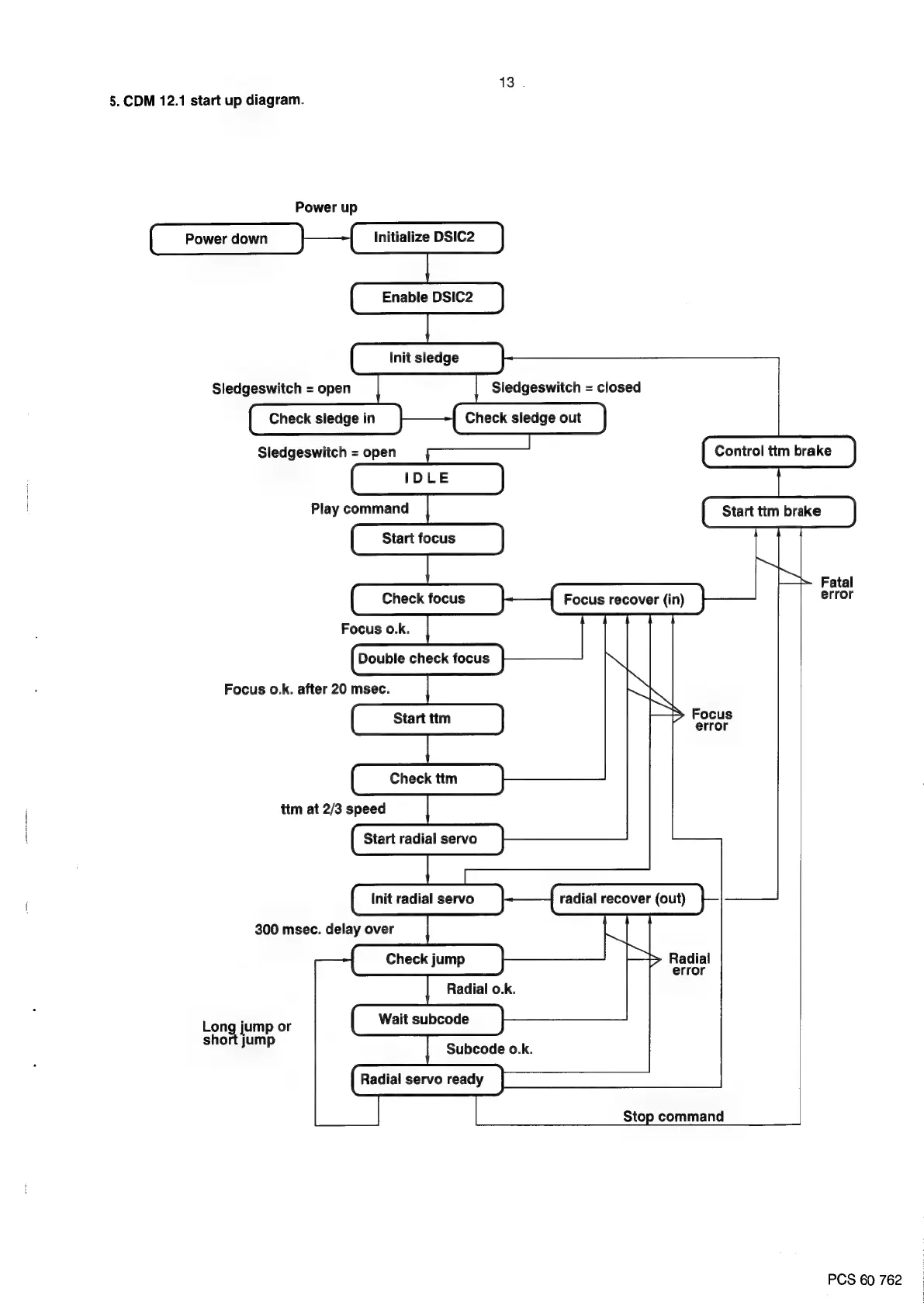

5. CDM 12.1 start up diagram.
Power up
Initialize DSIC2
Enable DSIC2
Sledgeswitch = open Le gee Sledgeswitch = closed
Check sledge in
Sledgeswitch = open
IDLE
Play command
Focus o.k.
Double = | i
Focus o.k. after 20 msec. LN
ase Focus
error
ttm at 2/3 speed
Start radial servo
Init radial servo radial recover (out)
300 msec. delay over —
ee > Radi
Radial o.k.
Subcode o.k.
Radial servo ready
Long jump or
short jump
Stop command
Control ttm brake
Start ttm brake
PCS 60 762
