Philips CDC 936 - Installation.7; Accessories; Power Supply Setting; Siting the Compact Disc Changer

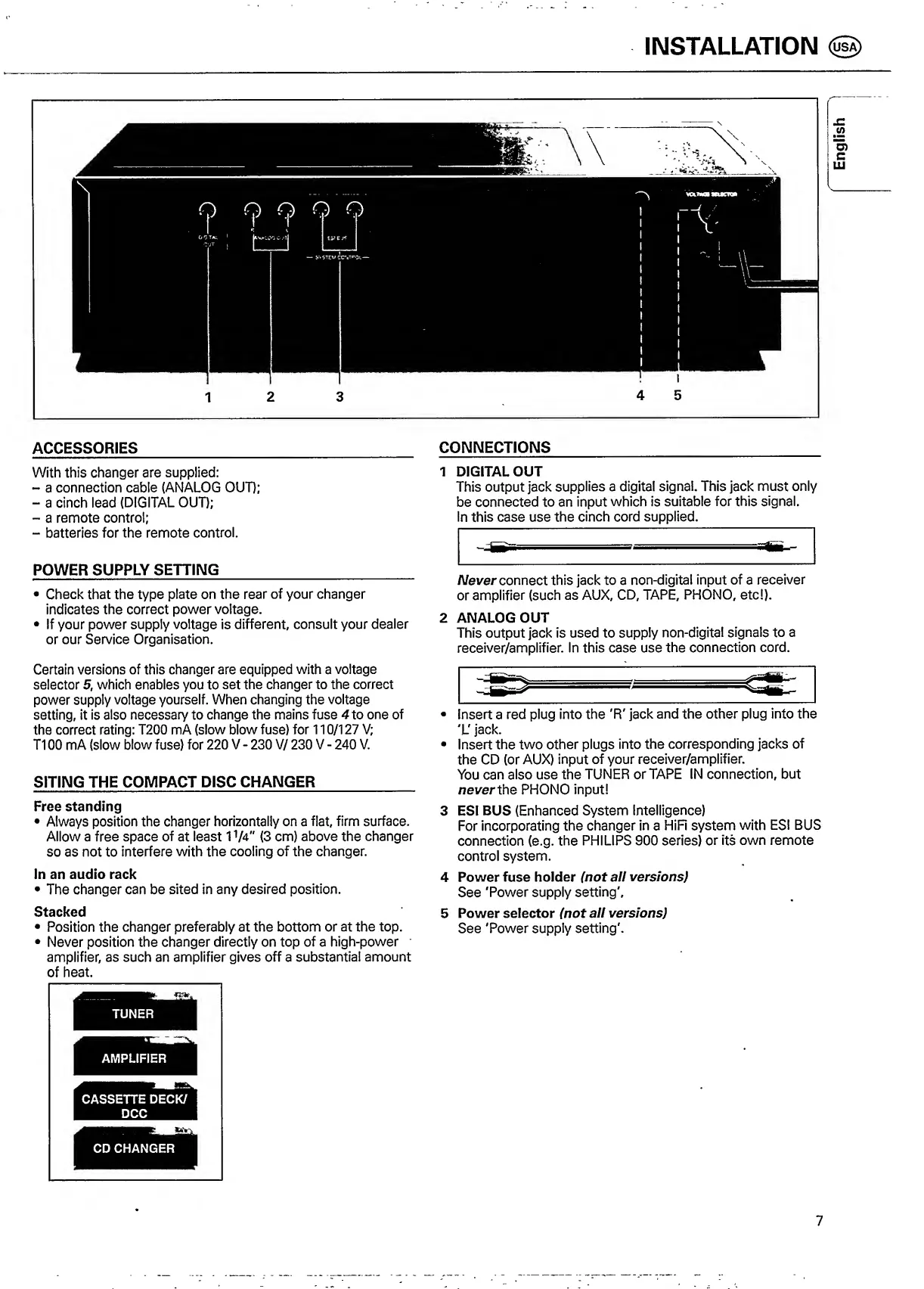

INSTALLATION @)
ACCESSORIES
CONNECTIONS
With this changer are supplied:
- a connection cable (ANALOG OUT);
- a cinch lead (DIGITAL OUT);
- a remote control;
“ batteries for the remote control.
POWER SUPPLY SETTIIMG _
• Check that the type plate on the rear of your changer
indicates the correct power voltage.
• If your power supply voltage is different, consult your dealer
or our Service Organisation.
Certain versions of this changer are equipped with a voltage
selector 5, which enables you to set the changer to the correct
power supply voltage yourself. When changing the voltage
setting, it Is also necessary to change the mains fuse 4 to one of
the correct rating: T200 mA (slow blow fuse) for 110/127 V;
T100 mA (slow blow fuse) for 220 V - 230 V/ 230 V - 240 V.
SITING THE COMPACT DISC CHANGER _
Free standing
• Always position the changer horizontally on a flat, firm surface.
Allow a free space of at least 1V4" (3 cm) above the changer
so as not to interfere with the cooling of the changer.
In an audio rack
• The changer can be sited in any desired position.
Stacked
• Position the changer preferably at the bottom or at the top.
• Never position the changer directly on top of a high-power
amplifier, as such an amplifier gives off a substantial amount
of heat.
1 DIGITAL OUT
This output jack supplies a digital signal. This jack must only
be connected to an input which Is suitable for this signal.
In this case use the cinch cord supplied.
A/ever connect this jack to a non-digital input of a receiver
or amplifier (such as AUX, CD, TAPE, PHONO, etc!).
2 ANALOG OUT
This output jack is used to supply non-digital signals to a
receiver/amplifier. In this case use the connection cord.
• Insert a red plug into the 'R' jack and the other plug into the
V jack.
• Insert the two other plugs into the corresponding jacks of
the CD (or AUX) input of your receiver/amplifier.
You can also use the TUNER or TAPE IN connection, but
neverthe PHONO input!
3 ESI BUS (Enhanced System Intelligence)
For incorporating the changer in a HiR system with ESI BUS
connection (e.g. the PHILIPS 900 series) or its own remote
control system.
4 Power fuse holder (notaU versions)
See 'Power supply setting',
5 Power selector (not all versions)
See 'Power supply setting'.
