13
14
15
16

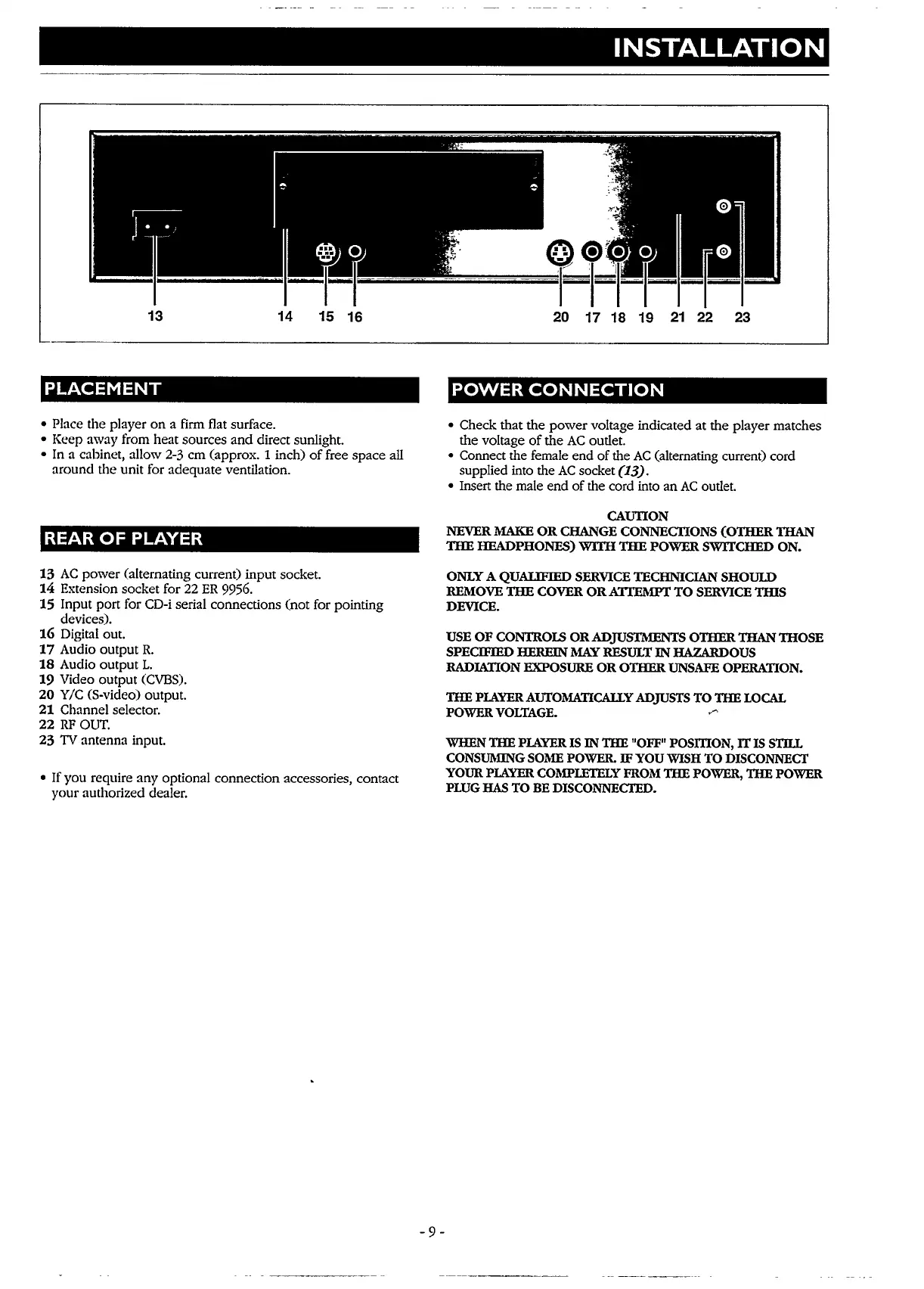

PLACEMENT
• Place the player
on
a firm flat surface.
• Keep away from heat sources and direct sunlight.
• In a cabinet, allow
2-3
cm (approx. 1 inch)
of
free space all
around the unit for adequate ventilation.
REAR
OF
PLAYER
13
AC
power (alternating current) input socket.
14
Extension socket for
22
ER
9956.
15 Input port for
CD-i
serial connections (not for pointing
devices).
16
Digital out.
17
Audio output
R.
18
Audio output
L.
19 Video output
(CVBS).
20 Y
IC
CS-video)
output.
21 Channel selector.
22
RF
OUT.
23
TV
antenna input.
•
If
you require any optional connection accessories, contact
your authorized dealer.
-9-
INSTALLATION
20
17
18 19
21
22 23
POWER
CONNECTION
• Check that the power voltage indicated
at
the player matches
the voltage
of
the
AC
outlet.
• Connect the female end
of
the
AC
(alternating current) cord
supplied into the
AC
socket
(13).
• Insert the male end of the cord into an
AC
outlet.
CAUTION
NEVER MAKE
OR
CHANGE
CONNECfIONS
(OTHER
THAN
THE
HEADPHONES)
WITH THE
POWER
SWITCHED
ON.
ONLY A QUALIFIED SERVICE TECHNICIAN SHOULD
REMOVE
THE
COVER OR.A'.IT.EMPT
TO
SERVICE
nns
DEVICE.
USE
OF
CONTROIS
OR.ADJUSTMENTS
OTHER
THAN
mosE
SPECIFIED
HEREIN
MAY RESULT
IN
HAZARDOUS
RADIATION EXPOSURE
OR
OTHER
UNSAFE OPERATION.
TIIE
PLAYER
.AUTO:MATICAllY ADJUSTS
TO
TIIE LOCAL
POWER VOLTAGE.
,,...
WHEN TIIE PLAYER
IS
IN
TIIE "OFF"
POSffiON,
IT
IS
STILL
CONSfilllNG SOME POWER.
IF
YOU WISH
TO
DISCONNECT
YOUR
PLAYER
COMPLETELY FROM TIIE POWER, TIIE POWER
PLUG HAS
TO
BE DISCONNECTED.
