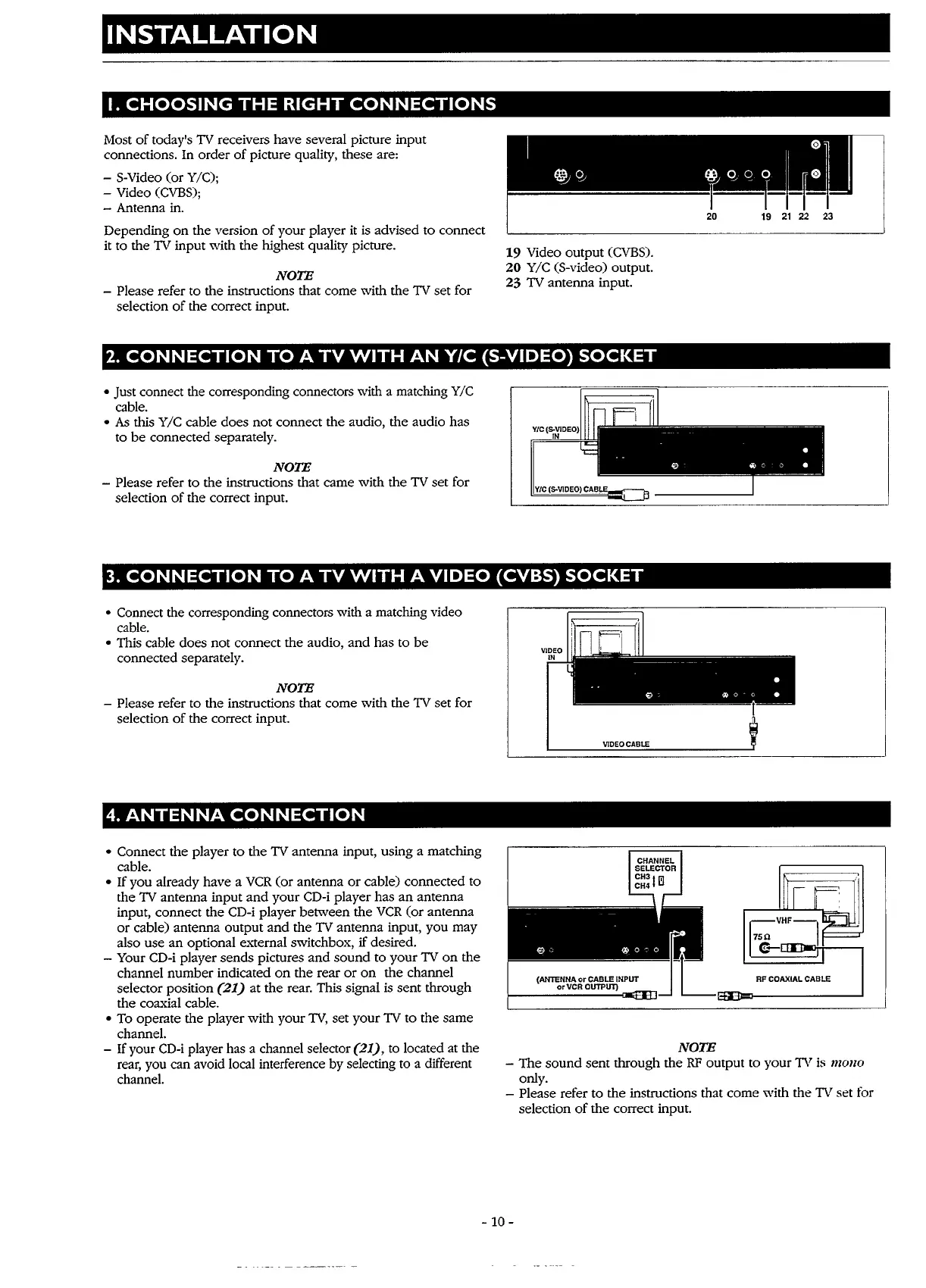

INSTALLATION
I.
CHOOSING
THE
RIGHT
CONNECTIONS
Most
of
today's
TV
receivers have several picture input
connections. In order
of
picture quality, these are:
- S-Video (or Y/C);
- Video
(CVBS);
- Antenna in.
Depending
on
the version
of
your player
it
is
advised to connect
it to the
TV
input with the highest quality picture.
NOTE
- Please refer to the instructions that come with the
TV
set for
selection
of
the correct input.
19
Video output
(CVBS).
20
Y/C (S-video) output.
23
TV
antenna input.
2.
CONNECTION
TO
A
TV
WITH
AN
Y/C
(S-VIDEO)
SOCKET
• just connect the corresponding connectors with a matching
Y/C
cable.
•
As
this Y/C cable does not connect the audio, the audio has
to
be
connected separately.
NOTE
- Please refer to the instructions that came with the
TV
set for
selection
of
the correct input.
3.
CONNECTION
TO
A
TV
WITH
A
VIDEO
(CVBS)
SOCKET
• Connect the corresponding connectors with a matching video
cable.
• This cable does not connect the audio, and has to
be
connected separately.
NOTE
- Please refer to the instructions that come with the
TV
set for
selection
of
the correct input.
4.
ANTENNA
CONNECTION
• Connect the player to the
TV
antenna input, using a matching
cable.
•
If
you already have a
VCR
(or antenna
or
cable) connected to
the
TV
antenna input
and
your
CD-i
player has
an
antenna
input, connect the
CD-i
player between the
VCR
(or antenna
or
cable) antenna output and the
TV
antenna input, you may
also use
an
optional
e:i..1:ernal
switchbox,
if
desired.
- Your
CD-i
player sends pictures
and
sound to your
TV
on
the
channel number indicated
on
the rear
or
on
the channel
selector position
(21)
at the rear. This signal
is
sent through
the coaxial cable.
• To operate the player with your
TV,
set your
TV
to the same
channel.
-
If
your
CD-i
player has a channel selector
(21),
to located at the
rear,
you can avoid local interference by selecting to a different
channel.
CHANNEL
SELECTOR
g~!Hl
~~~~~~~~~
~~
I
@c
11'/0'0
,
(ANTENNA
or
CABLE
INPUT
or
VCR
OUTPUl)
NOTE
RF
COAXIAL
CABLE
- The sound sent through the
RF
output to your
TV
is
mono
only.
- Please refer to the instructions that come with the
TV
set for
selection
of
the correct input.
