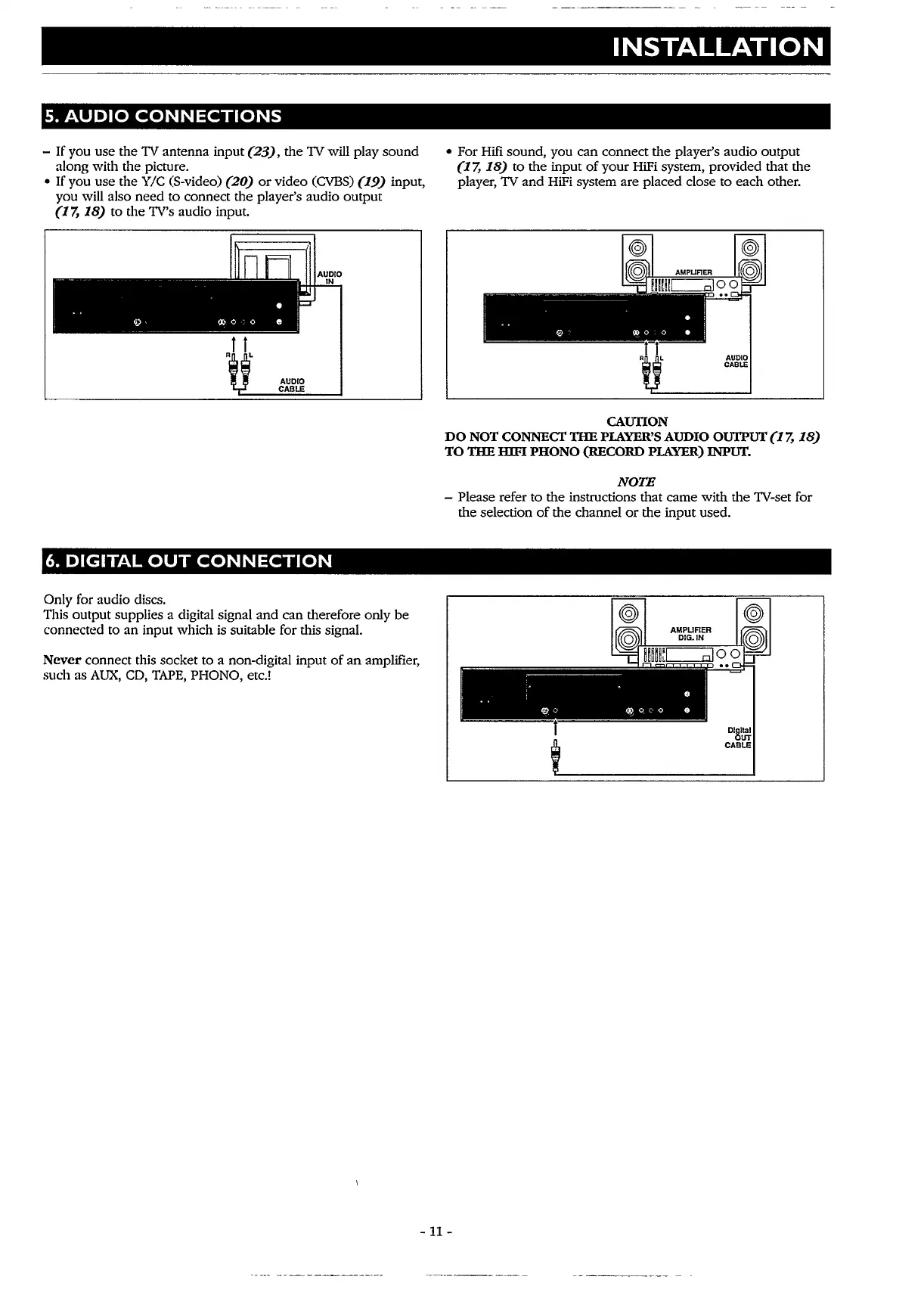

5.
AUDIO
CONNECTIONS
-
If
you use the
TV
antenna input
(23),
the
TV
will play sound
along with the picture.
•
If
you use the Y/C (S-video)
(20)
or
video
(CVBS)
(19)
input,
you will also
need
to connect the player's audio output
(17,
18)
to the TV's audio input.
6.
DIGITAL
OUT
CONNECTION
Only for audio discs.
This output supplies a digital signal
and
can therefore only
be
connected to an input which
is
suitable for this signal.
Never
connect this socket to a non-digital input
of
an
amplifier,
such as
AUX,
CD,
TAPE,
PHONO, etc.!
INSTALLATION
• For Hill sound, you can connect the player's audio output
(17,
18)
to the input
of
your
HiFi
system, provided that the
player,
TV
and
HiFi system are placed close to each other.
CAUTION
DO
NOT
CONNECT
THE
PLAYER'S AUDIO
OurPUT
(17,
18)
TO
THE
HIFI
PHONO
(RECORD PLAYER) INPUT.
NOTE
- Please refer to the instructions that came with the TV-set for
the selection
of
the channel
or
the input used.
-
11
-
