Philips Diamond Line 2 - Plug-In Circuits; Figure 13. Diamond Line 2 Amp, User-Changeable Plug-Ins

42 10 July 2000 Diamond Line Amplifiers
Plug-In Circuits

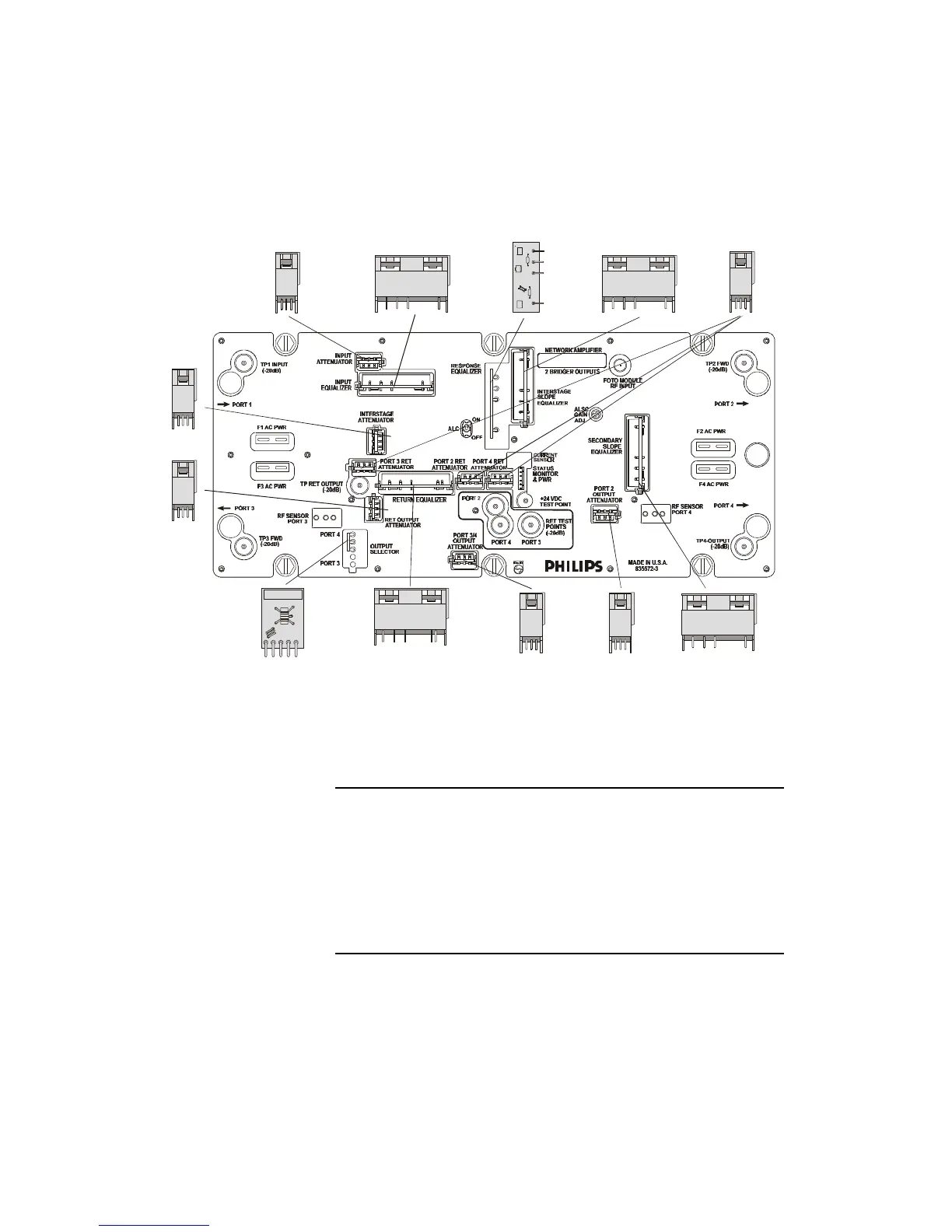

Figure 13. Diamond Line 2 Amp, User-Changeable Plug-Ins
These user-changeable plug-in circuits, accessible through
cut-outs in the amplifier cover, let you customize the Diamond
Line2 amplifier. “WC” series equalizers and attenuators come
with guides that simplify their installation and plastic covers that
protect their components. (The “WC” in the part number stands
for “with cover.”)
7-2E-WC
Input
Equalizer
9-A-WC or
10-A-WC
Input
Attenuator
9-A-WC or
10-A-WC
Secondary
Output
Attenuator
7-REF-WC
Return Output
Equalizer or
EDB Response
Equalizer
9-A-WC
or
10-A-WC
Return
Output
Attenuator
EDB
Response Equalizer
(debumper)
9-A0 or 7-DC-862
Secondary Output
Port Selector
9-A-WC or
10-A-WC
Main Output
Attenuator
7-2E-WC
Secondary
Slope
Equalizer
7-2E-WC
Interstage
Slope
Equalizer
9-A-WC or
10-A-WC
Return Input
Attenuators
9-A-WC
or
10-A-WC
Interstage
Attenuator
