Diamond Line Amplifiers 10 July 2000 31
Equipment Description
Diamond Line2 amplifiers have two equal, or three unequal,
high-level RF distribution outputs. They use two
post-amplifier hybrids, one for the main output and one for
the secondary outputs. A plug-in output port selector allows
you to use one or both secondary outputs by using a plug-in
jumper or directional coupler.

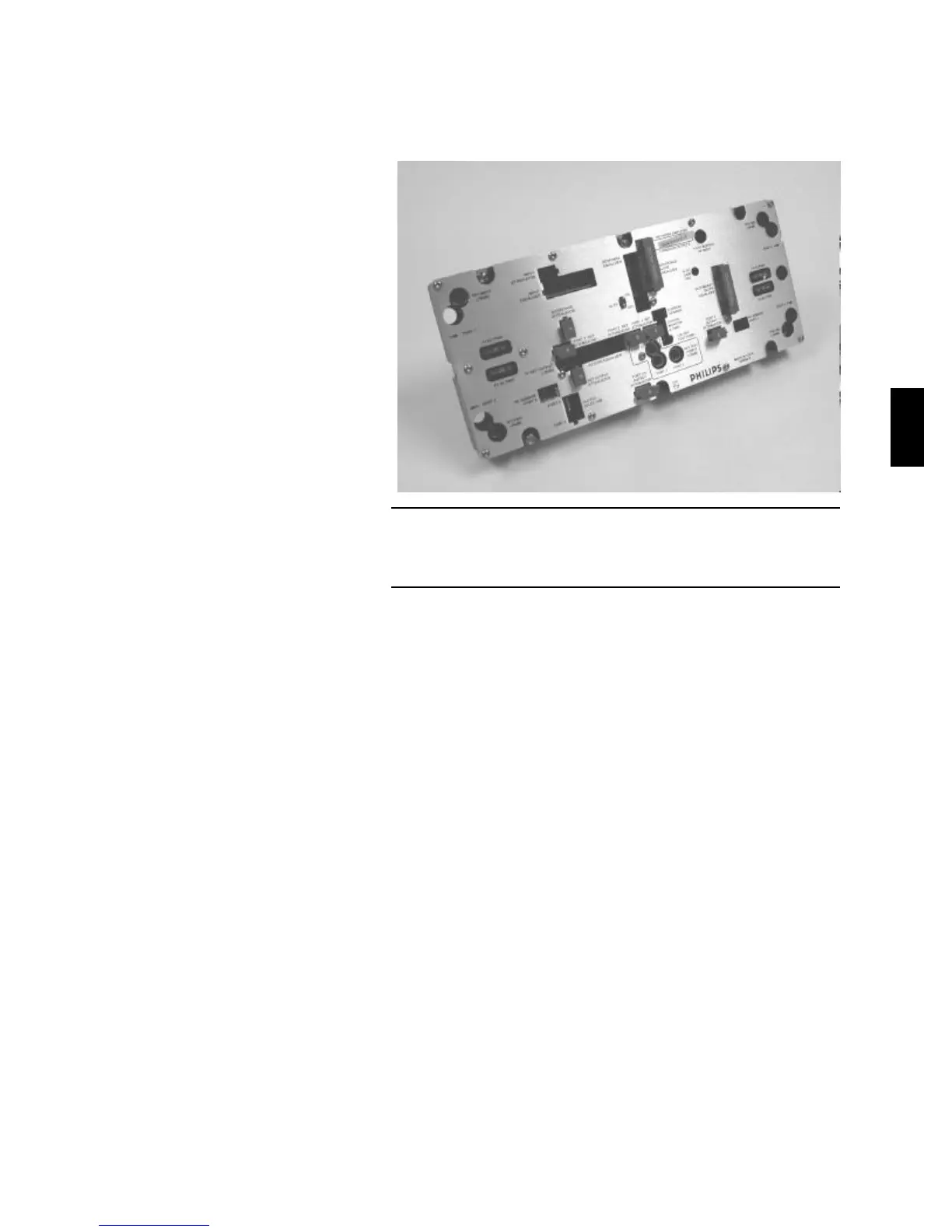

Figure 8. Diamond Line 2 Amplifier, Front View
The Diamond Line2 amplifier is a distribution amplifier, similar in
function to Philips’ GNA series global network amplifiers.
