Make one of the following connections, depending on the capabilities of your existing device.
OUT
S-VIDEO
S-VIDEO IN
Y
PR/CR
PB/CB
COMPONENT
VIDEO OUTPUT
COMPONENT
VIDEO IN
Y
PB/CB
PR/CR
(Green)
(Blue)
(Red)
(Green)
(Blue)
(Red)
IN
VIDEO
OUT
Y
PB/CB
R
L
R
L
VIDEO
IN
S-VIDEO
COAXIAL
HDMI OUT
AV I N
AV O UT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
VIDEO
OUT
R
L
AV OUT
AUDIO IN
LR
AV OUT
TV
analog audio
Method 2 Method 3
good picture better picture
S-VIDEO OUT COMPONENT
VIDEO OUTPUT
RCA
audio cable
S-video
cable
component
video cable
this unit
Note
• Connect this unit directly to the TV. If the RCA audio/video cables are connected to a VCR, pictures may be
distorted due to the copy protection system.
After you have completed the connections
• Switch the input selector on your TV to an appropriate external input channel. Press a button on the TV’s original
remote control that selects an external input channel until the DVD recorder’s opening picture appears. Check your
TV owner’s manual for details.
To set progressive scan mode, refer to page 82
• This unit is compatible with the progressive scan system. The feature provides you with the higher quality images than the
traditional output system does. To utilize this feature, you must set “Progressive Scan” to “ON”.

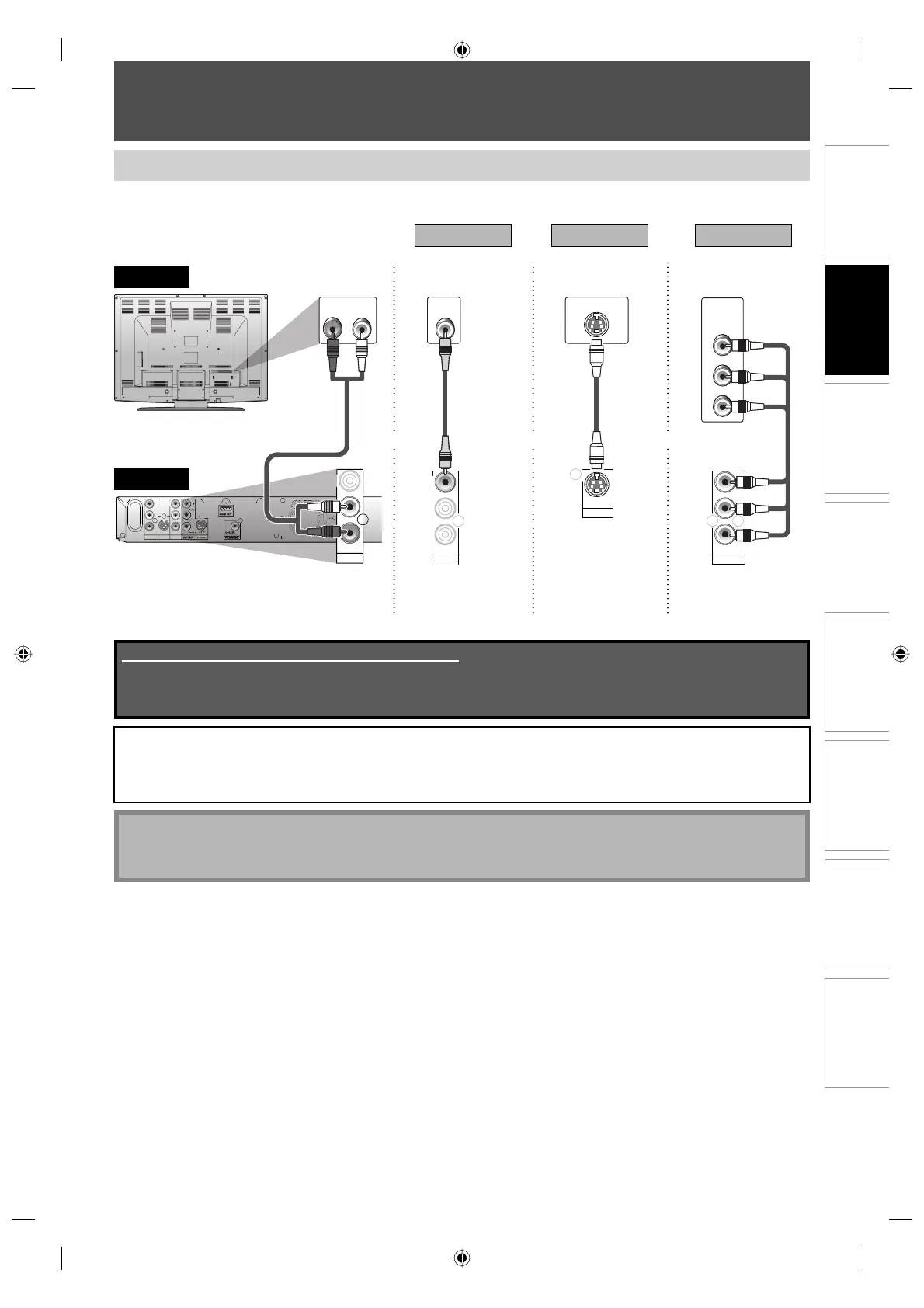

CONNECTION TO A TV
Method 1
standard picture
VIDEO OUT
VIDEO
OUT
R
L
AV OUT
VIDEO
IN
RCA
video cable
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
and or or
