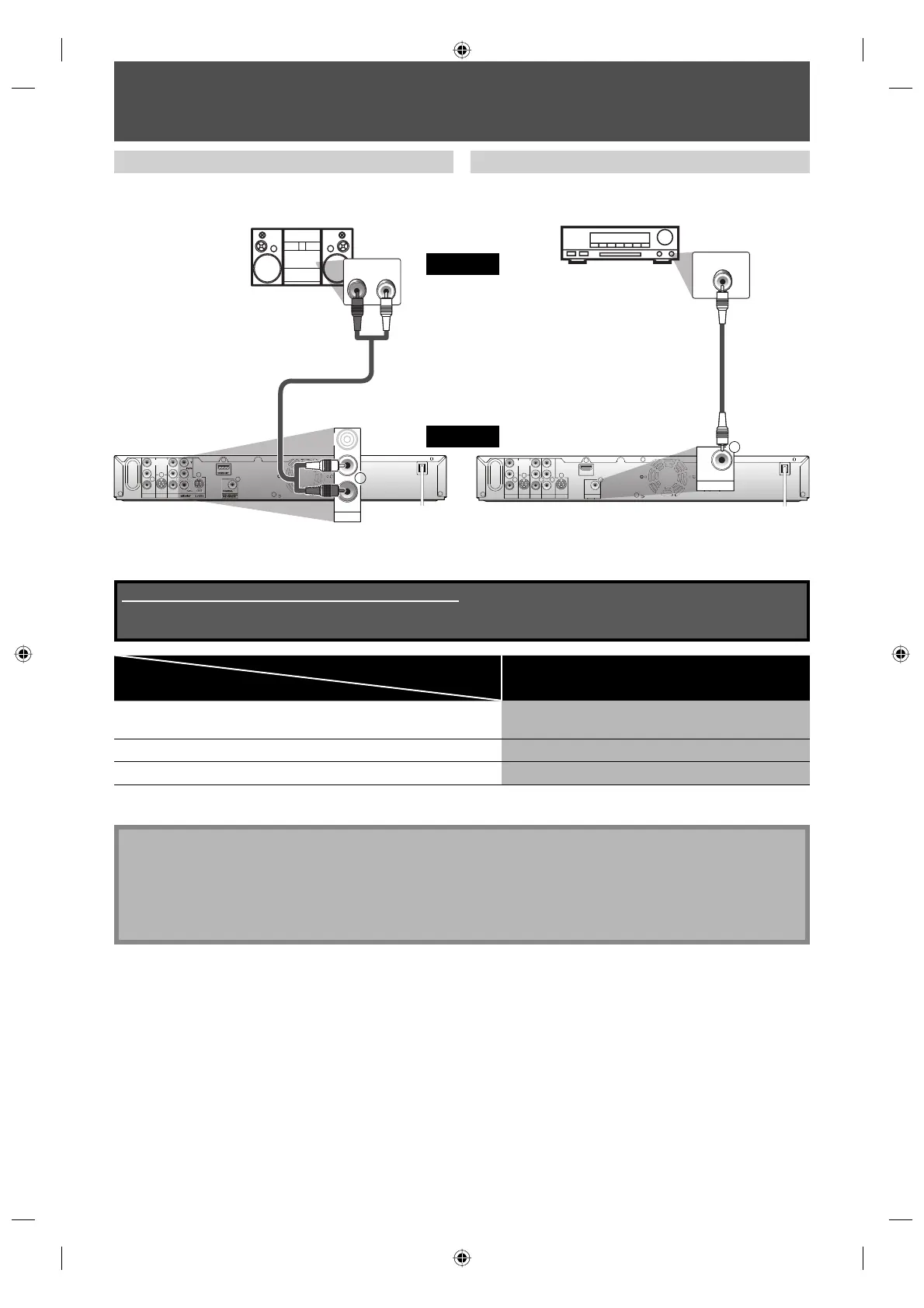

CONNECTION TO AN AUDIO SYSTEM
IN
VIDEO
OUT
Y
PB/CB
R
L
R
L
VIDEO
IN
S-VIDEO
COAXIAL
HDMI OUT
AV I N
AV O UT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
VIDEO
OUT
R
L
AV OUT
AUDIO IN
LR
stereo system
audio
analog audio
input jacks
RCA audio cable
AV OUT
2 Channel Analog Audio Connection Digital Audio Connection
Dolby Digital decoder,
MD deck or DAT deck
IN
OUT
VIDEO
OUT
Y
PR/CR
PB/CB
R
L
R
L
VIDEO
IN
S-VIDEO S-VIDEO
COAXIAL
HDMI OUT
AV IN AV O UT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
COAXIAL
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
COAXIAL
digital audio
coaxial input jack
digital audio coaxial cable
DIGITAL AUDIO OUTPUT
this unit
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound
by an MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel
surround sound as heard in the movie theaters.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Setting
Setup >General Setting >Playback >Disc Audio >
Dolby Digital
Connection
If output is Dolby Digital encoded audio, connect to a Dolby
Digital decoder.
Stream
Connecting to an MD deck or DAT deck. PCM
If not connected to any external devices. PCM
* To complete these settings, refer to page 77.
