Philips DVDR3510V - Step 2: Optional Connections; Connecting Cable Box;Satellite Receiver (RF Out); Connecting Cable Box;Satellite Receiver (SCART Out)

English
19
Step 2: Optional Connections
Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
has only an antenna output socket
(RF OUT or TO TV),
see “Step 1: Basic Recorder Connections
– Connecting the antenna cables” for the
complete connections to your TV.

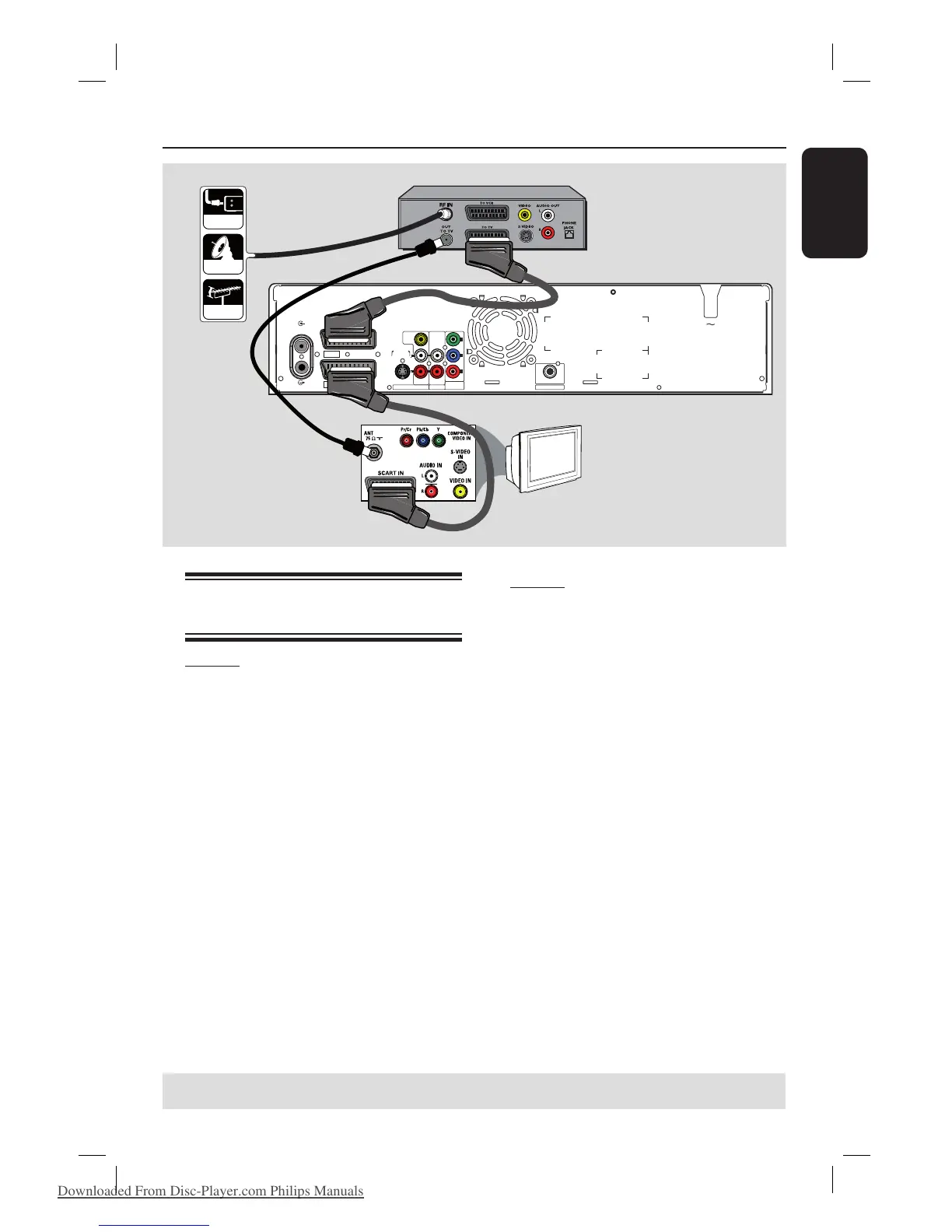

Option 2
If your Cable Box/Satellite Receiver
has a SCART output socket
A
Keep the existing antenna connection
from the Cable Box/Satellite Receiver to
your TV.
B
Connect the SCART cable from the
EXT1 TO TV-I/O socket on the
recorder to the corresponding SCART
input socket on the TV.
C
Connect another SCART cable from the
EXT2 AUX-I/O socket on the recorder
to the SCART output socket (or labelled
as TV OUT or TO TV) on the Cable
Box/Satellite Receiver.
To start playback, select the TV channel
directly on the Cable Box/Satellite
Receiver. To view picture from a
connected external device, press the
SCART button on the remote control.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
B
C
3139 241 26501
TO TV - I
/
O
EXT1
AUX - I
/
O
EXT2
S-VIDEO
(Y/C)
AUDIO
R
L
AUDIO / VIDEO OUT AUDIO OUT
COMPONENT
VIDEO OUT
VIDEO
(
CVBS
)
ANTENNA
TV
COAXIAL
DIGITAL AUDIO OUT
MAINS
P
R
P
B
Y
TV
??
???
?
??
??
???
?
???
Rear of a Cable Box
or Satellite Receiver
(Example only)
Cable
Satellite
Antenna
A
