Philips DVP3520 - Video and Audio Cable Connections; SCART Cable Connection; Composite (CVBS) Video Connection

7
the COAXIAL/DIGITAL input jack on •
the device.
Connect analogue stereo system
1 Connect the audio cables to:
the • AUDIO OUT L/R jacks on this
product.
the audio input jacks on the device.•
Connect USB flash drive
1 Connect a USB flash drive to the jack on
this product.
Note
This product can only play/view MP3, WMA, DivX •
(Ultra) or JPEG files that are stored on a USB flash drive.
Press the
• button to access the content and play
the files.
Connect power
Caution
Risk of product damage! Ensure that the power supply •
voltage corresponds to the voltage printed on the back
of the unit.
Before connecting the AC power cord, ensure you have
•
completed all other connections.
Note
The type plate is located on the back of the product. •
AUDIO OUT
the • AUDIO OUT L/R jacks on this
product.
the audio input jacks on the TV.•

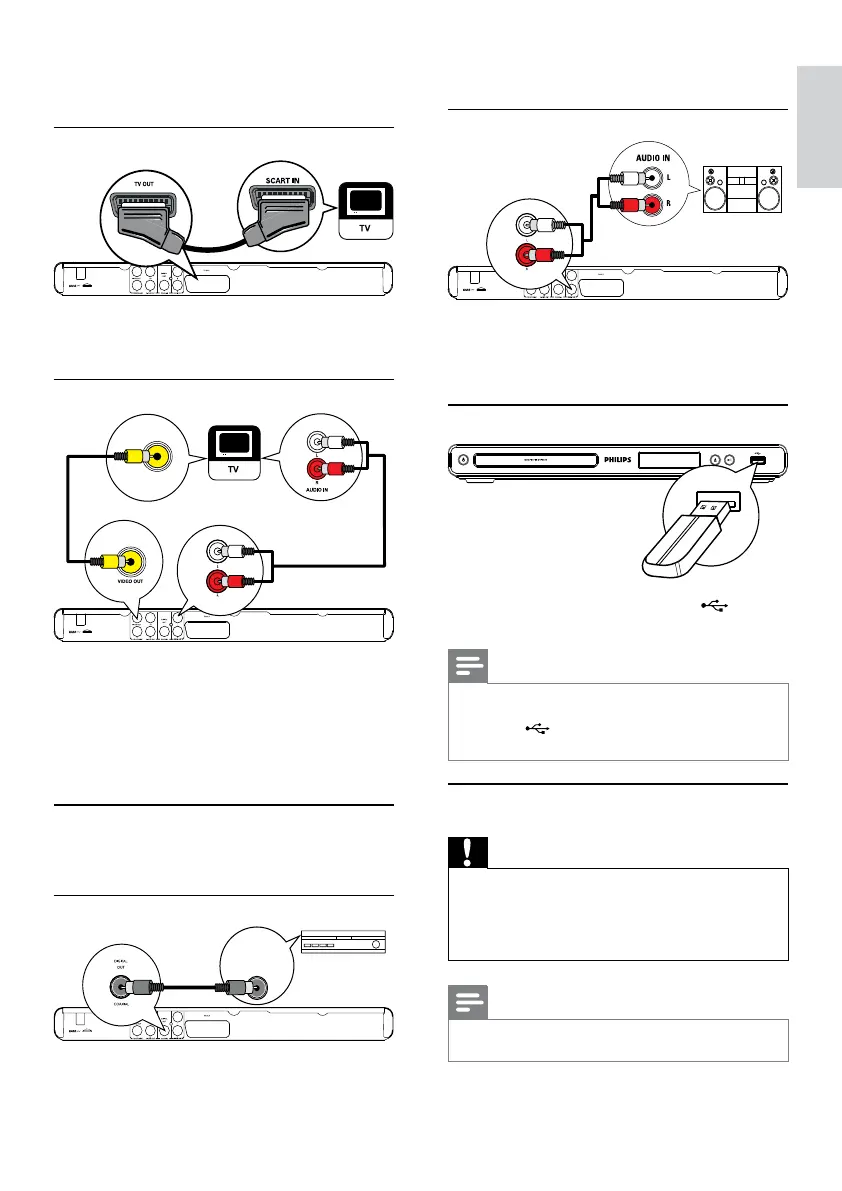

Option 2: Connect to scart jack
1 Connect a scart cable to:
the • TV OUT jack on this product.
the scart input jack on the TV.•
Option 3 : Connect to video (CVBS) jack
1 Connect a composite video cable to:
the • VIDEO OUT jack on this product.
the video input jack on the TV.•
2 Connect the audio cables to:
the • AUDIO OUT L/R jacks on this
product.
the audio input jacks on the TV.•
Route audio to other devices
Route the audio from this product to other devices
to enhance audio play.
Connect to digital amplifier/receiver
1 Connect a coaxial cable (not supplied) to:
the • COAXIAL jack on this product.
AUDIO OUT
COAXIAL
DIGITAL AUDIO
INPUT
English
EN
