1 Connect the audio cables to:
the • AUDIO OUT L/R jacks on this product.
the audio input jacks on the TV.•
Route audio to other devices
Route the audio from this product to other devices
to enhance audio play.
Connect to digital amplifi er/receiver
1
Connect a coaxial cable to:
the • COAXIAL jack on this product.
the COAXIAL/DIGITAL input jack on •
the device.
Connect analogue stereo system
1
Connect the audio cables to:
the • AUDIO OUT L/R jacks on this
product.
the audio input jacks on the device.•
Connect USB fl ash drive
1 Connect a USB fl ash drive to the jack on
this product.
Note
This product can only play/view MP3, WMA, WMV, DivX •
(Ultra) or JPEG fi les that are stored on a USB fl ash drive.
Press the
• button to access the content and play
the fi les.
COAXIAL
COAXIAL
DIGITAL AUDIO
INPUT
AUDIO IN

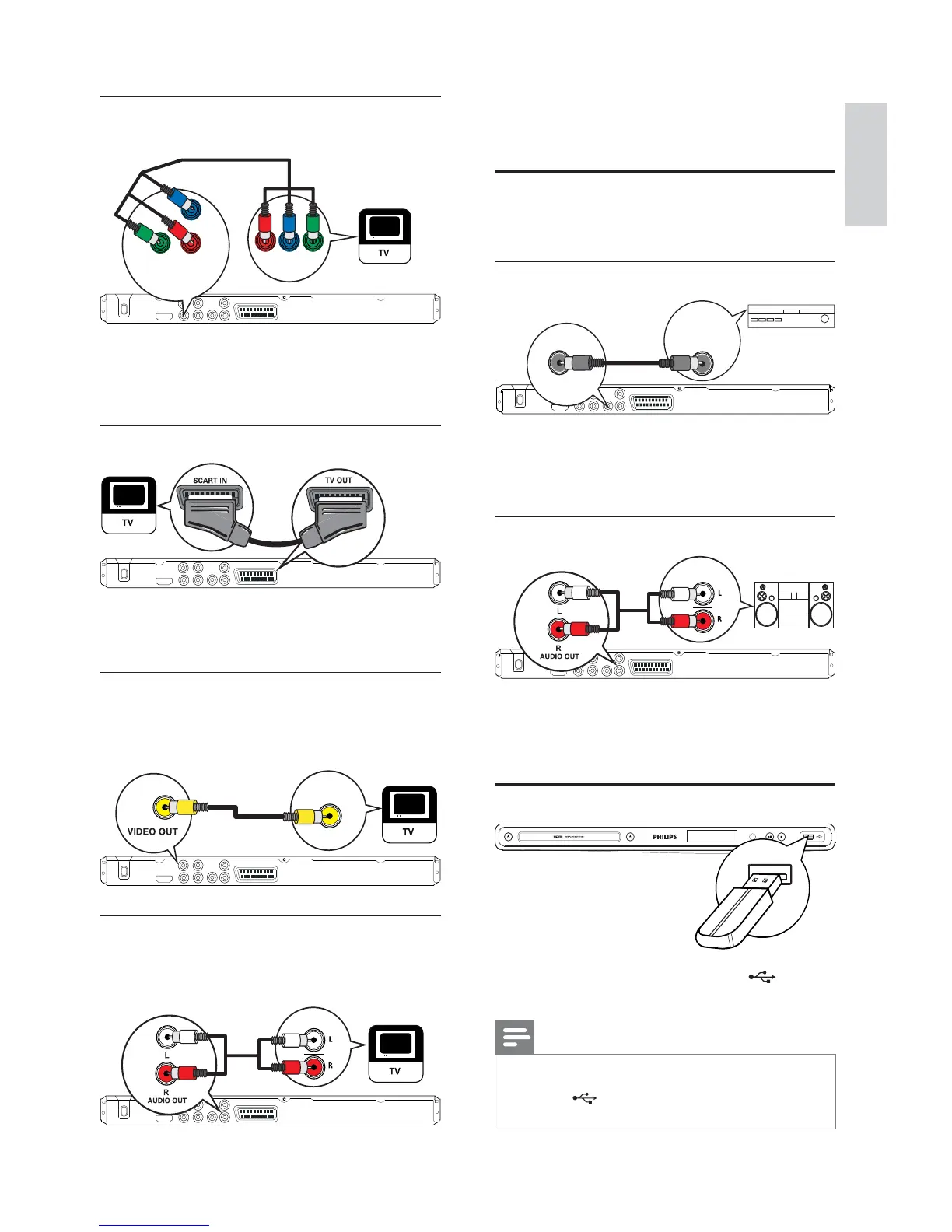

Option 2: Connect to the component
video jack
1
Connect the component video cables to:
the • Y Pb Pr jacks on this product.
the COMPONENT VIDEO input jacks •
on the TV.
Option 3: Connect to the scart jack
1
Connect a scart cable to:
the • TV OUT jack on this product.
the scart input jack on the TV.•
Option 4: Connect to the video (CVBS) jack
1
Connect a composite video cable to:
the • VIDEO OUT jack on this product.
the video input jack on the TV.•
Connect audio cables
Connect the audio from this product to the TV to
allow sound output through the TV.
Pb
COMPONENT
VIDEO IN
Y
Pr
Pb
COMPONENT VIDEO OUT
Y
Pr
VIDEO IN
AUDIO IN
