Philips E Series - Input;Output Terminals

65BDL4052E/75BDL4052E/86BDL4052E
16
1
AC IN
AC power input from the wall outlet.
2
MAIN POWER SWITCH
Switch the main power between On and O.
3
AC OUT
AC power supply to the AC IN jack of a media player.
4
HDMI OUT
Connect to a sink device via an HDMI cable.
5
USB 3.1 C
Support display and touch function.
6
AUDIO IN
Audio input for DVI-D source (3.5mm stereo phone).
7
DVI-D IN
DVI video input.
8
HDMI1 IN
Connect to a source device via an HDMI cable.
9
USB-B-1
Touch connector to PC.
10
HDMI2 IN
Connect to a source device via an HDMI cable.
11
AUDIO OUT
Audio output for external AV device.
12
RJ-45
The LAN control function is used for sending the remote
control signal from the control center.
13
USB-B-3
Touch connector to PC.
14
USB
Connect to a USB storage device.
15
HDMI3 IN
Connect to a source device via an HDMI cable.
16
IR IN /
17
IR OUT
IR signal input/output for the loop-through function.
NOTES:
• The remote control sensor of this display will stop
working if the jack [IR IN] is connected.
• To remotely control your A/V device via this display,
refer to page 26 for IR Pass Through connection.
18
MICRO SD
Insert a Micro SD card.
19
USB SERVICE PORT
Connect your USB storage device and service port.
20
USB 3.0
Connect to a USB storage device.
21
RS232 IN /
22
RS232 OUT
Android RS232 network input/output is reserved for
customized protocol usage from System Integrator.
23
USB 3.0
Connect to a USB storage device.
24
AUDIO OUT
Audio output for external AV device.

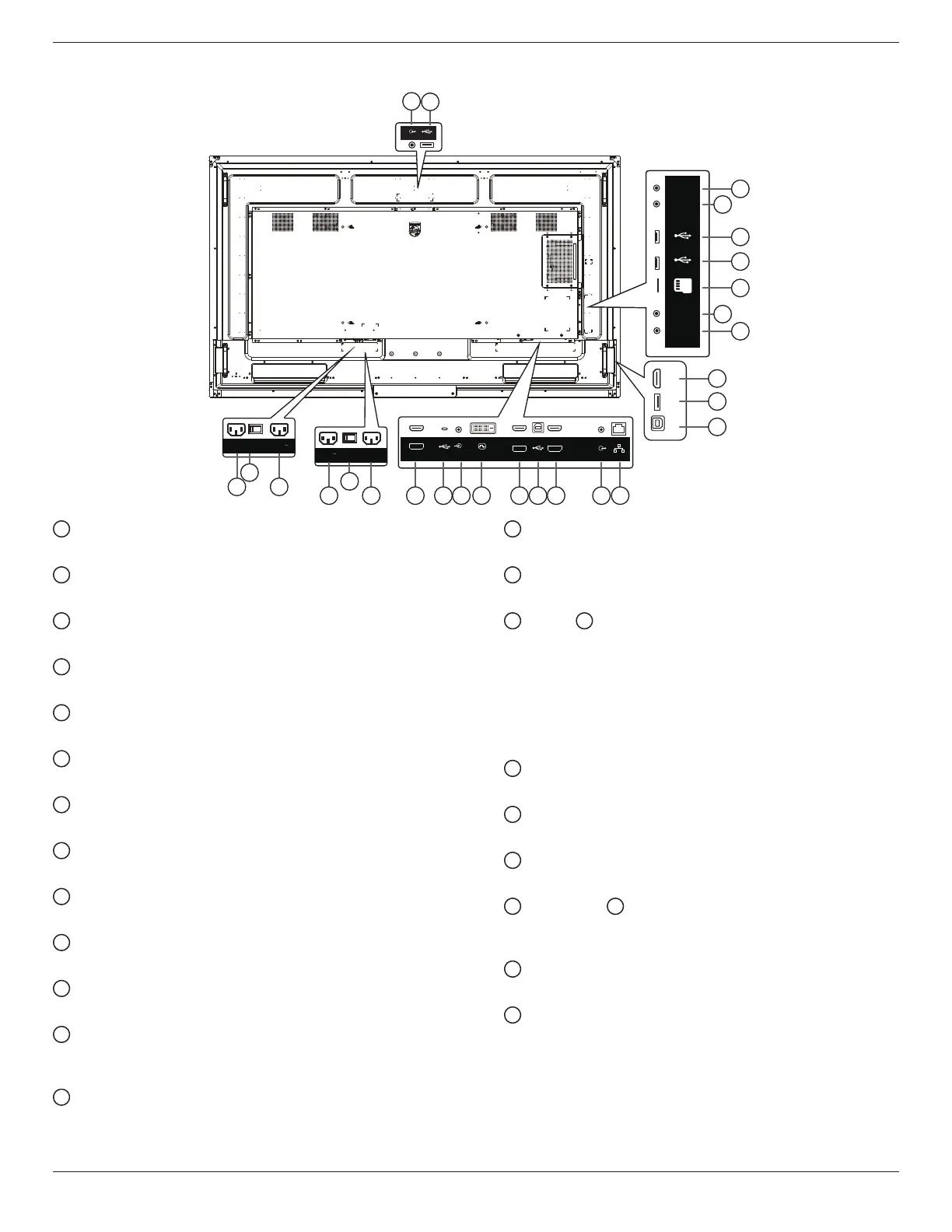

3.2. Input/Output Terminals
100-240V
50/60Hz 2.5A
1 3
2
65BDL4052E
86BDL4052E
75BDL4052E
100-240V
50/60Hz 2.5A
3 4 5 6 7 8 9 10
11 12
1
2
16
18
19
20
22
17
21
USBUSB-B-3
HDMI3 IN
AUDIO OUT
AUDIO IN
RJ45
USB 3.1 C
USB-B-1
HDMI1 IN
HDMI2 IN
HDMI OUT
DVI-D IN
USB 3.0
AUDIO LINE OUT
USB 3.0
RS232
OUT
RS232
IN
USB
Service Port
IR-IN
IR-OUT
MICRO SD
13
14
15
24
23
