Philips EP5345/10 - Service POLICY Grid as Used for Coffee Machine; External Machine Parts

PHI 5000 LATTE GO / GO+ 01 INTRODUCTION
6/9

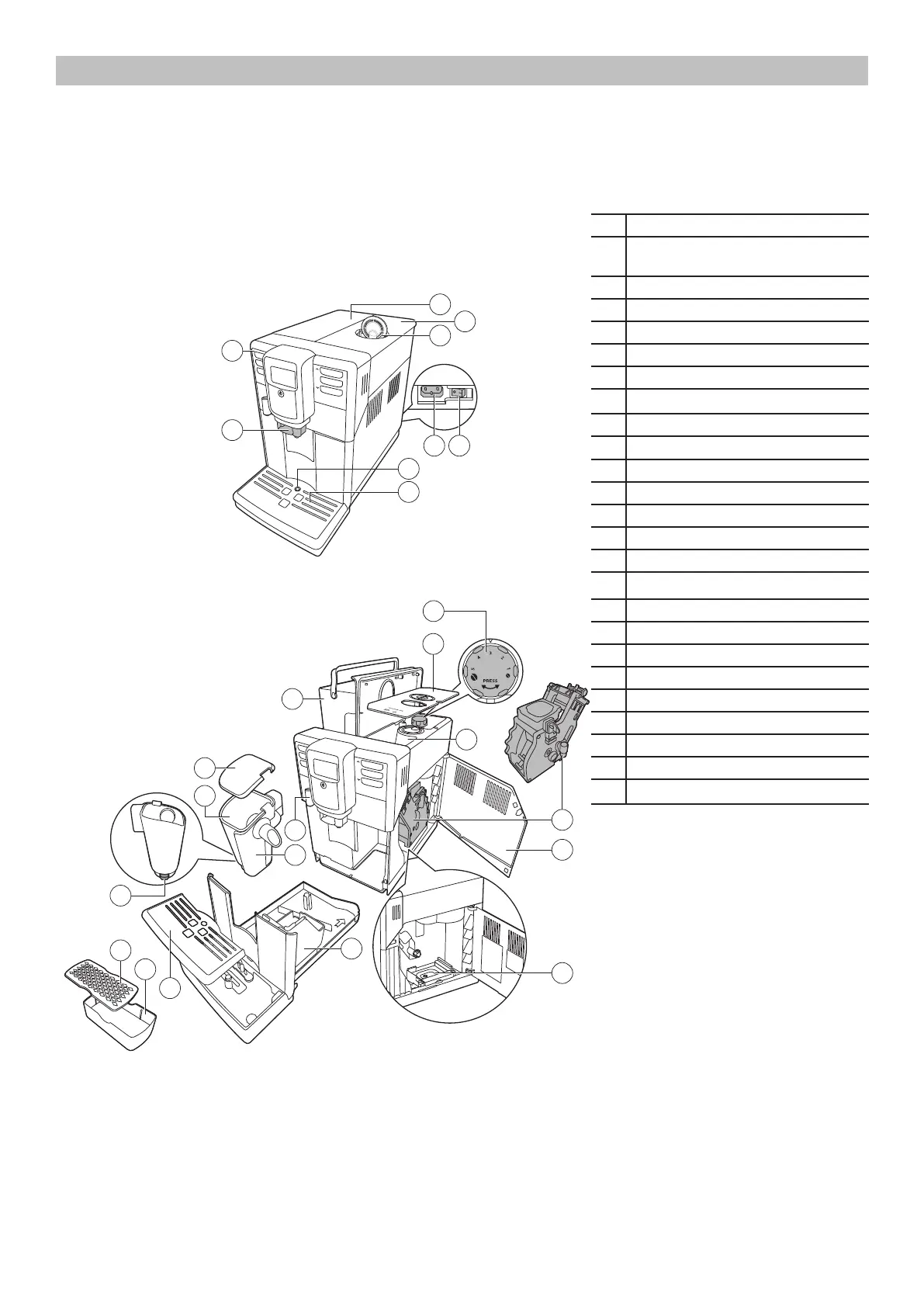

1 Control panel
2 Adjustable coee and milk dispensing
spout
3 Lid of water tank
4 Lid of bean hopper
5 Lid of pre-ground coee compartment
6 Main switch
7 Socket for cord
8 Service door
9 Drip tray full indicator
10 Drip tray
11 Water tank
12 Grind setting knob
13 Cover of bean hopper
14 Bean hopper
15 Brew group
16 Coee residues drawer
17 Coee grounds container
18 Drip tray cover
19 Espresso stand tray
20 Espresso stand cover
21 LatteGo milk container release button
22 LatteGo frame
23 Hot water dispensing spout
24 LatteGo milk container
25 LatteGo storage lid
1.8. External machine parts
1.7. Service POLICY grid as used for coee machine
During the repair is always recommended to use, if possible, single parts rather than the correspondent assem-
bly.
1
2
3
5
4
67
9
10
11
24
22
23
21
20
19
18
17
16
8
15
14
13
12
25
