Diagnostic software
EN 17S/SD/HD 3.1 PDP 5.
5.2 Repair Scenario

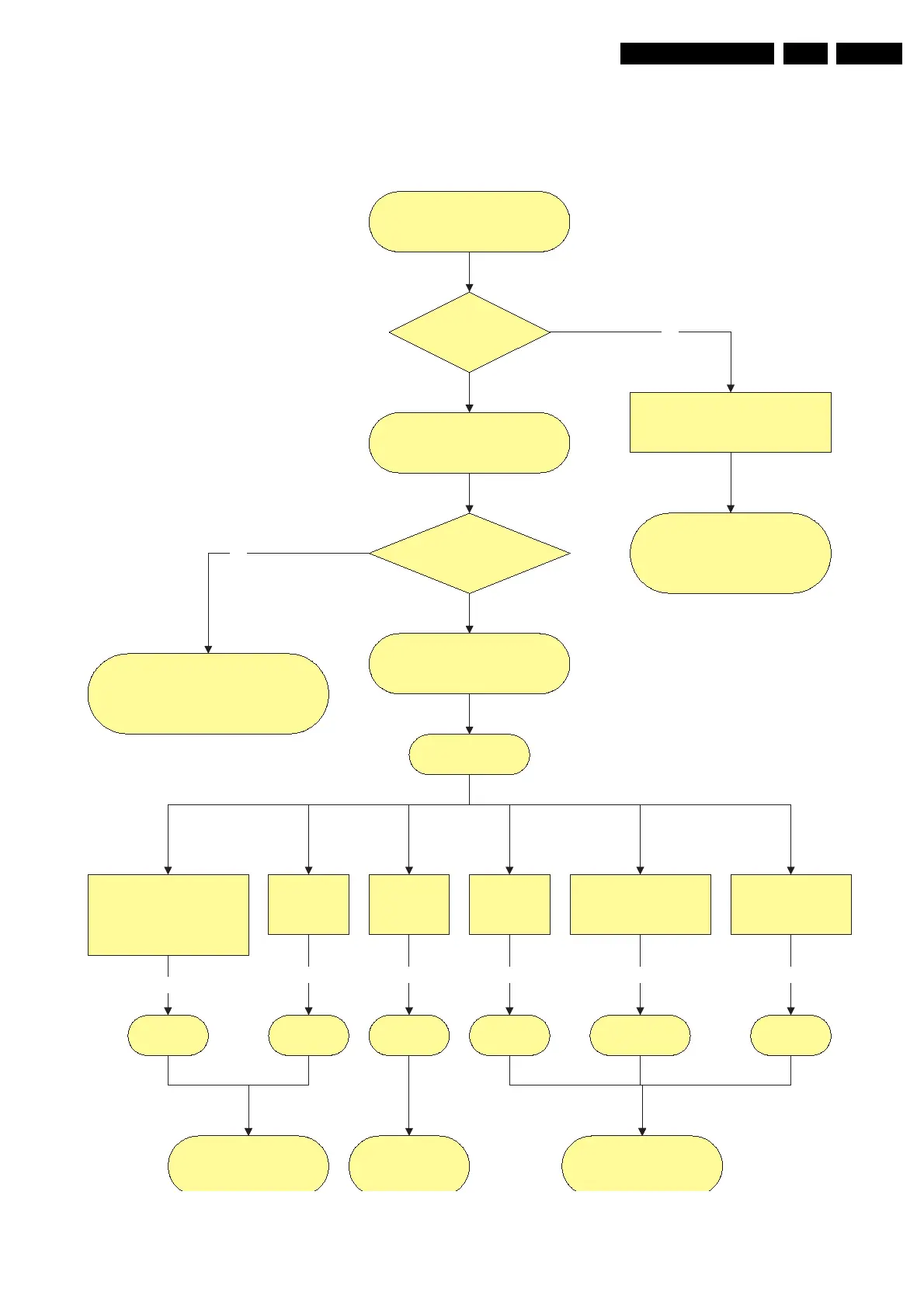

Figure 5-4
Repair Scenario FTV with SDI PDP
Set Type ?
FM242
Repair Scenario 42SDV2
SD
Repair Scenario SDV3
SD SD
First check complete set
Fault Symptom?
Check if LVDS from SCAVIO
or SSB board is OK
Use LVDS Tool when possible
Output of SSB / SCAVIO
is OK?
SDI repair Scenario
Fault finding; Display fault
Repair Philips application
Scavio = FM242
SSB EMG = FTP1.1
SSB EMG 2004 = FTP2.2 with LVDS Tool
No
Power Supply
is working ?
Go to Power Supply Check
& repair scenario
With Philips application
or PDP as stand alone check
No
FTP1.1
SD
42FD9925/01
42FD9935/17/93S
42FD9945/01/12/69/79/98
42FD9953/17/69C/69S/93S
42FD9936/37
LC4.7
42PF9966/37/
79/93/98
42PF9976/37
FTP2.2
HD
42PF9945
37PF9946/12
37PF9936/37
42PF9936D/37
42PF9946/12/79/93/98
42PF9956/12/93
50PF9956/37
50PF9966/12/37/69/
93
50PF9986/37
FTP2..2
LC4.7
FTP2..2
HD
Repair Scenario SDV4
Power supply is not working
No voltage output
