Diagnostic software
EN 20 S/SD/HD 3.1 PDP5.

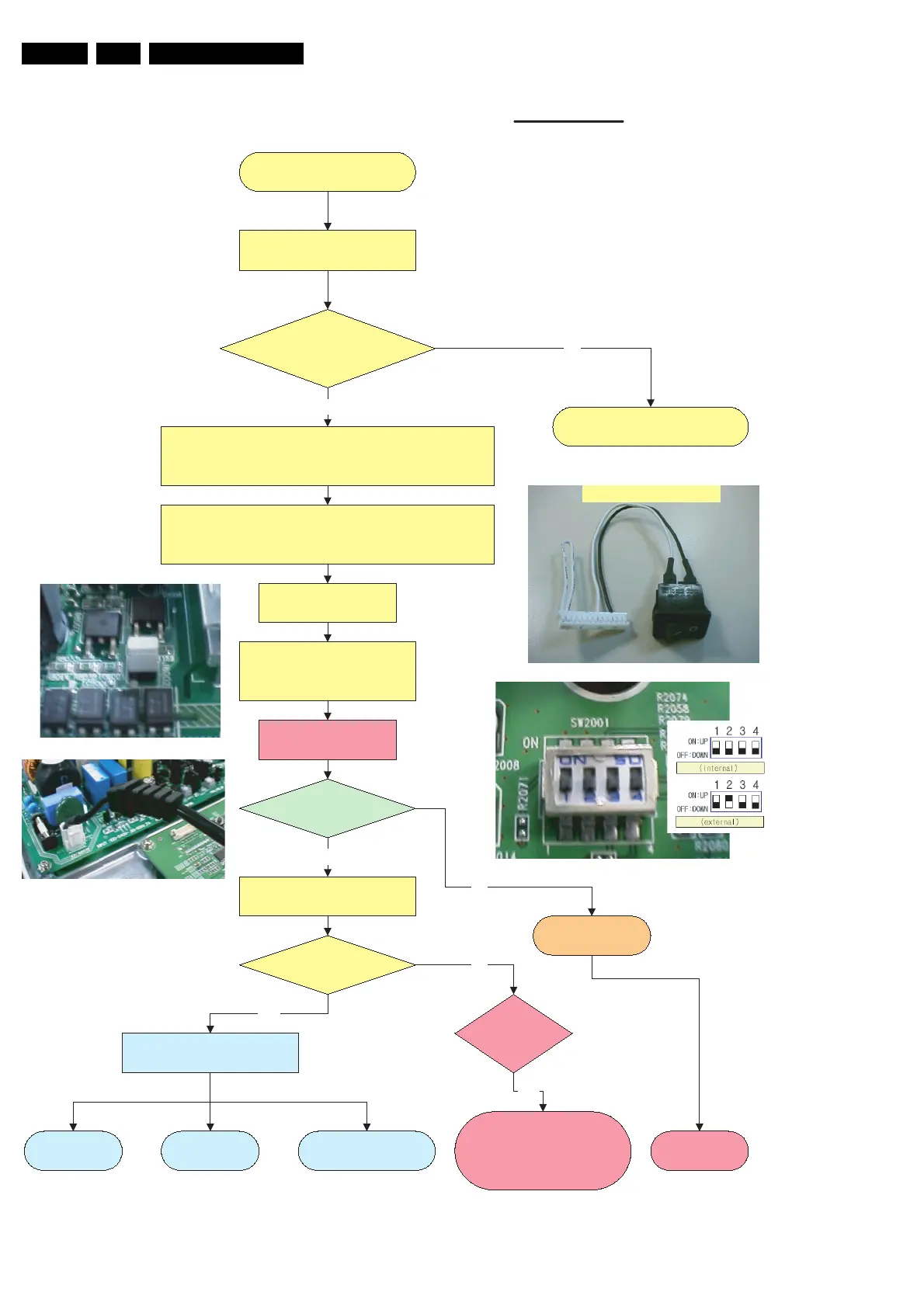

Figure 5-7
Repair Scenario SDI PDP panels as stand alone V2 versions
Repair 42SDV2
PDP identification =
S42SD-YD06
S42SD-YD05
Check PDP Type number
For FM242 disconnect and remove SCAVIO Board
For FTP1.1 disconnect and remove SSB and Audio Board
Connect Jig connector to CN8002 (13 pins)
Short circuit between pin 1 & 2 = On/Off switch (vacation switch)
Switch between pin 8 & 11 standby line switch
Y
No
Go to V3 or V4 repair scenario
Short the Jumper J8002
Set the DIP Switch 2 on
the Logic main board to Off
Plug in the Power cord
Switch Jig connector switch on
Green Stby LED
8003 is on ?
Green LED 8001
& 8002 are on?
Ye s
Standby Supply
is defective
Replace Power
supply board
No
Go to fault finding part
Ye s
Go to operating voltages
don´t exist repair procedure for
V2 versions.
Switch on via Jig connector
switch.
Protection
LED8004 is on?
Ye s
No
No Display Abnormal Display
Some horizontal or
Vertical Lines don´t exist
3122 785 90760
To Next Page
