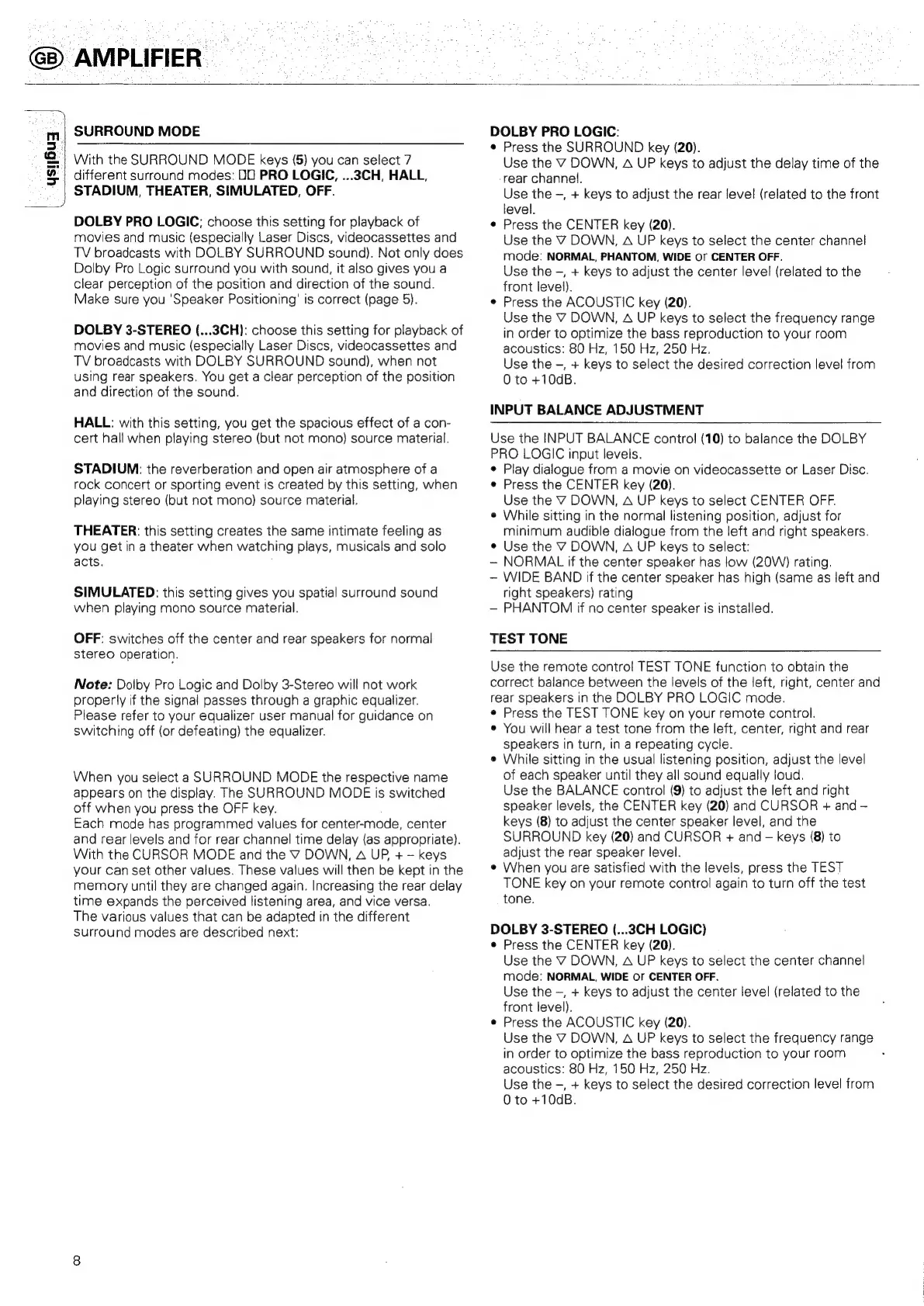

SURROUND MODE
With the SURROUND MODE keys (5) you can select 7
different surround modes: D0 PRO LOGIC, ...3CH, HALL,
STADIUM, THEATER, SIMULATED, OFF.
DOLBY PRO LOGIC; choose this setting for playback of
movies and music (especially Laser Discs, videocassettes and
TV broadcasts with DOLBY SURROUND sound). Not only does
Dolby Pro Logic surround you with sound, it also gives you a
clear perception of the position and direction of the sound.
Make sure you ‘Speaker Positioning’ is correct (page 5).
DOLBY 3-STEREO (...3CH): choose this setting for playback of
movies and music (especially Laser Discs, videocassettes and
TV broadcasts with DOLBY SURROUND sound), when not
using rear speakers. You get a clear perception of the position
and direction of the sound.
HALL: with this setting, you get the spacious effect of a con-
cert hall when playing stereo (but not mono) source material.
STADIUM: the reverberation and open air atmosphere of a
rock concert or sporting event is created by this setting, when
playing stereo (but not mono) source material.
THEATER: this setting creates the same intimate feeling as
you get in a theater when watching plays, musicals and solo
acts.
SIMULATED: this setting gives you spatial surround sound
when playing mono source material.
OFF: switches off the center and rear speakers for normal
stereo operation.
Note: Dolby Pro Logic and Dolby 3-Stereo will not work
properly if the signal passes through a graphic equalizer.
Please refer to your equalizer user manual for guidance on
switching off (or defeating) the equalizer.
When you select a SURROUND MODE the respective name
appears on the display. The SURROUND MODE is switched
off when you press the OFF key.
Each mode has programmed values for center-mode, center
and rear levels and for rear channel time delay (as appropriate).
With the CURSOR MODE and the V DOWN, A UP, + — keys
your can set other values. These values will then be kept in the
memory until they are changed again. Increasing the rear delay
time expands the perceived listening area, and vice versa.
The various values that can be adapted in the different
surround modes are described next:
DOLBY PRO LOGIC:
e Press the SURROUND key (20).
Use the V DOWN, A UP keys to adjust the delay time of the
-rear channel.
Use the -, + keys to adjust the rear level (related to the front
level.
¢ Press the CENTER key (20).
Use the V DOWN, A UP keys to select the center channel
mode: NORMAL, PHANTOM, WIDE Or CENTER OFF.
Use the -, + keys to adjust the center level (related to the
front level).
¢ Press the ACOUSTIC key (20).
Use the V DOWN, A UP keys to select the frequency range
in order to optimize the bass reproduction to your room
acoustics: 80 Hz, 150 Hz, 250 Hz.
Use the -, + keys to select the desired correction level from
0 to +10dB.
INPUT BALANCE ADJUSTMENT
Use the INPUT BALANCE control (10) to balance the DOLBY
PRO LOGIC input levels.
e Play dialogue from a movie on videocassette or Laser Disc.
e Press the CENTER key (20).
Use the V DOWN, A UP keys to select CENTER OFF.
While sitting in the normal listening position, adjust for
minimum audible dialogue from the left and right speakers.
e Use the V DOWN, A UP keys to select:
NORMAL if the center speaker has low (20W) rating.
— WIDE BAND if the center speaker has high (same as left and
right speakers) rating
— PHANTOM if no center speaker is installed.
I
TEST TONE
Use the remote control TEST TONE function to obtain the
correct balance between the levels of the left, right, center and
heat speakers in the DOLBY PRO LOGIC mode.
¢ Press the TEST TONE key on your remote control.
¢ You will hear a test tone from the left, center, right and rear
speakers in turn, in a repeating cycle.
e While sitting in the usual listening position, adjust the level
of each speaker until they all sound equally loud.
Use the BALANCE control (9) to adjust the left and right
speaker levels, the CENTER key (20) and CURSOR + and -
keys (8) to adjust the center speaker level, and the
SURROUND key (20) and CURSOR + and — keys (8) to
adjust the rear speaker level.
e When you are satisfied with the levels, press the TEST
TONE key on your remote control again to turn off the test
tone.
DOLBY 3-STEREO (...3CH LOGIC}
e Press the CENTER key (20).
Use the V DOWN, A UP keys to select the center channel
mode: NORMAL, WIDE or CENTER OFF.
Use the -, + keys to adjust the center level (related to the
front level).
e Press the ACOUSTIC key (20).
Use the V DOWN, A UP keys to select the frequency range
in order to optimize the bass reproduction to your room
acoustics: 80 Hz, 150 Hz, 250 Hz.
Use the -, + keys to select the desired correction level from
0 to +10dB.
