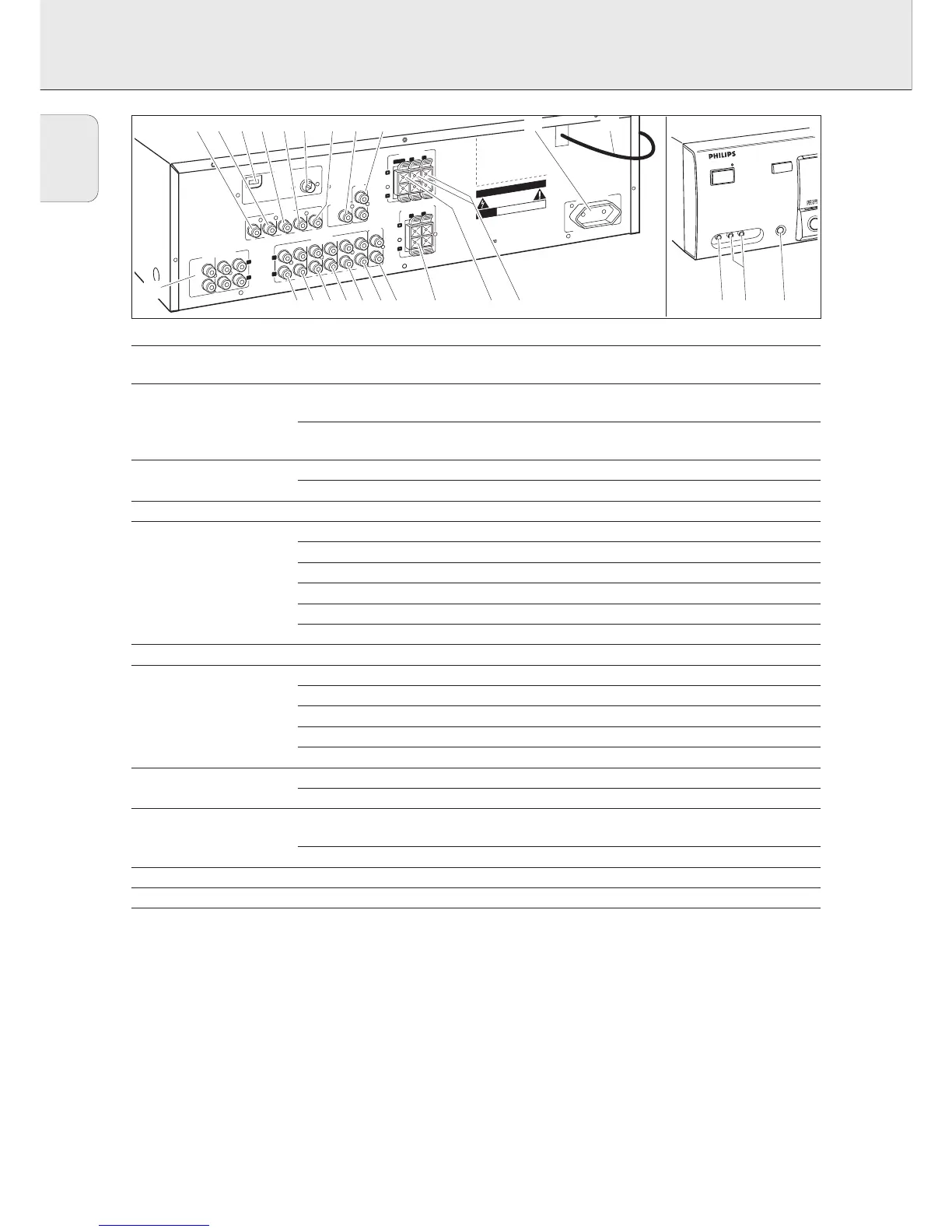

CONNECTORS
Connectors Connectors name Connect to:
6.3 mm headphone socket 1 PHONES A headphone with a 6.3 mm plug.
at the front
Audio and video inputs 2 FRONT AV / GAME Left and right audio out sockets of appliances such as video cameras
at the front (FR 760 only) and game consoles.
3 FRONT AV / GAME Video out sockets of appliances such as video cameras and game
consoles.
FRONT SPEAKERS 4 R, L Right and left front speaker.
5 CENTER Center speaker.
SURROUND SPEAKERS 6 R, L Right and left surround speaker.
AUDIO IN/OUT 8 CDR/TAPE OUT Input of a CD recorder or a tape deck.
9 CDR/TAPE IN Output of a CD recorder or a tape deck.
0 CD IN Output of a CD player.
! TV IN Output of a TV.
@ VCR OUT Input of a video recorder.
# VCR IN Output of a video recorder.
6-channel input $
6 CHANNEL /DVD INPUT
6-channel output of appliances such as DVD or Laserdisc players.
VIDEO IN/OUT (FR 760 only) % DVD IN Output of a DVD player.
^ MON OUT Input of a monitor (e. g. the TV).
* VCR IN Output of a video recorder.
( VCR OUT Input of a video recorder (for recording).
¡ TV IN Output of a TV.
Antenna connectors &
AM LOOP
Frame antenna supplied.
) FM 75 Ω Wire antenna supplied or exterior antenna.
Preamplified outputs 7 CENTER PRE-OUT Input of a TV when it is used as the center speaker (only possible
when the CINEMA LINK system bus is connected).
™
SUBWOOFER PRE-OUT
Input of a powered subwoofer.
System control bus £ CINEMA LINK System control bus sockets of a Philips TV with CINEMA LINK.
Mains outlet ≤ AC OUTLET Supplies same voltage as mains. Up to 100 W total permitted load.
Mains lead ∞ After all other connections have been made, connect the
mains lead to the wall socket.
