3. Lift up and out
1. Place screw driver
(flat side) between
the cassette cover
& cassette door
2. Twist screw driver

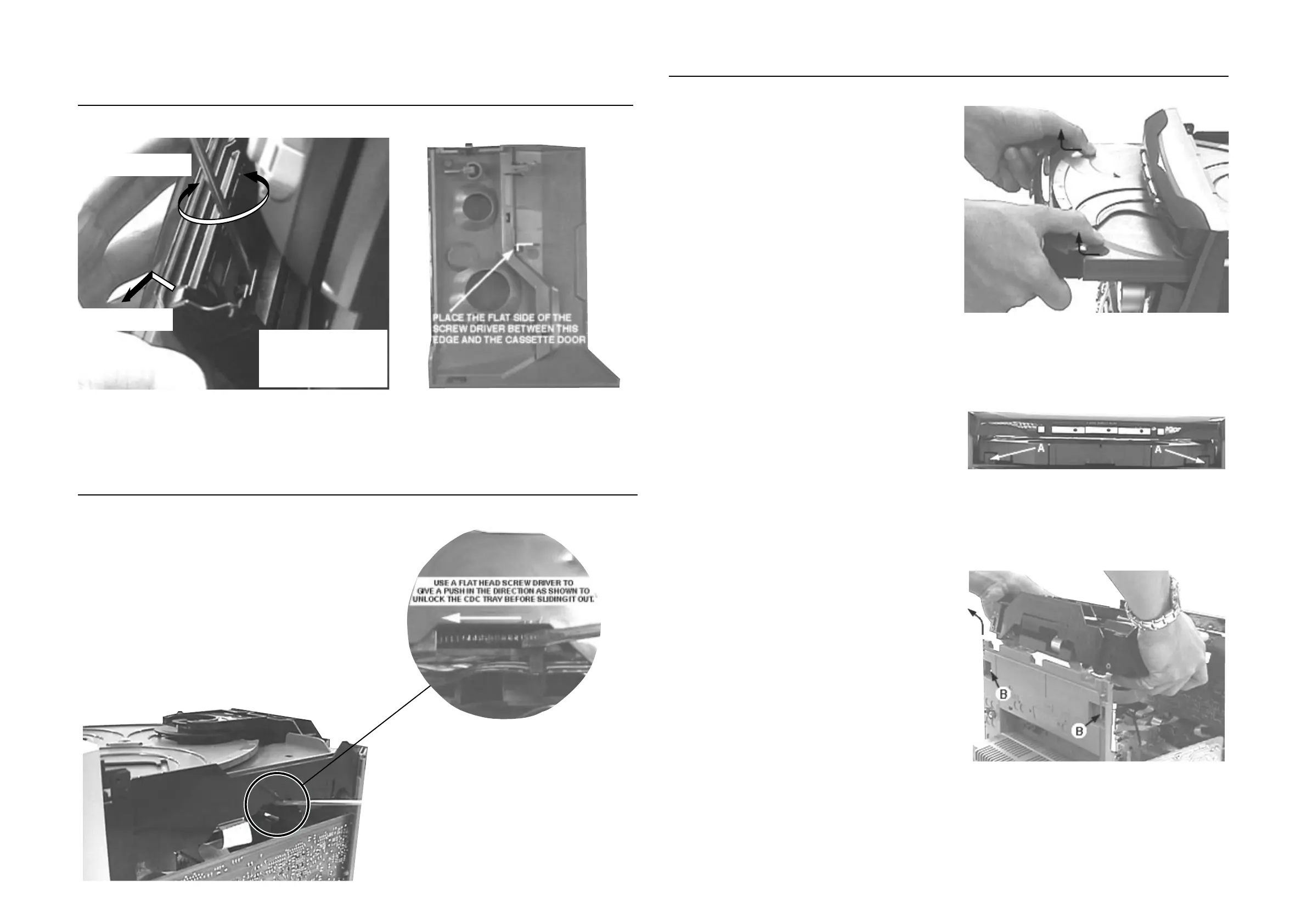

DISMANTLING INSTRUCTIONS
Dismantling of the Cassette Cover
1) Loosen 4 screws to remove the Cover Top (pos 255) of the
set.
2) Loosen 2 screws to remove the Panel Left (pos 253) and
2 screws to remove the Panel Right (pos 254) of the set.
3) Slide out the CDC Tray as shown in the diagram below with
the help of a flat head screw driver.
Cassette Cover
Remove Cassette Cover
Dismantling of the CDC Module and Front Panel
Remove CDC Module
4) Remove the Cover Tray CDC (pos 106) as indicated.
Front View CDC
Remove Cover Tray CDC
Dismantling of the CDC Module and Front Panel
Sliding out the CDC Tray
5) Loosen 2 screws A and 2 screws B to remove the CDC
Module (pos 1105) as indicated.
6) Remove 2 screws (pos 226) at the bottom to separate the
Front Panel Assembly from the Plate Bottom (pos 265).
2-1 2-1
