Philips FWD185 - Connecting the TV Set

10
English
IMPORTANT!
–You only need to make one video
connection from the following options,
according to the capabilities of your TV
system.
– S-Video or Component Video
connection provides higher picture
quality. These options must be available
on your TV set.
– Connect the system directly to the TV
set.
Using Video In jack (CVBS)
● Use the composite video cable (yellow) to
connect the system’s VIDEO jack to the video
input jack (or labeled as A/V In, Video In,
Composite or Baseband) on the TV set.
Using LINE OUT jack (L/R)
● To listen to this system channels through TV , use
the audio cables (white/red) to connect LINE
OUT (L/R) jacks to the corresponding AUDIO
IN jacks on the TV set.
Using component Video In jack (Pr Pb Y)
● Use the component video cables (red/blue/
green) to connect the system’s PR PB Y jacks
to the corresponding Component video input
jacks (or labeled as Pr, Pb, Y or YUV) on the TV
set.
● To listen to this system channels through TV , use
the audio cables (white/red) to connect LINE
OUT (L/R) jacks to the corresponding AUDIO
IN jacks on the TV set.
OUT
IN
8
ANTENNA
FM
FM
MW
OUT
IN
FM
MW
110-240 V~50 -60 HZ
8
Connections

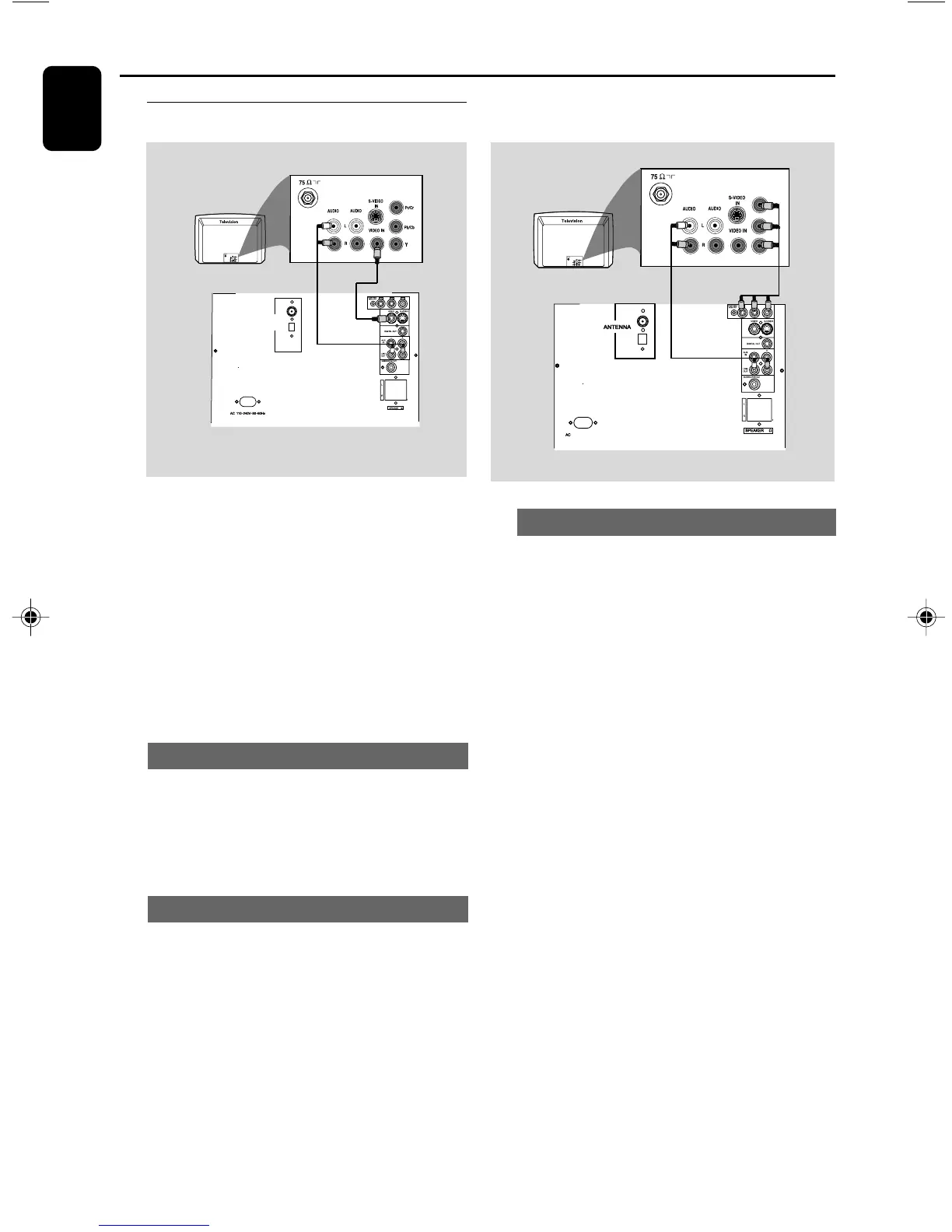

Step 3: Connecting TV set
