Philips FX20 - Mechanical and Dismantling Instructions; Dismantling Procedure

Mechanical and Dismantling Instructions
Dismantling Instruction
The following guidelines show how to dismantle the player.
6-1
Detailed information please refer to the model set.
Step 1:Open the top cover.Remove 5 screws on the back panel and 2 screw on the left and right sides,
then open the cover from the back panel side.(Figure 1)

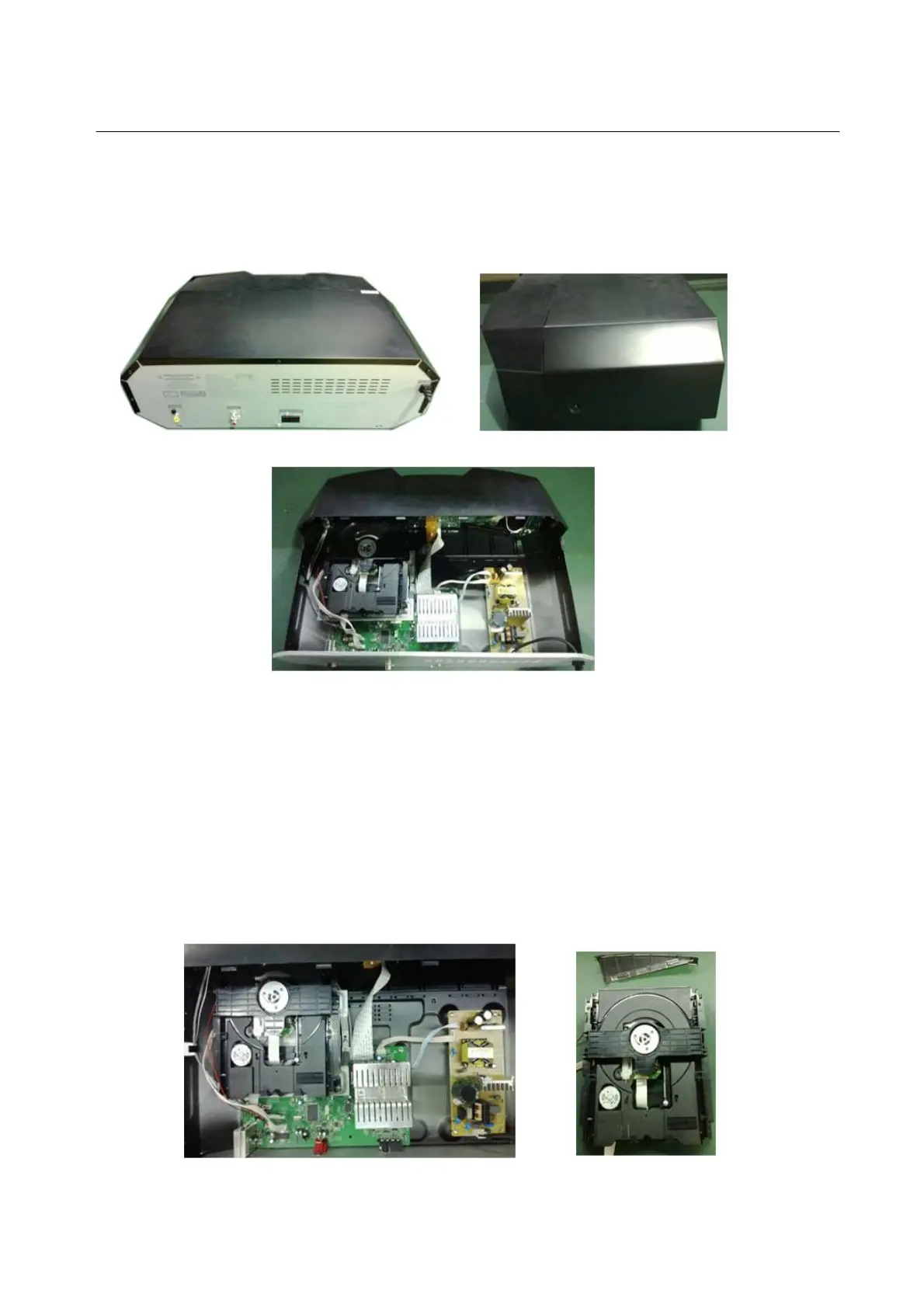

(Figure 1)
Step 2:Dismantle the loader.Disconnect the connectors on main board.Remove 2 screws besides the
loader.Pull up the loader from the back panel side,the CD door will be separated at the same
time.(Figure 2)
(Figure 2)
