When using a pipe or roof mount, make the
following connections.
Use either Biphase or RS-232, not both.

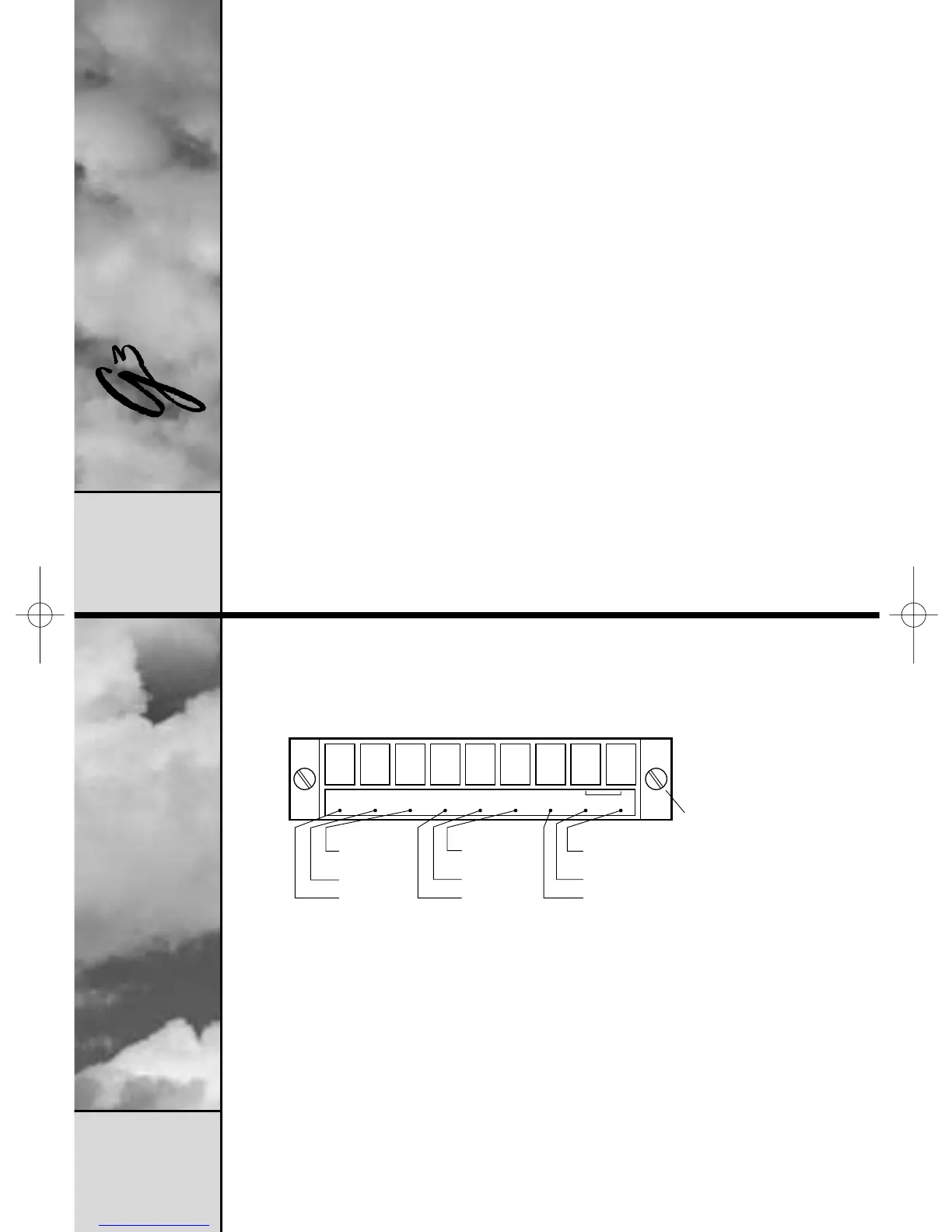

Connect Video (BNC) cable and the CONTROL
connector.Tighten screws on control connector.
A dome in a star configuration or the last dome
on a daisy chain requires a 110 Ω terminating
resistor across pin 8 (C+) and pin 9 (C-).
NOTE: Daisy chain configuration is not possible
if fiber optic accessory is used.
Attach the installation-assist cable* to the eye-
hook on the top of the dome and close the
safety cable.
* For pipe mounting, user must provide a
cable. See mounting guide for instructions.
