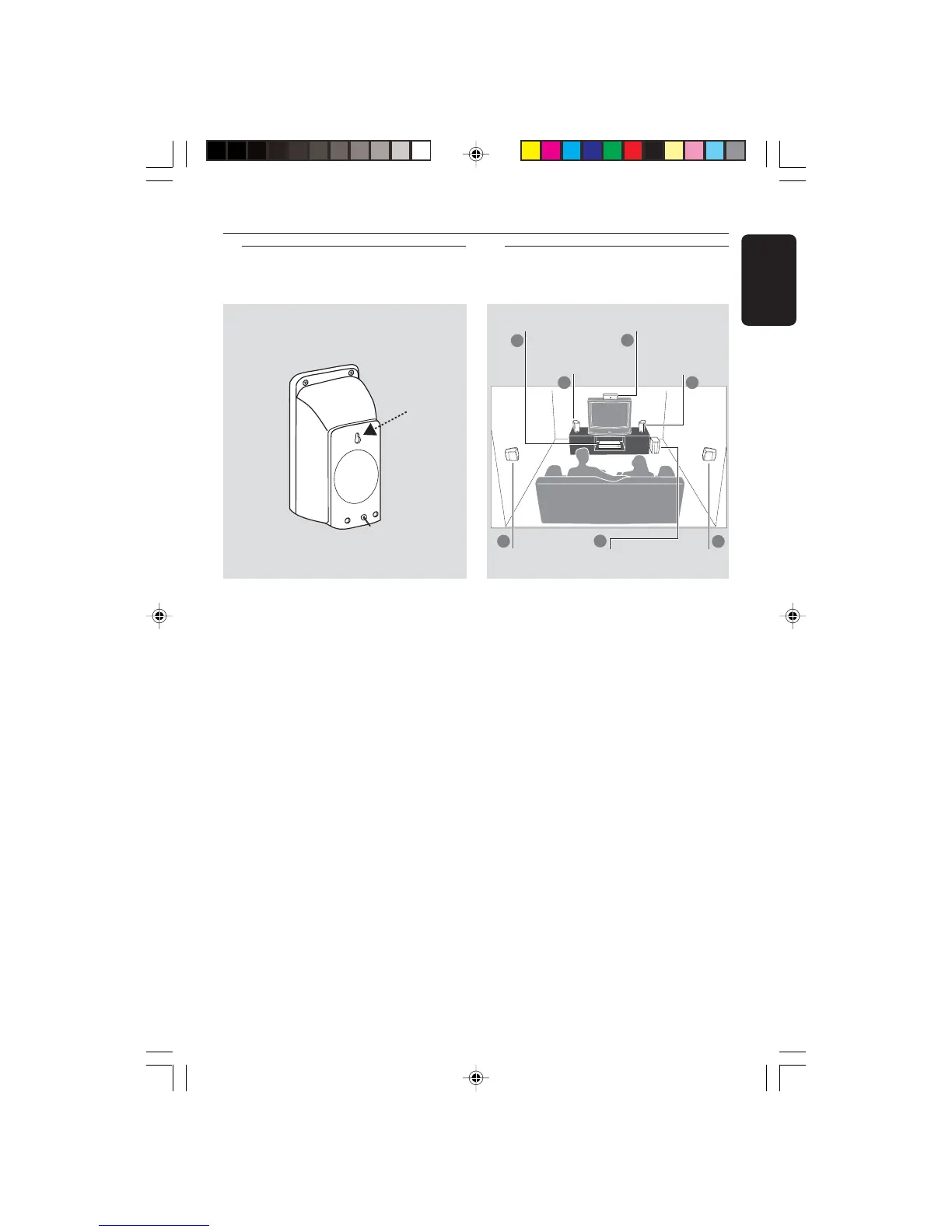

Step 2: Placing the speakers
and subwoofer
Front Speaker
(Left)
Front Speaker
(Right)
AV Receiver
Subwoofer
Rear speaker
(Right)
Rear speaker
(Left)
Center
speaker
You can choose to hang the speakers on
the wall. Mount a screw (not supplied)
on the wall where the speaker is to be
hung and hook the speaker securely onto
Step 1: Set up the speakers
For best possible surround sound, all the
speakers (except subwoofer) should be
placed at the same distance from the
listening position.
1 Place the front left and right speakers at
equal distances from the TV and at an
angle of approximately 45 degrees from
the listening position.
2 Place the center speaker above the TV or
the AV receiver so that the center
channel’s sound is localised.
3 Place the rear speakers at normal
listening ear level facing each other or
mounted on the wall.
4 Place the subwoofer on the floor near
the TV.
Helpful Hints:
–To avoid magnetic interference, do not
position the front speakers too close to your
TV.
– Allow adequate ventilation around the AV
receiver.
the mounted screw.
CAUTION!
You should get a qualified person to
attach the brackets to the wall. DO
NOT do it by yourself to avoid
unexpected damage to the
equipment or injury to personnel.
Helpful Hints:
– The rear speakers are labelled as REAR L
(left) or REAR R (right).
– The front speakers are labelled as
FRONT L (left) or FRONT R (right).
