SERVICE POSITIONS
Service position A
Service position B
Note: In some service positions the components or copper patterns of one board may risk touching its neighbouring pc
boards or metallic parts. To prevent such short-circuit use a piece of hard paper or other insulating material between them.
3-2

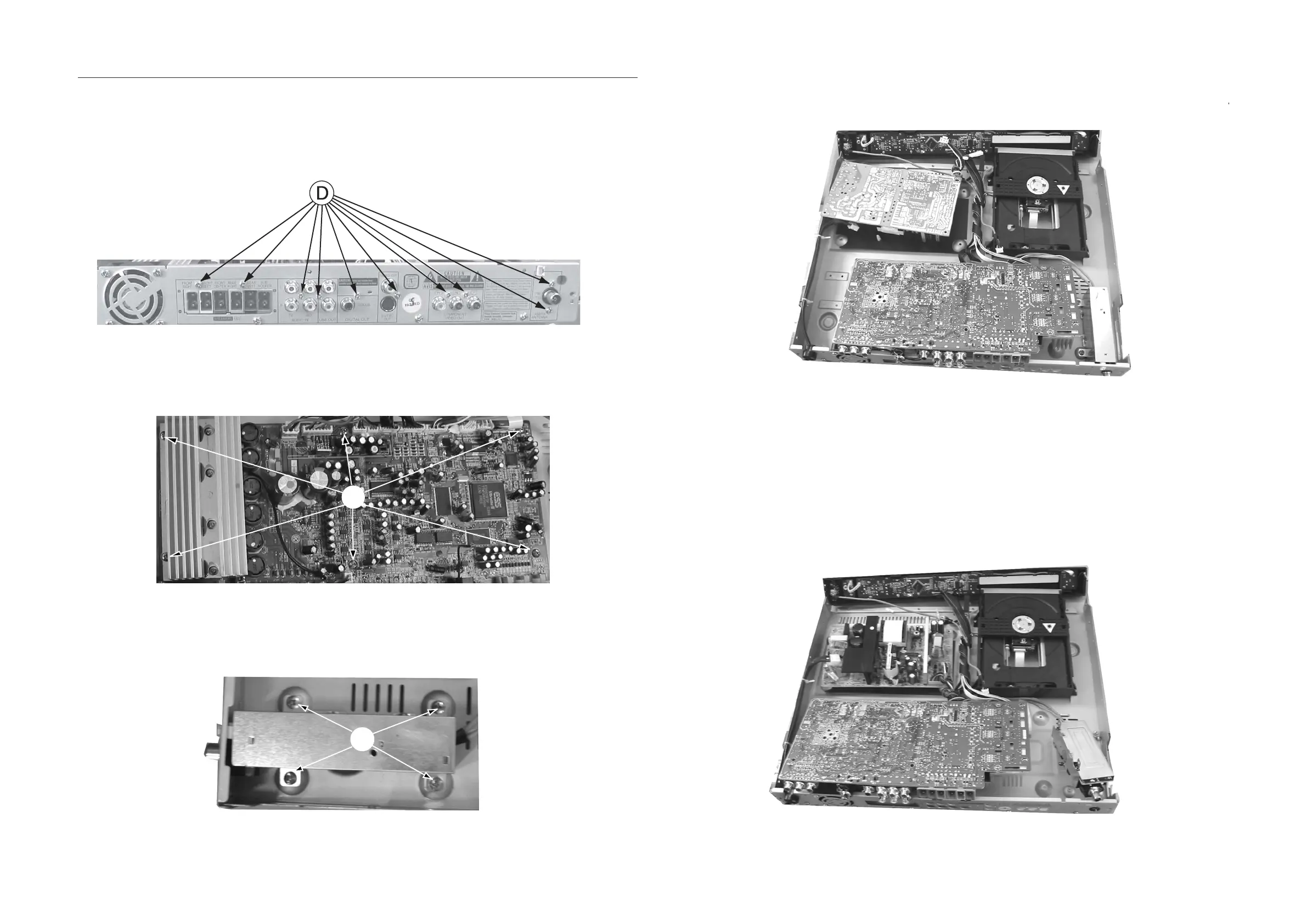

Dismantling of the Main Board and Tuner Board
1) Loosen 10 screw " D " at the back panel as shown in figure
7 .
2) Loosen 6 screw " E " on the top of main board as shown in
figure 8.
3) Loosen 4 screw "F" on the top of tuner board as shown in
figure 9.
Figure 8
Figure 7
E
Figure 9
F
