8-2

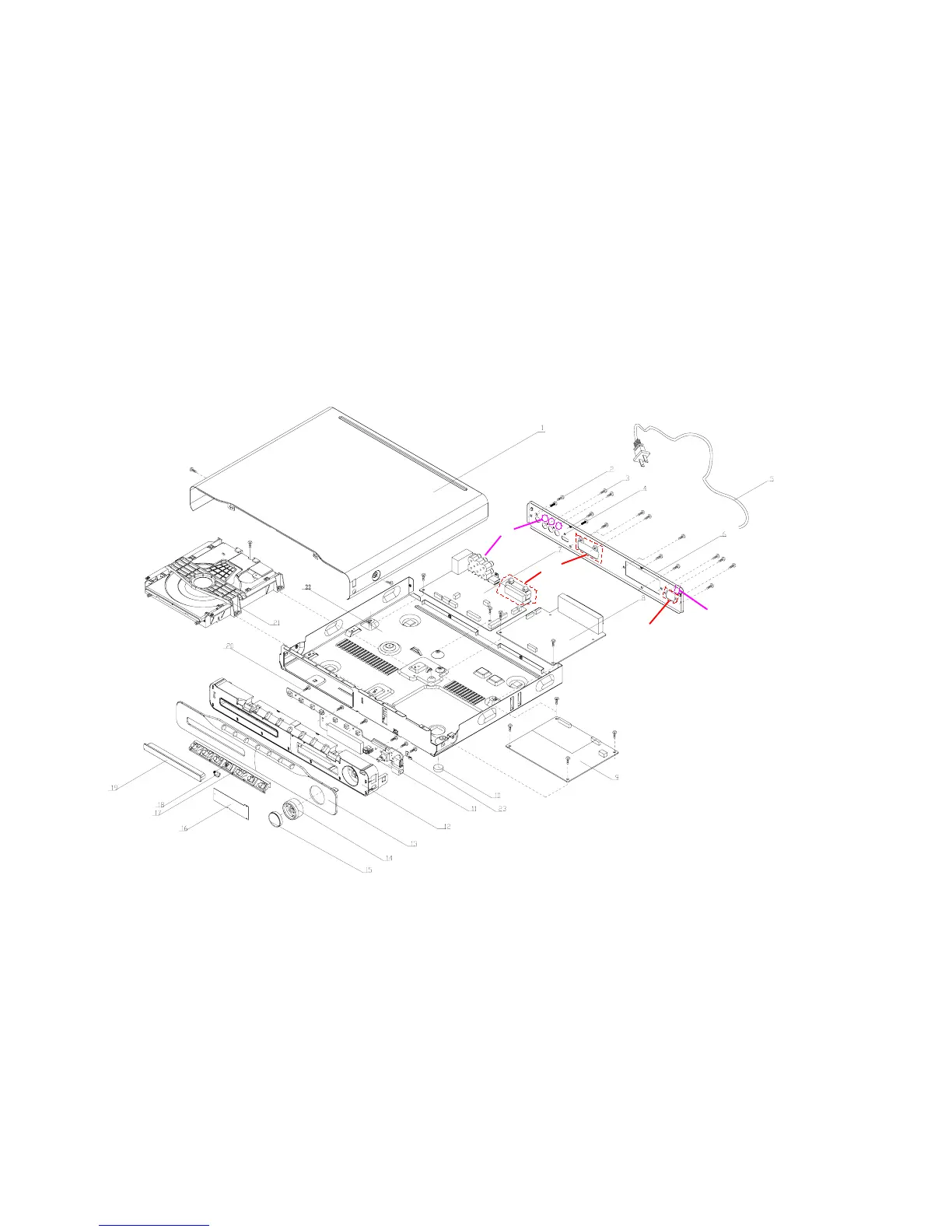

Exploded view for HTS3510/12/55/51/78/93/94/98:
It is general mechanical exploded view for HTS3510/12/55/51/93/94/98, detailed informations pls refer to
ASSY1 includes components:12.13.16.17.18
ASSY2 includes components:14.15
C
B
A
D
Mechanical contrast:
the model set.
For /12: A (RCA 3 holes)+B (Scart socket)+C (Detachable power cord socket)
For /55/78/98: A (RCA 6 holes)+C (Detachable power cord socket)
For /51/93/94: A (RCA 6 holes)+D (Fixed power cord socket)
