Mechanical and Dismantling Instructions
Dismantling Instruction
The following guidelines show how to dismantle the player.

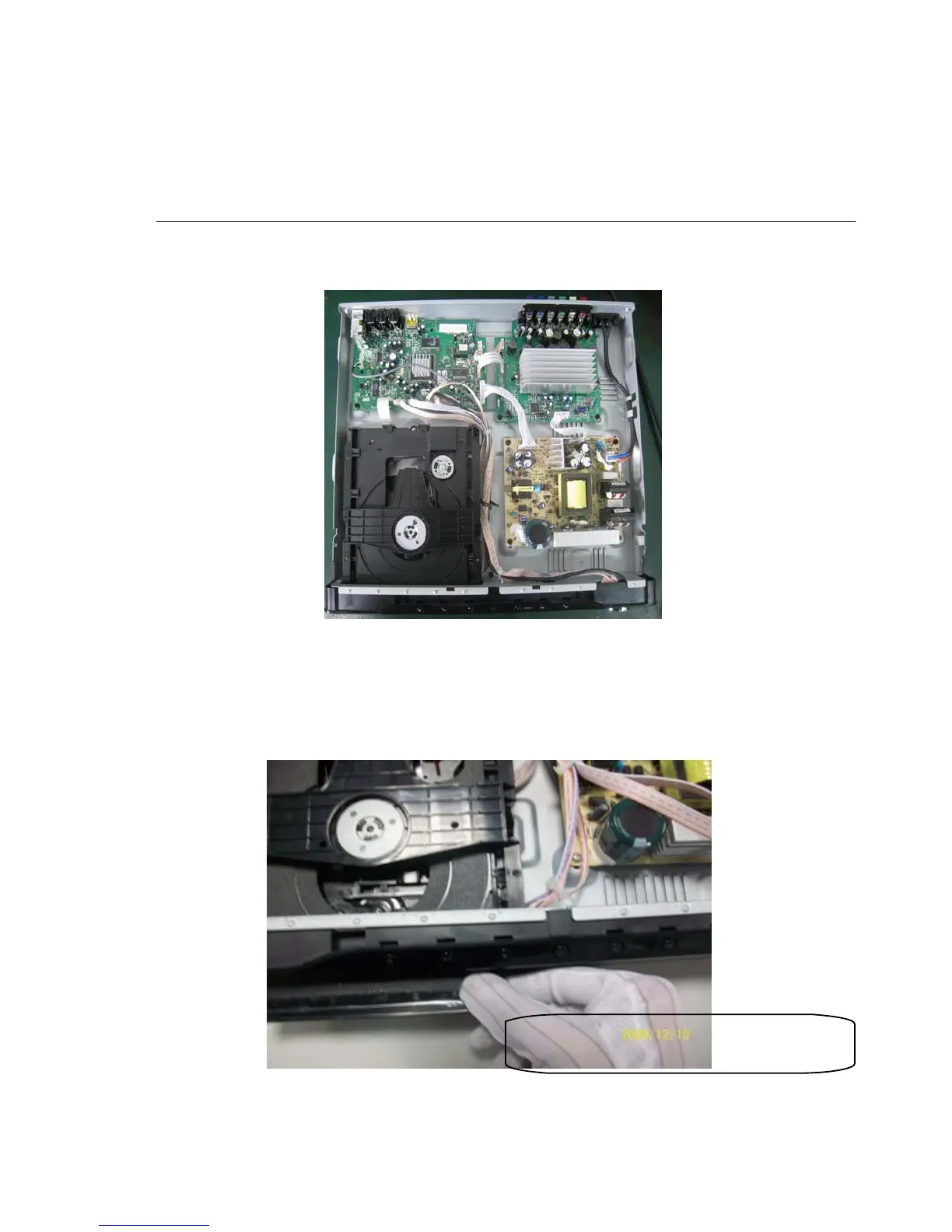

Step1: Remove 6 screws around the Top Cover, and then remove the Top Cover (Figure 1).
Figure 1
Step2: If it is necessary to dismantle Loader or Front Panel, the Front door should be removed first. (Figure 2)
Note: Make sure to operate gently otherwise the guider would be damaged.
Figure 2
3-1
Please kindly note that dismantle the front door
assembly carefully to avoid damage tray and the front door.
Detailed information please refer to the model set.
