Mechanical and Dismantling Instructions
Dismantling Instruction

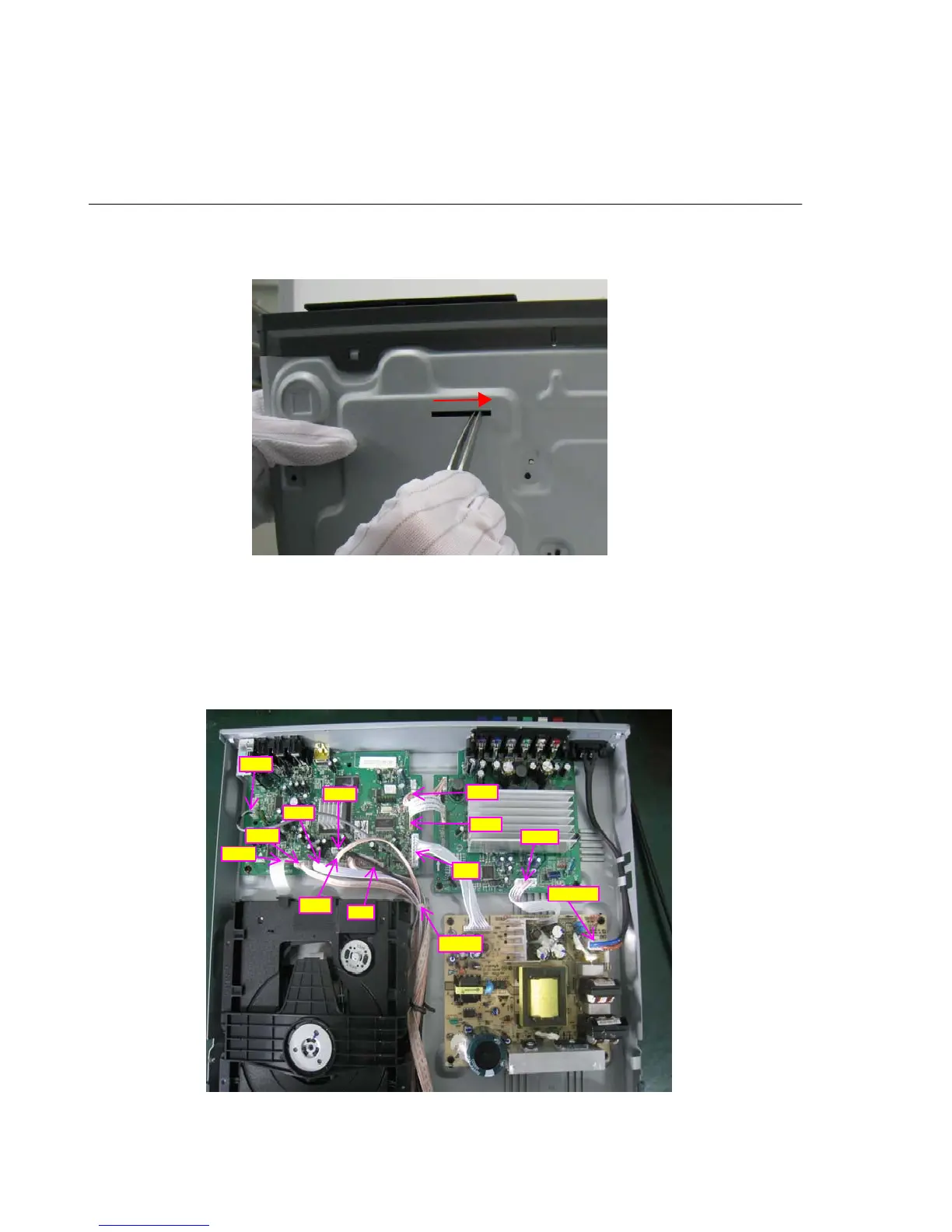

Step3: If the tray can’t open in normal way, you can make it through the instruction as below (Figure 3).
Note: Make sure to operate gently otherwise the guider would be damaged.
Figure 3
Step4: Dismantling Front Panel, disconnect the connectors (XP9, XP16, XP18, XP20), need cut 2 twist tie down, and release
2 snaps of front panel & 2 snaps of bottom cabinet , then gently pull the Panel out from the set. (Figure 4 - Figure 6)
Figure 4
3-2
Detailed information please refer to the model set.
XP1
XP9
XP10
XP11
XP12
XP13
XP14
XP16
XP20
XS703
CON501
XP18
Twist tie
