Technical Specifications, Connections, and Chassis Overview
EN 4 LC4.31E AA1.
EXT2: Video Y/C - in, CVBS - In/Out, Audio - In/Out

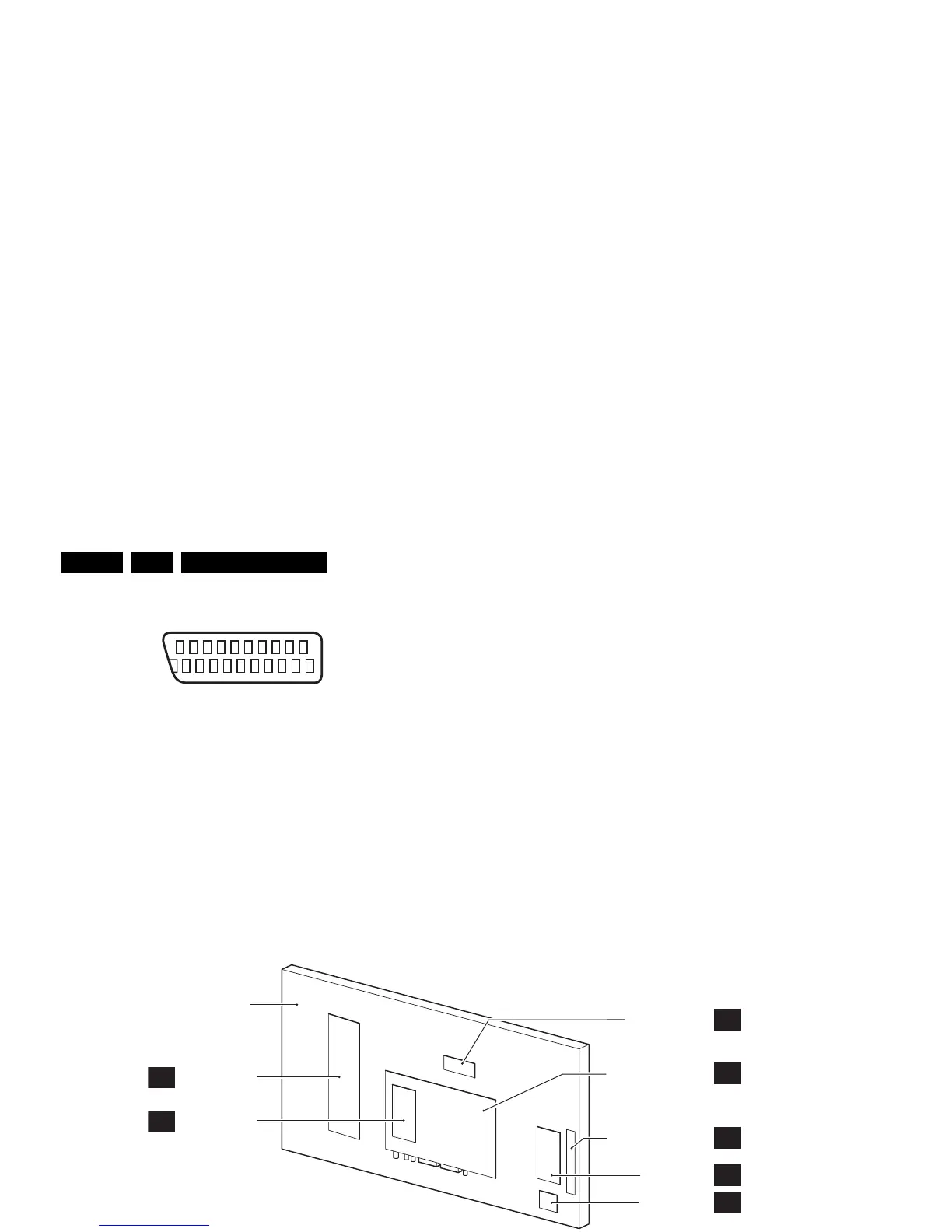

Figure 1-5 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kΩ k
2 - Audio R 0.5 V
RMS
/ 10 kΩ j
3 - Audio L 0.5 V
RMS
/ 1 kΩ k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kΩ j
7-n.c.
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16 : 9
9.5 - 12 V: EXT 4 : 3 j
9 - Ground Green Gnd H
10 - n.c.
11 - n.c.
12 - n.c.
13 - Ground Red Gnd H
14 - Ground Gnd H
15 - YC/C - in 0.7 V
PP
/ 75 Ω j
16 - n.c.
17 - Ground Video Gnd H
18 - Ground Gnd H
19 - Video Mon. CVBS 1 V
PP
/ 75 Ω k
20 - YC/Y - in 0.7 V
PP
/ 75 Ω j
21 - Shield Gnd H
1.3 Chassis Overview
Figure 1-6 Chassis overview
To Next Page
