Wiring Diagram 37”-42” (with IPB PSU)
1304
11P
1G51
30P
1735
4P
1M20
7P
1C01
9P
1M01
3P
1M20
7P
1304
11P
CN1
2P3
INLET

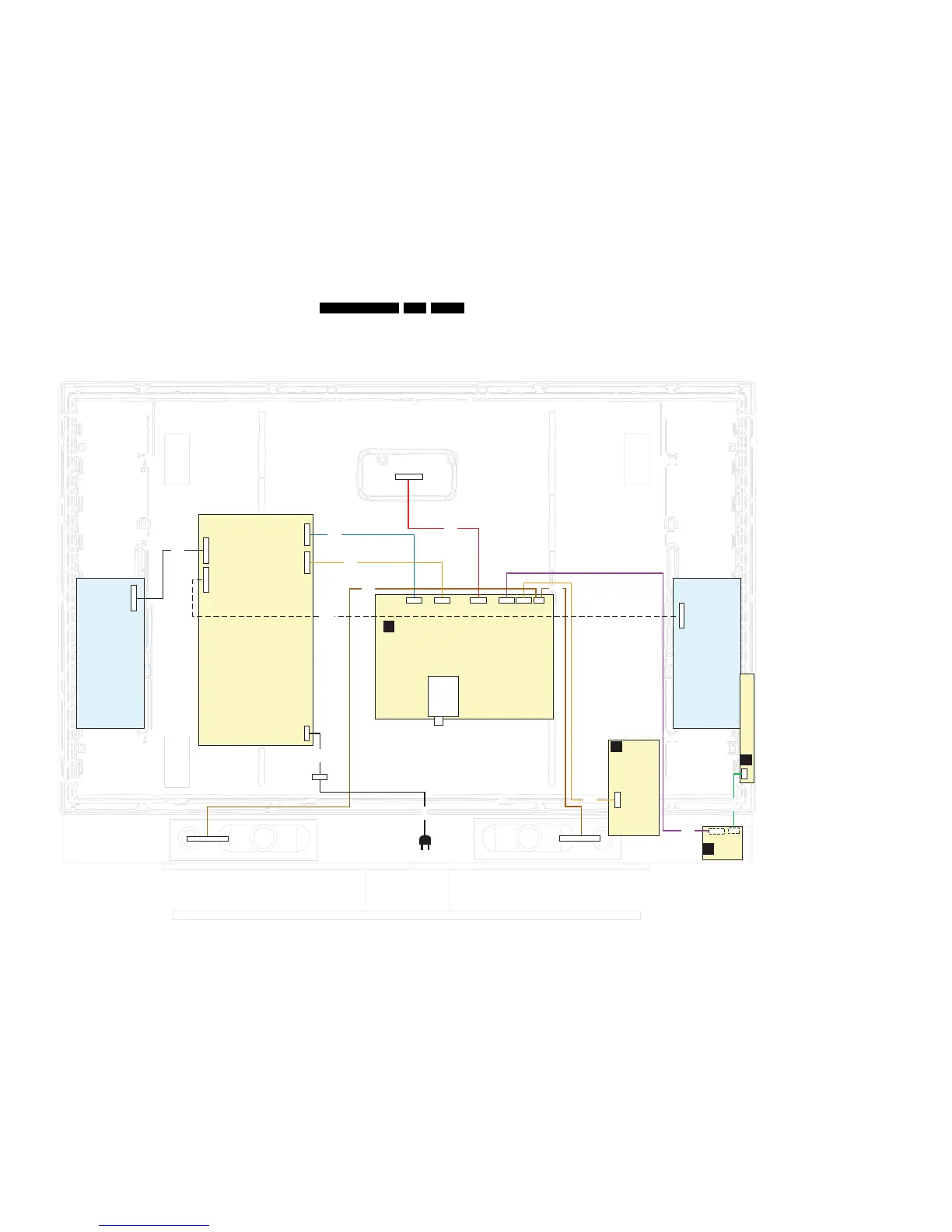

WIRING 37”- 42” LCD (STYLING ME7 PROMO SET)
H_16940_017.eps
020807
RIGHT SPEAKER
LEFT SPEAKER
B
SSB
E
KEYBOARD CONTROL
D
SIDE I/O
J
IR/LED/LIGHT
SENSOR
8304
8M20
8735
8002
1M01
3P
8M01
LVDS
30P
1P11
8P
8G51
MAIN SUPPLY
INTEGRATED POWER BOARD
PANEL HV
CONNECTOR
CN207
2P
8C01
8P11
8191
8192(UK)
(1005)
(1116)
(1114)
(1112)
LCD DISPLAY
(1004)
CN202
8P
CN201
9P
CN206
2P
PANEL HV
CONNECTOR
High Voltage (HV) Cable to panel (2x) is
provided by supplier on PSU for
Delta’s Integrated power Board (IPB)
CN201
1. -12Va
2. +12Va
3. GND
4. 5.2Vs
5. 5.2Vs
6. 5.2Vs
7. SGND
8. SGND
9. SGND
CN202
1. BL-DIM
2. PG
3. BL-ON
4. SGND
5. BOOT
6. PSON
7. 5.2Vs
8. 12V
