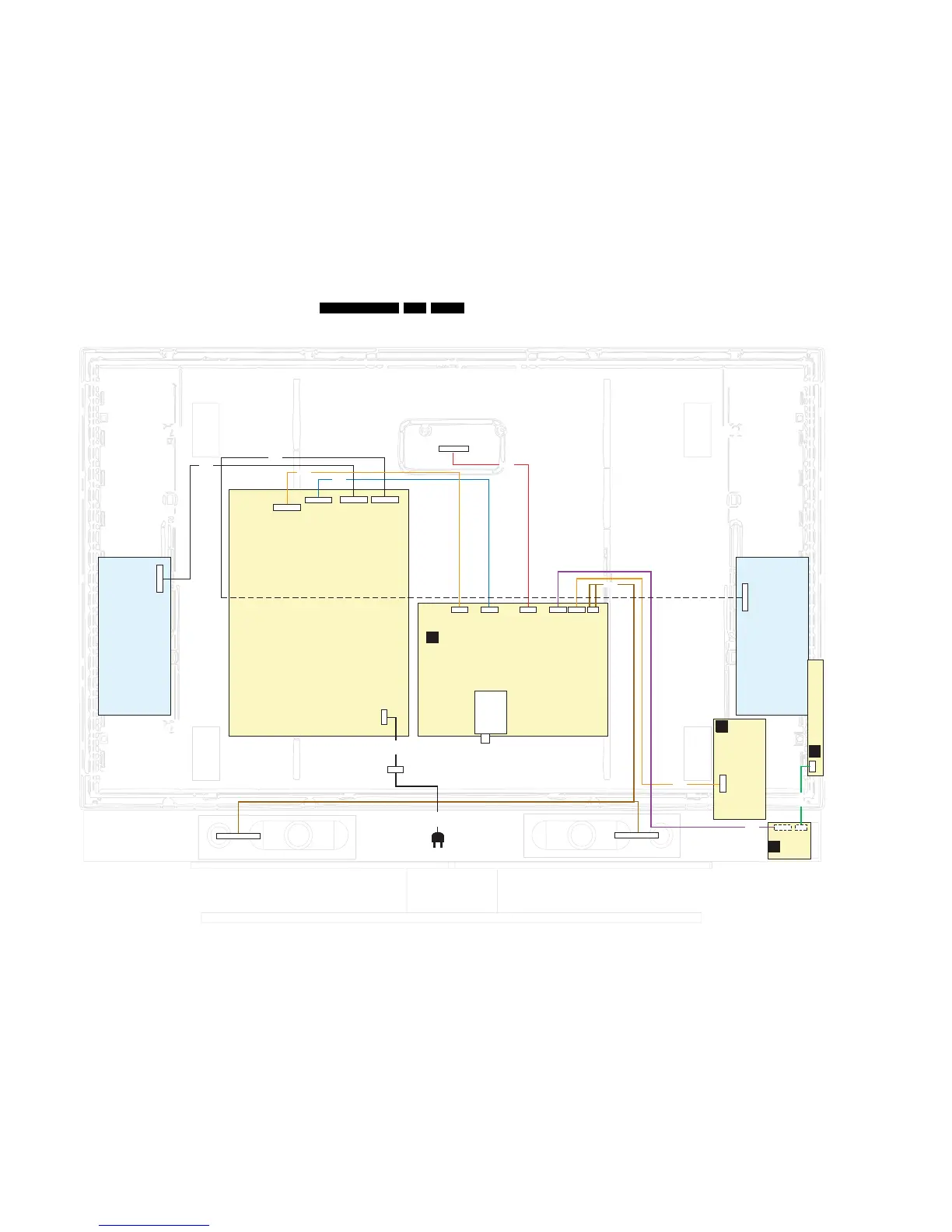

Philips LC7.1E LA - Wiring Diagram 37-42

28LC7.1E LA 6.
Block Diagrams, Test Point Overview, and Waveforms
Block Diagram Supply
CN1
CN2
DISPLAY SUPPLY
1. +24V
2. +24V
3. +24V
4. +24V
5. +24V
6. GND
7. GND
8. GND
9. GND
10. GND
11. DIM
12. BL-ON
13. PWM
14. N.C.
PRIMARY SIDE
AC-IN
SUPPLY 26”- 32” LCD
G_16860_035.eps
180707
CN3
DISPLAY SUPPLY
1. +24V
2. +24V
3. +24V
4. +24V
5. +24V
6. GND
7. GND
8. GND
9. GND
10. GND
11. N.C.
12. N.C.
SECONDARY SIDE
CN6
CONTROL:
1. BL-DIM
2. PG
3. BL-ON
4. GND
5. N.C.
6. PSON
7. N.C.
8. 12V.
CN7
CONTROL:
1. -12VA
2. +12VA
3. GND
4. 5.2VS
5. 5.2VS
6. 5.2VS
7. GND
8. GND.
9. GND
220 - 240V
50/60Hz
