Philips LFH 9600 Quick Reference Guide

52 Beknopte handleiding

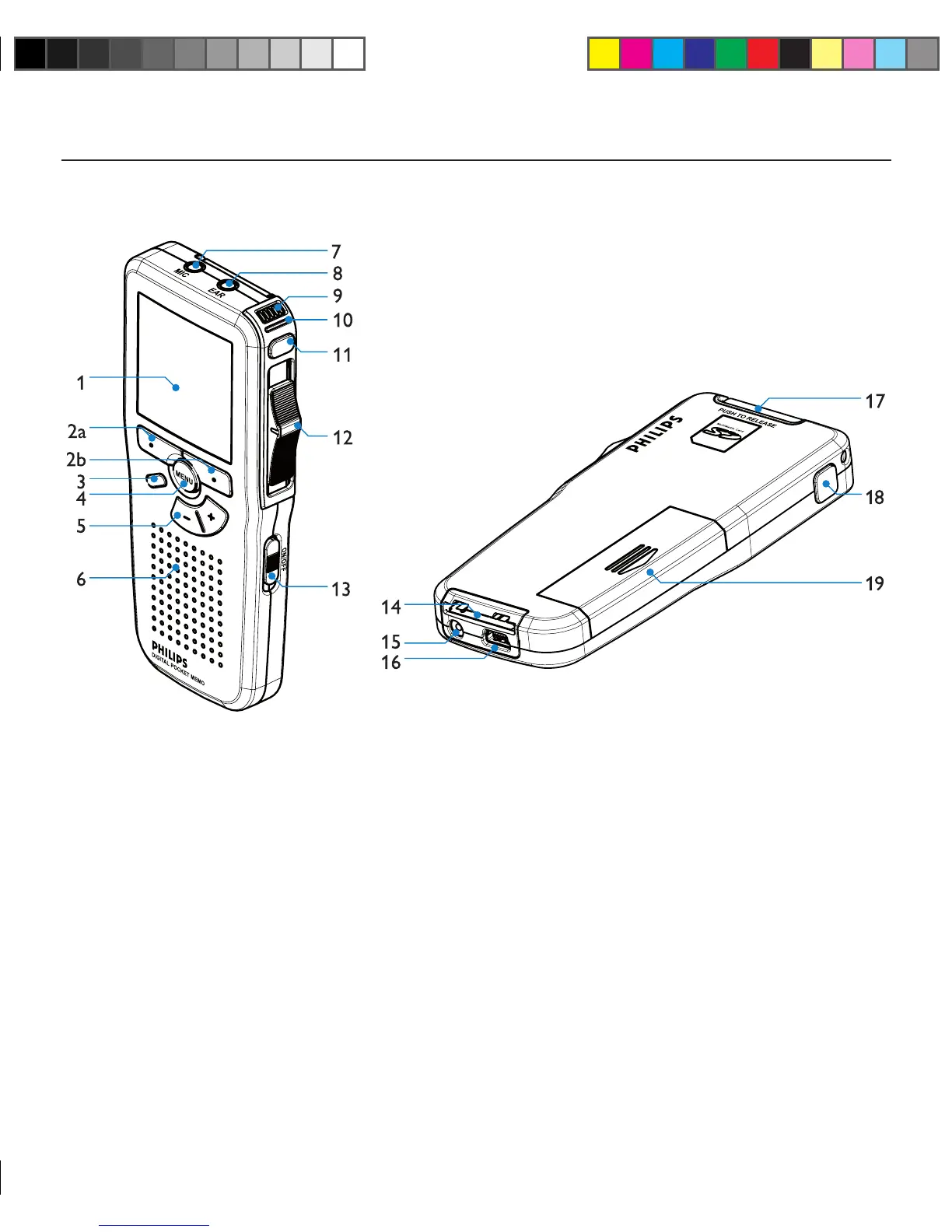

 Overzicht
LCD-scherm
Slimme toetsen (2a en 2b)
Programmeerbare functietoets
Menutoets
Volumebeheersing, plus/min en
menunavigatieknoppen
Luidspreker
Microfoonaansluiting
Oortelefoonaansluiting
Ingebouwde microfoon
Status LED (rood = opnemen, groen =
invoegen, geel = bestandsoverdracht)
1
2
3
4
5
6
7
8
9
10
4-standenschakelaar
Aan/uit-schakelaar
Aansluitsleuf voor het dockingstation
Aansluitsleuf voor de voeding
USB-Aansluitsleuf
Sleuf voor de Secure Digital (SD)/
Multimedia (MMC) kaart en uitbreidsleuf
voor de optische barcode-module
Batterijvak
11
12
13
14
15
16
17
18
19
EOL (end-of-letter/eind-van-de-brief) knop
Snel vooruitspoelen knop
9600_qrg_20070108.indb 52 22/02/2007 14:33:07

Philips LFH 9600 Specifications

Connectivity

docking connector	8-pin female
USB	Mini USB 2.0 female (full speed, 12 Mbit/s)
DC in voltage	6 V
microphone impedance	2 kΩ
earphone impedance	8 Ω or more

Display

display type	TFT-Transreflective
diagonal screen size	1.71 " / 44 mm
resolution	128 × 128 pixels

Power

power supply	6V DC / 850 mA
power consumption	800 mA maximum
battery type	two Philips AAA Ni-MH rechargeable batteries (LFH 9154) or two AAA batteries (LR03 or R03)
battery life with Philips Ni-MH rechargeable battery	17 hours
battery life with Philips alkaline battery	15 hours
charging time (USB fast charging)	2.5 hours

Recording Specifications

recording format	DSS / DSS Pro (Digital Speech Standard)
memory type	Secure Digital (SD)/ Multimedia Card (MMC) up to 2 GB
recording modes	Quality Play (QP), Standard Play (SP), Long Play mobile (LPm)
recording time with 128 MB card	10.7 / 21.8 / 32.7 hours
recording time with 2 GB card	170 / 349 / 523 hours
sampling frequency (Quality Play mode)	16 kHz
sampling frequency (Standard Play mode)	12 kHz
sampling frequency (Long Play mode)	8 kHz
compression rate (Quality Play mode)	26 kbit/s
compression rate (Standard Play mode)	13.5 kbit/s
compression rate (Long Play mode)	9 kbit/s
frequency response (Quality Play mode)	200 to 7 500 Hz
frequency response (Standard Play mode)	200 to 5 500 Hz
frequency response (Long Play mode)	200 to 3 500 Hz

Speaker

built-in speaker	30 mm round dynamic speaker
output power	200 mW

Operating Environment

operating temperature	5° - 45° Celsius / 41° - 113° Fahrenheit
humidity	10 % - 90 %

Weight and Dimensions

product dimensions (W x D x H)	50 x 116 x 17 mm / 2.0 x 4.6 x 0.7 inch
weight	106 g / 3.7 oz, including two Philips AAA Ni-MH rechargeable batteries (LFH 9154)
