Connections
Step 4: Connecting TV
IMPORTANT!
– You only need to make one video
connection from the following
options, depending on the
capabilities of your TV system.
– Connect the DVD system directly
to the TV.
– Scart Video connection provides
higher picture quality and S-Video
connection provides better picture
quality. These options must be
available on your TV.
1 To hear the TV channels through this
DVD system, use the audio cables (white/
red) to connect TV IN (L/R) jacks to the
corresponding AUDIO OUT jacks on the
TV.

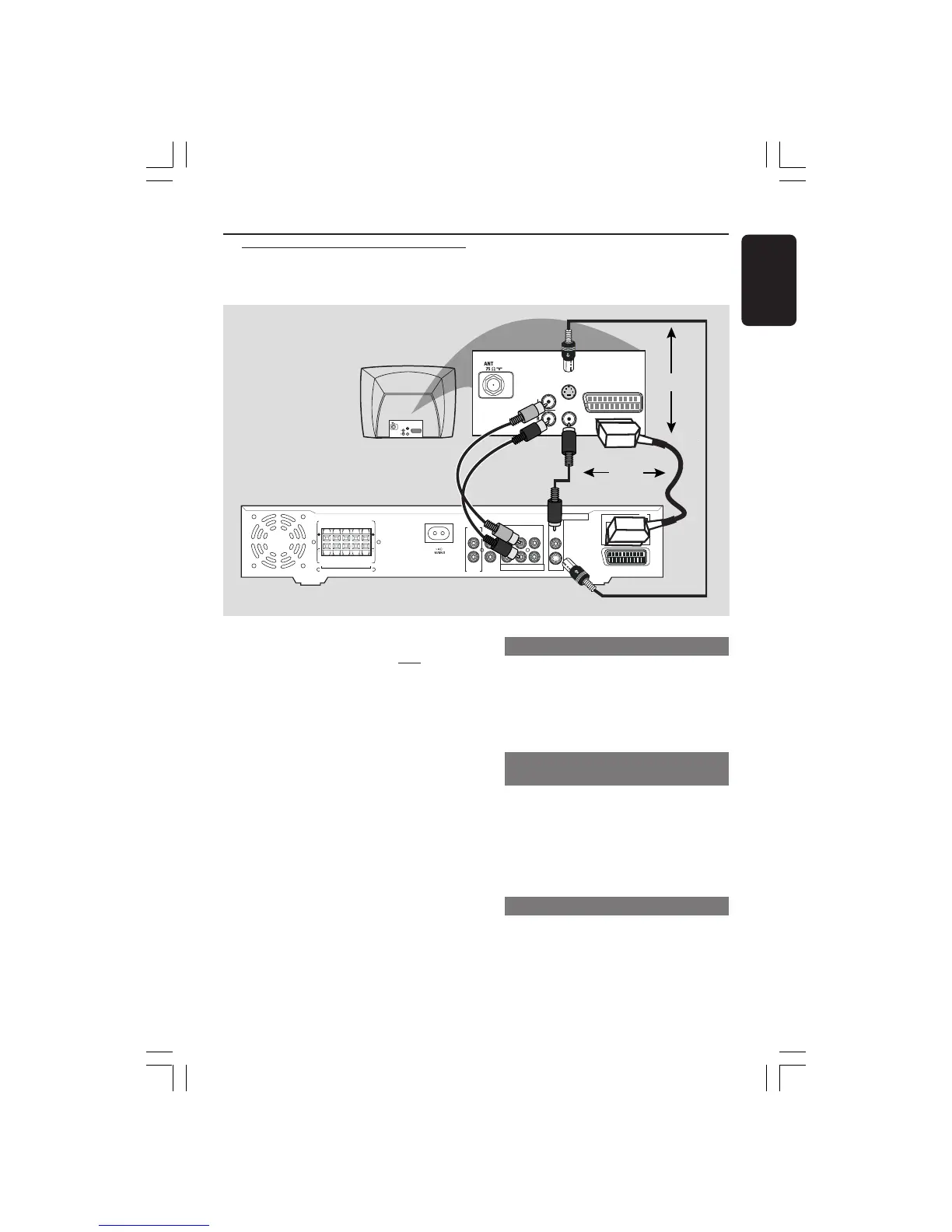

Using Scart jack
2 Use the scart video cable (black) to
connect the DVD system’s SCART
OUT jack to the corresponding Scart
input jacks on the TV.
OR
Using Composite Video jack
(CVBS)
2 Use the composite video cable (yellow -
not supplied) to connect the DVD
system’s CVBS jack to the video input
jack (or labelled as A/V In, Video In,
Composite or Baseband) on the TV.
OR
Using S-Video jack
2 Use the S-video cable (not supplied) to
connect the DVD system’s S-VIDEO
OUT jack to the S-Video input jack (or
labelled as Y/C or S-VHS) on the TV.
LCRSLSR
+
+
MW
FM/MW
ANTENNA
FM 75 Ω
SCART OUT
S-VIDEO
CVBS
VIDEO OUT
AUDIO
AUX
IN
TV
IN
LINE
OUT
DIGITAL
OUT
CENTER
OUT
DIGITAL
IN
WOOFER
LINE OUT
SURROUNDFRONT CENTER
SPEAKER SYSTEMS (8 Ω )
CDR
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
SCART IN
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
SCART IN
OR
OR
12
2
2
