EN 807.LX9000RCircuit Diagrams and PWB Layouts

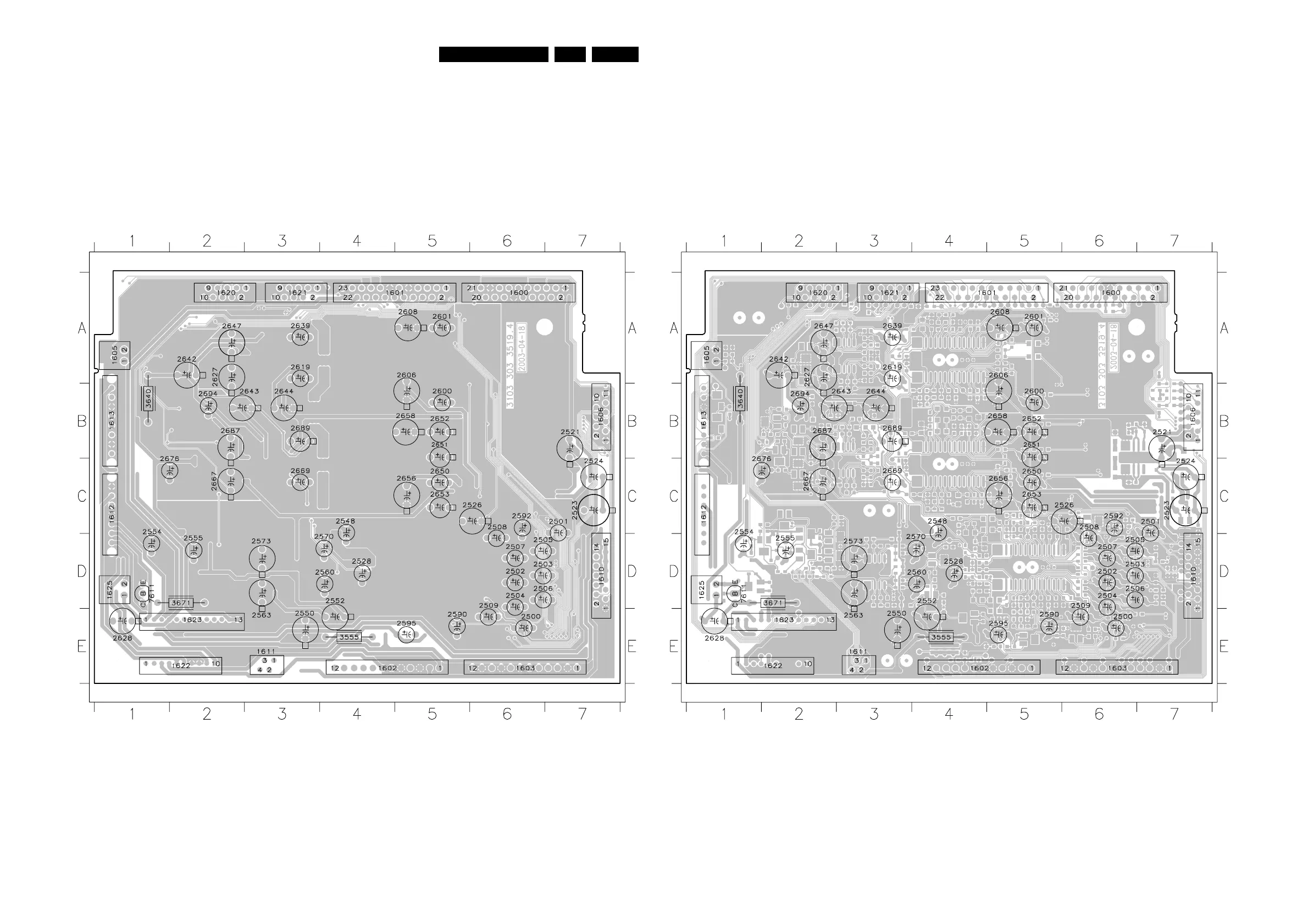

ASP board LX9000R, 020703
ASP BOARD/ componentside view (with copper pattern component side)
1600 A6
1601 A5
1602 E4
1603 E6
1605 A1
1606 B7
1610 D7
1611 E2
1612 C1
1613 B1
1620 A2
1621 A3
1622 E2
1623 E2
1625 D1
2500 E6
2501 C7
2502 D6
2503 D6
2504 D6
2505 D6
2506 E6
2507 D6
2508 C6
2509 D6
2521 B7
2523 C7
2524 C7
2526 C6
2528 D4
2548 C4
2550 E3
2552 D4
2554 D1
2555 D2
2560 D3
2563 D3
2570 D3
2573 D3
2590 E5
2592 C6
2595 E5
2600 B5
2601 A5
2606 B5
2608 A5
2619 A3
2627 A2
2628 E1
2639 A3
2642 A2
2643 B3
2644 B3
2647 A2
2650 C5
2651 B5
2652 B5
2653 C5
2656 C5
2658 B5
2667 C2
2669 C3
2676 C1
2687 B2
2689 B3
2694 B2
3555 E4
3640 B1
3671 D2
7611 D1
MDM BOARD 1803
CONTROL BOARD 1401CONTROL BOARD 1402AMPLIFIER BOARD 1303AMPLIFIER BOARD 1301
MDM BOARD 1802KEY BOARD right 1417POWER SUPPLY BOARD secondary 1207
POWER SUPPLY BOARD secondary 1208
A/V BOARD 1934
AUDIO TUNERAUXILIARY BOARD 1903
A/V BOARD 1935
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram respectively partslist.
1178
ASP board LX9000R, 020703
ASP BOARD/ componentside view (with copper pattern SMD side)
MDM BOARD 1803
CONTROL BOARD 1401CONTROL BOARD 1402AMPLIFIER BOARD 1303AMPLIFIER BOARD 1301
MDM BOARD 1802KEY BOARD right 1417POWER SUPPLY BOARD secondary 1207
POWER SUPPLY BOARD secondary 1208
A/V BOARD 1934
AUDIO TUNERAUXILIARY BOARD 1903
A/V BOARD 1935
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram respectively partslist.
1178

Philips LX9000R Specifications

Picture/Display

A/D converter	10 bit, 54 MHz
Aspect ratio	4:3, 16:9
D/A converter	10 bit, 54 MHz

Sound

A/D converter	24 bit, 96 kHz
D/A converter	24 bit, 96 kHz
Distortion and Noise (1kHz)	90 dB
Frequency response	30-20000 Hz
Signal to noise ratio	>100 dB (A-weighted)
Total Sound Power (RMS)	450 W

Loudspeakers

Satellite speaker frequency range	120-20000 Hz
Satellite speaker impedance	4 ohm
Center speaker frequency range	120-20000 Hz
Center speaker impedance	4 ohm
Subwoofer frequency range	30-120 Hz
Subwoofer impedance	8 ohm

Video Playback

Compression formats	MPEG1, MPEG2
Playback Media	DVD+RW, DVD+R, DVD-RW (Video mode), DVD-R, DVD-Video, SVCD, Video CD
Video disc playback system	NTSC, PAL

Video Recording

Audio compression	Dolby Digital
Compression formats	MPEG2
Max recording time on DVD	8 hr
Recording system	NTSC, PAL

Audio Playback

Compression format	Dolby Digital, DTS, MP3, MPEG2 Multichannel, PCM
Playback Media	CD, CD-R, CD-RW, MP3-CD
MP3 bit rates	32-320 kbps and VBR

Storage Media

Disc capacity	4.7 GB
Recording media	DVD+R, DVD+RW
Recording speed	M1, M2, M2x, M3, M4, M6, M8

Tuner/Reception/Transmission

Aerial Input	75 ohm coaxial (IEC75)
Number of Preset Channels	40
Tuner Bands	FM Stereo, MW

Power

Power supply	200-240 V, 50/60 Hz
Standby power consumption	< 2 W
