Philips MBD3000/93 - PCB Locations; General Specifications; Radio Specifications; Connectivity Specifications

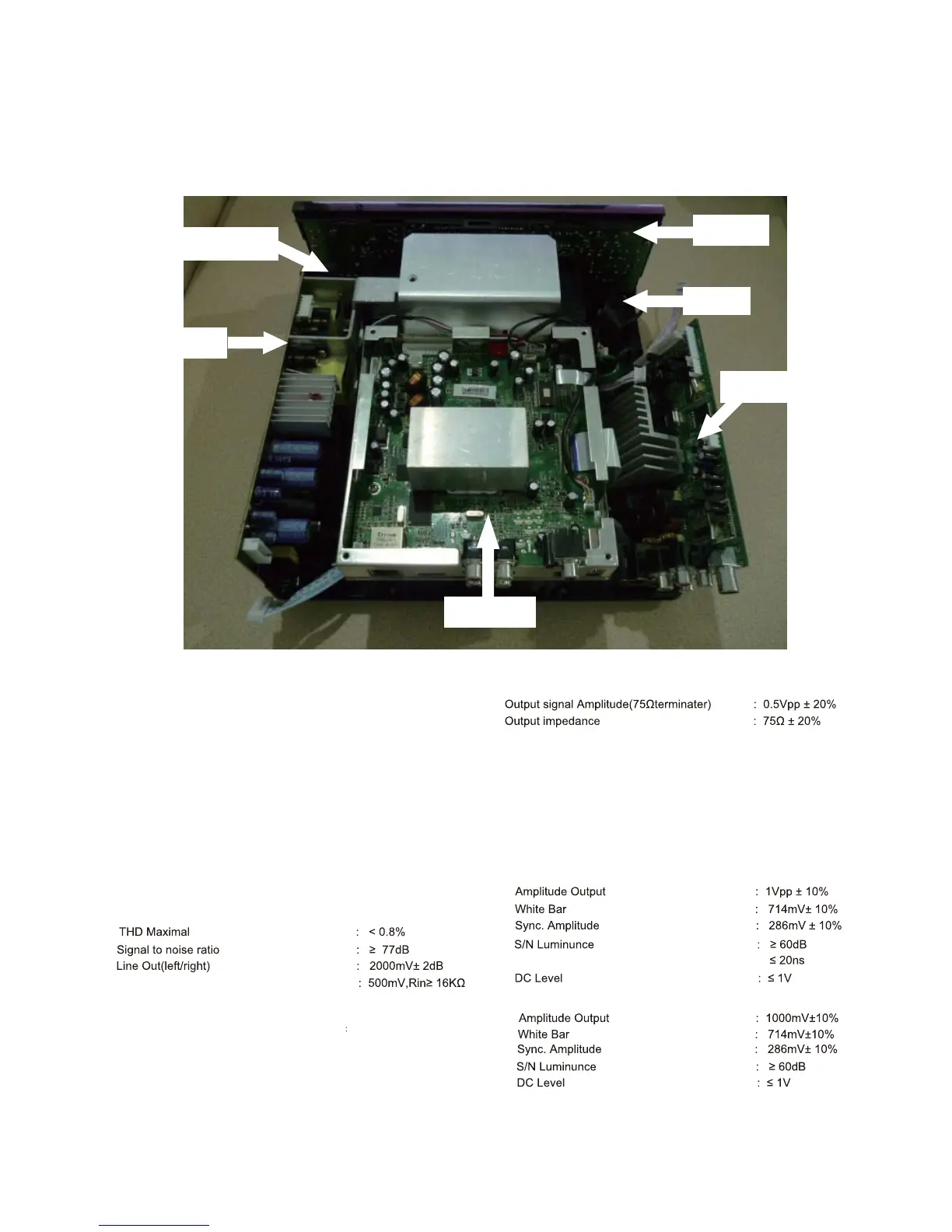

1.1 PCB Locations
1-1
Technical Specification and Connection Facilities
1. Technical Specification and Connection Facilities
VFD Display
Board
USB Board
Power Board
Decoder Board
Headphone Board
MCU and AMP Board
1.2 General
Power supply : 110-240V, 50Hz~60Hz
Power consumption : 50W
Standby power consumption : < 0.5 W
Signal system :PAL/NTSC
HDMI output :480p,576p,720p,1080i,
1080p,1080p24
Video output :480/576i,480/576p,
720p,1080i
Video Supporting Format
1.4 Connectivity
Audio Performance
HUM : 150nW
MP3_link(front)
DC Output voltage : < 0.05V
Acoustical noise/hum : 26dB
1.3 Radio
Tuning range : 87.5~108MHz
Signal to noise ration : >55dB
Search selectivity : > 28dBf
Tuning Grid : 50KHz
Distortion : <1%
Digital Audio Outputs
Coaxial
LPCM
according IEC 60958-3
MPEG 1, MPEG 2, AC3 ：according IEC 61937
DTS ：according IEC 61937 +
addendum
CVBS Output Component
Chroma / Luminunce Delay(2T pulse) ：
Video Output Component
