Philips MCD109/98 - Pcb Layout -Amplifier Board

7-3 7-3

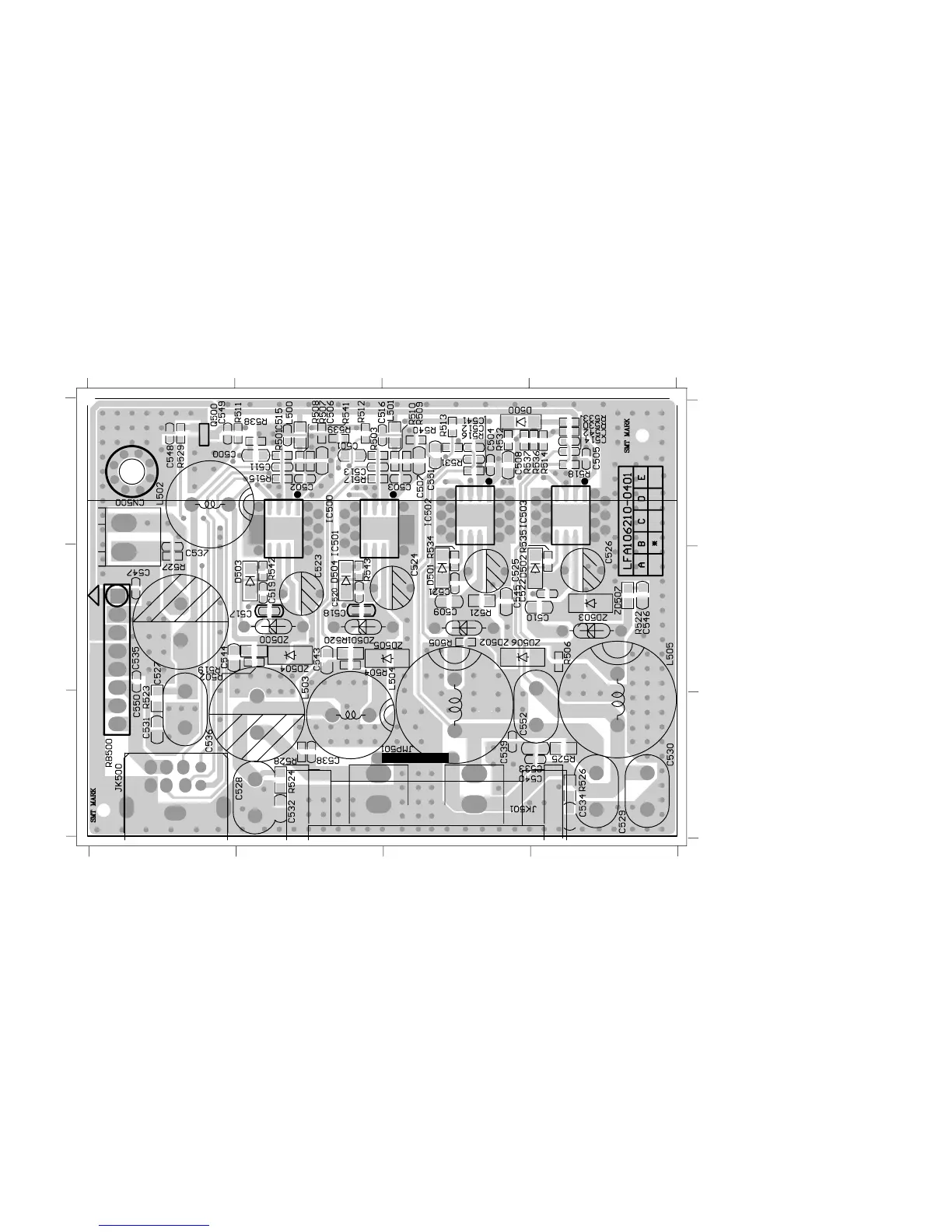

PCB LAYOUT -AMPLIFIER BOARD
ACBD
1
2
3
ACBD
1
2
3
C500 A1 C542 D1 R512 B1
C501 B1 C543 B2 R513 C1
C502 B1 C544 A2 R514 D1
C503 C1 C545 C2 R515 B1
C504 C1 C546 D2 R516 C1
C505 D1 C547 A2 R517 B1
C506 B1 C548 A1 R518 D1
C507 C1 C549 A1 R519 A2
C508 C1 C550 A3 R520 B2
C509 C2 C551 C1 R521 C2
C510 D2 C552 C3 R522 D2
C511 B1 CN500 A1 R523 A3
C512 C1 D500 C1 R524 B3
C513 B1 D501 C2 R525 D3
C514 D1 D502 C2 R526 D3
C515 B1 D503 B2 R527 A2
C516 C1 D504 B2 R528 B3
C517 B2 IC500 B1 R529 A1
C518 B2 IC501 B1 R530 D1
C519 B2 IC502 C1 R531 C1
C520 B2 IC503 C1 R532 C1
C521 C2 JK500 A3 R533 D1
C522 C2 JK501 C3 R534 C2
C523 B2 JMP501 C3 R535 C2
C524 C2 L500 B1 R536 D1
C525 C2 L501 C1 R537 C1
C526 D2 L502 A1 R538 B1
C527 A2 L503 B3 R539 B1
C528 B3 L504 C2 R540 C1
C529 D3 L505 D2 R541 B1
C530 D3 Q500 A1 R542 B2
C531 A3 R501 B1 R543 B2
C532 B3 R502 A2 RB500 A3
C533 D3 R503 B1 ZD500 B2
C534 D3 R504 C2 ZD501 B2
C535 A2 R505 C2 ZD502 C2
C536 A3 R506 D2 ZD503 D2
C537 A2 R507 B1 ZD504 B2
C538 B3 R508 B1 ZD505 C2
C539 C3 R509 C1 ZD506 C2
C540 D3 R510 C1 ZD507 D2
C541 C1 R511 B1
